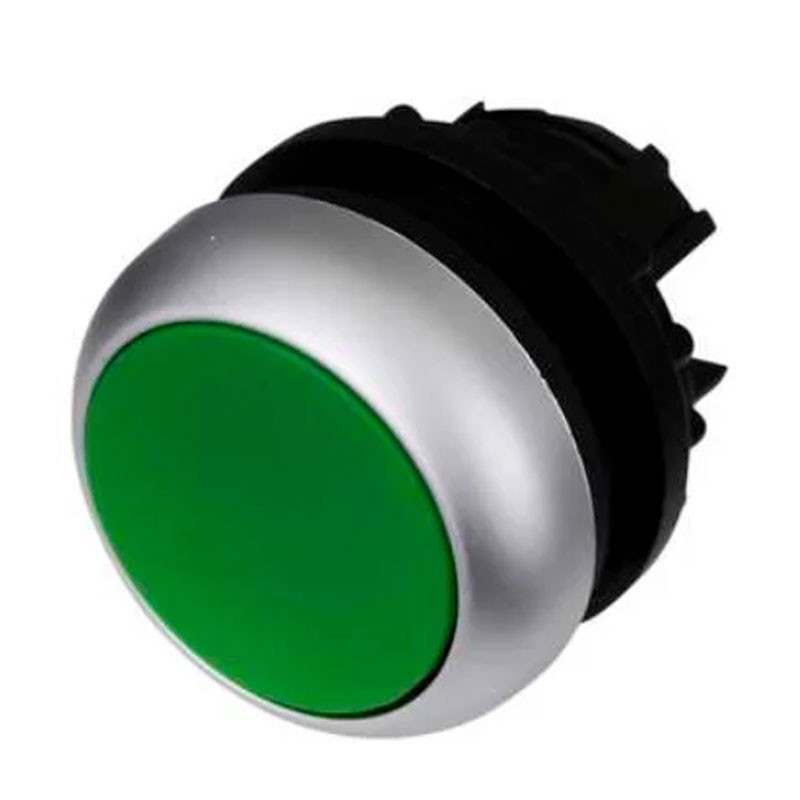

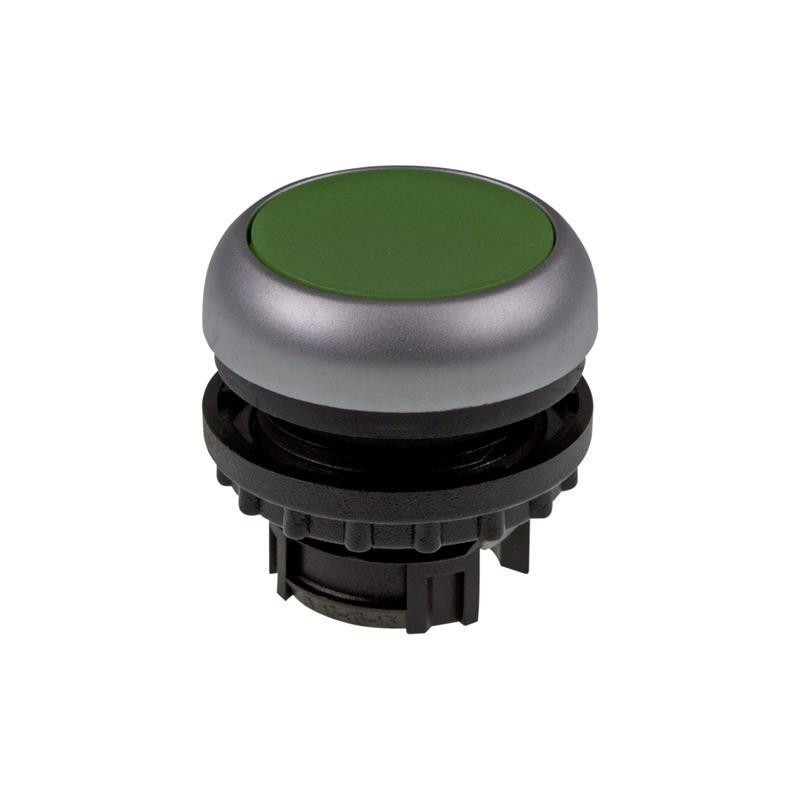

Eaton M22-D-G Green Momentary Pushbutton Actuator 216596

Eaton
EAO 216596 4015082165963

Eaton M22-D-G Pushbutton Actuator, with the following features:

  • Mounting hole diameter: 22.5mm
  • Capsule color: green
  • Button color: green
  • Number of control points 1
  • Lens shape: round
  • Not illuminable
  • IP degree of protection, front side IP67/IP69K
  • Compliance with standards: IEC/EN 60947 VDE 0660
  • Mechanical endurance [maneuvers]: >5 x106
  • Maneuvering frequency [man/h]: ≦ 3600
  • Actuating force: ≦ 5 NET
Do you have questions about this product or did you not find what you were looking for? Ask us!

Eaton M22-D-G Green Momentary Pushbutton Actuator 216596

€6.82
€6.82

Eaton M22-D-G Green Momentary Pushbutton Actuator 216596

€6.82
Tax included
Items Available: 11
Further availability of the manufacturer

Eaton M22-D-G Green Momentary Pushbutton Actuator 216596

€6.82

Buy it within and receive it from Wednesday, 13 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical characteristics:

  • Suitability for climates: Damp heat, constant, according to IEC 60068-2-78, Damp heat, cyclic according to IEC 60068-2-30
  • Ambient temperature during daytime: -25/+70 °C
  • Storage ambient temperature: -40/+80 °C
  • Mounting position: optional
  • Shock resistance: 30 - Shock duration 11 ms half-wave according to IEC 60068-2-27 g
  • Rated use current for dissipation data: 0A
  • Material of front ring: plastic
  • Color of front ring: titanium
  • NEMA type of protection, front side: 4X

There are no reviews

Data sheet

Type:
Buttons
Degree of protection:
IP67
