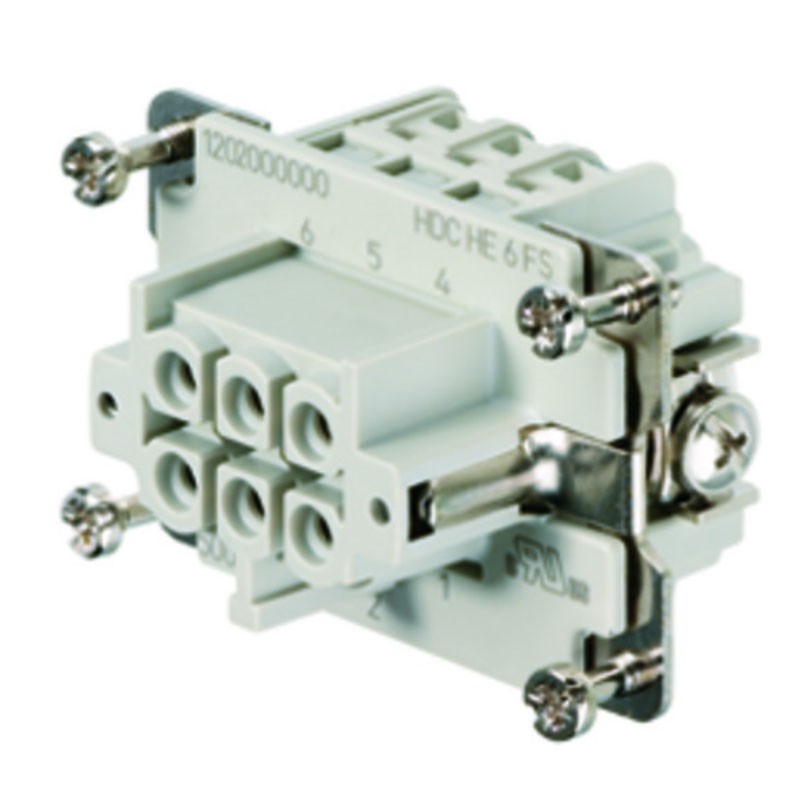

Weidmuller HDC female insert connector 6P+E 24A 500V 1200200000
WEI 1200200000
4008190140021
Weidmuller female insert connector type HDC HE 6 FS, with the following characteristics:
- Temperature limit values: -40/+125 °C
- BG 3
- UL 94 flammability class: V-0
- Max. tightening torque main contact: 0.55 Nm
- Main contact min. tightening torque: 0.5 Nm
- Sizing current (DIN EN 61984): 24 A
- Degree of roughness: 3
- Size: 3
- Insulating material group: IIIa
- Material: copper alloy
Weidmuller HDC female insert connector 6P+E 24A 500V 1200200000
€3.39
€3.39
Tax included
Tax included
Items Available: 95
: 10

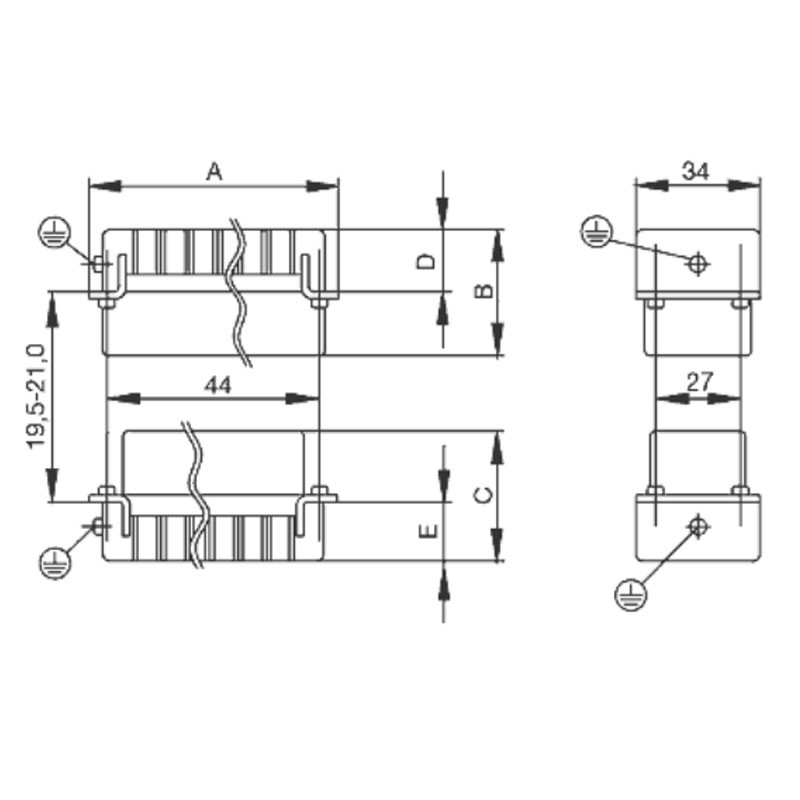

Dimensions and weights:
- Depth 51 mm
- Depth (inches) 2.008 inch
- Vertical position 35.2 mm
- Height (inches) 1.386 inch
- Width 34 mm
- Width (inches) 1.339 inch
- Net weight 50 grams
PE connection data:
- Tightening torque, max. PE connection 1.5 Nm
- Tightening torque, min. PE connection 1.2 Nm
- Blade size (shear) (PE connection) SD 0.8 x 4.0
- Stripping length, PE connection 10 mm
- Cable connection cross section AWG (PE), max. AWG 12
- Cable connection cross section AWG (PE), min. AWG 20
- Sizing cross section 4 mm²
- PE connection type Screw connection
- Fastening screw M 4
Other technical features:
- Insulation material: glass-fiber reinforced PC (UL listed and qualified for railway industry)
- Number of poles: 6
- Resistance against insulation: 1010 Ω
- Pass resistance: ≤2 mΩ
- Series: HE
- Cable connection cross section: 2.5 mm²
- Surface: silver passivated
- Sizing voltage (DIN EN 61984): 500V
- Sizing voltage according to UL/CSA: 600V AC/DC
- Rated impulse voltage (DIN EN 61984) 6 kV
- Type: female
- Ag engagement cycles: ≥ 500
Execution:
- BG 3
- Main contact max. tightening torque 0.55 Nm
- Min. tightening torque main contact 0.5 Nm
- Blade size Gr. PH1
- Blade size (shear) (screw connection) SD 0.6 x 3.5
- Size 3
- Stripping length, sizing connection 9 mm
- Material Copper alloy
- Pass resistance ≤2 mΩ
- AWG cable connection cross section, max AWG 14
- Cable connection cross section AWG, min AWG 20
- Cable connection cross section, flexible with DIN 46228/4 terminals, max 2.5 mm²
- Cable connection cross section, flexible with terminals DIN 46228/4, min 0.5 mm²
- Cable connection cross section, flexible, max. 2.5 mm²
- Cable connection cross section, flexible, min. 0.5 mm²
- Cable connection cross section, max. 2.5 mm²
- Cable connection cross section, min. 0.5 mm²
- Cable connection cross section, rigid, max. 2.5 mm²
- Cable connection cross section, rigid, min. 0.5 mm²
- Surface: silver passivated
- Type of connection: Screw connection
- Clamping screw M 3
There are no reviews
Data sheet
- Type:
- Connectors
- Voltage:
- 500V
- Amps:
- 24A
