Siemens Cpu SIMATIC 1214C 6ES72141HG400XB0
SIE 6ES72141HG400XB0
4047623402732
Siemens SIMATIC S7-1200 compact CPU - CPU 1214C DC/DC/relay, with the following features:
- Engineering with: programming package from STEP 7 V17
- Rated value: DC 24V
- Allowable range, lower limit (DC) 20.4V
- Allowable range, upper limit (DC) 28.8V
- Reverse polarity protection Yes
- Load voltage L+: Rated value (DC) 24V - Allowable range, lower limit (DC) 20.4V - Allowable range, upper limit (DC) 28.8V
- Current consumption (nominal value): 500 mA; CPU only
- Current consumption, max: 12 A; at 28.8 V - I²t 0.8 A²-s
- Output current for backplane bus (DC 5 V), max: 1 600 mA; max. DC 5 V for SM and CM
- 24V transducer power supply - 24 V L+ min 4 V DC min
- Power dissipation, typ: 12W
- Number of digital relay outputs: 10
- Number of analog inputs 2
- Number of analog outputs: 0
![](https://www.elettronew.com/53275-large_default/cpu-siemens-simatic-1214c-6es72141hg400xb0.jpg)

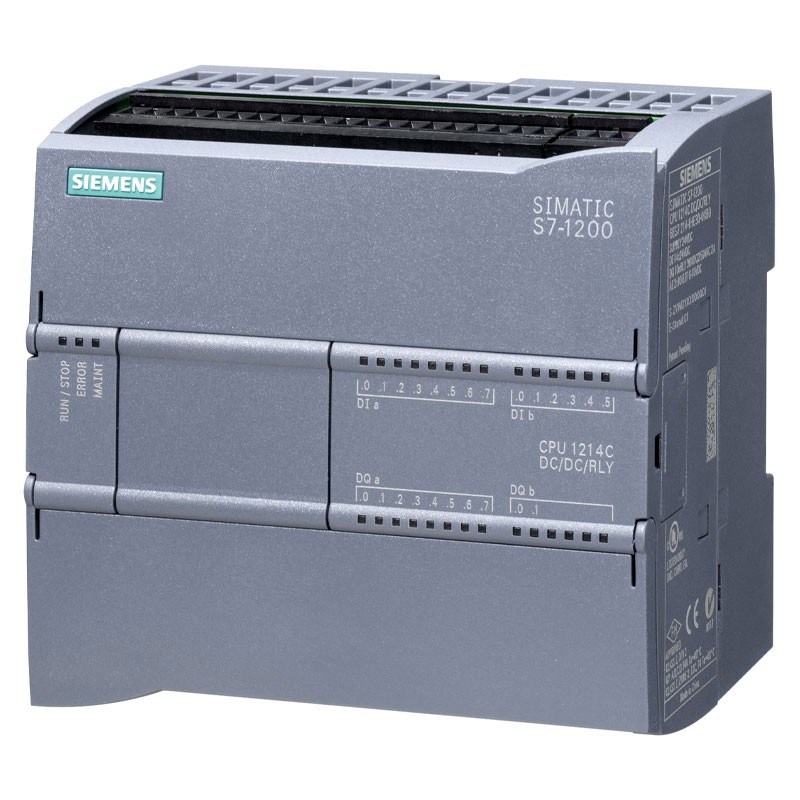

Siemens Cpu SIMATIC 1214C 6ES72141HG400XB0
€499.69
€499.69
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 104
Other technical features:
- Working memory: built-in 100 kbytes (Not expandable)
- Loading memory: built-in 4 Mbytes - insertable (SIMATIC Memory Card), max with SIMATIC Memory Card
- Degree of protection IP20
- Free fall: Drop height, max. 0.3 m; five times, in shipping carton
- Dimensions: Width 110 mm, Height 100 mm, Depth 75 mm
- Weight: 435 grams
Data sheet
- Type:
- CPU Central Units
- Voltage:
- 24V
