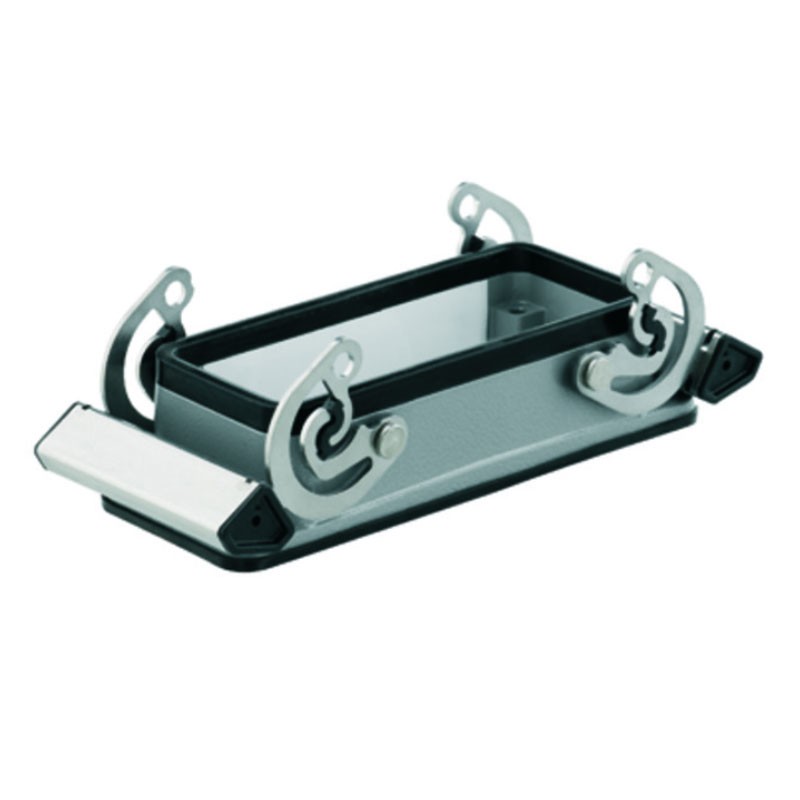

Weidmuller case base through-hole 16P with cross hook 1208600000
WEI 1208600000
4008190881351
Weidmuller housing, with the following characteristics:
- Temperature limit: -40 °C/+125 °C
- EMC housings: no
- Main housing material: die-cast aluminum
- Material of the enclosure element: stainless steel, rustproof
- Degree of protection IP65 (in connected state)
- Surface finish: powder coating
- BG: 6
- Clamp version: side locking clamp
- Color (RAL) 7035
Weidmuller case base through-hole 16P with cross hook 1208600000
€10.74
€10.74
Tax included
Tax included
Items Available: 376
: 36
Please note: When mounting the housings, make sure the flat gasket is properly seated.
Other technical features:
- Design: standard
- Housing design: bulkhead housing
- Closure system design: side locking clamp on the bottom side, Non-replaceable side locking clamp
- Sealing: NBR
- Measure: 6
- Suitable for ModuPlug ®: YES
- Top part/bottom part/cover: bottom part
- Type: bulkhead (through-hole)
- ROHS: compliant
- UL file number lookup: E92202
Dimensions and weight:
- Height 29 mm
- Height (inches) 1.142 inches
- Width 55 mm
- Width (inches) 2.165 inches
- Mounting dimension - height 32 mm
- Mounting dimension - width 103 mm
- Net weight: 159 grams
Dimensions:
- B1 base height 5.3 mm
- Height of housing B 29 mm
- Hole pitch length A2 103 mm
- Housing total length 93.3 mm
- Base width C1 47 mm
- Housing width C 43 mm
