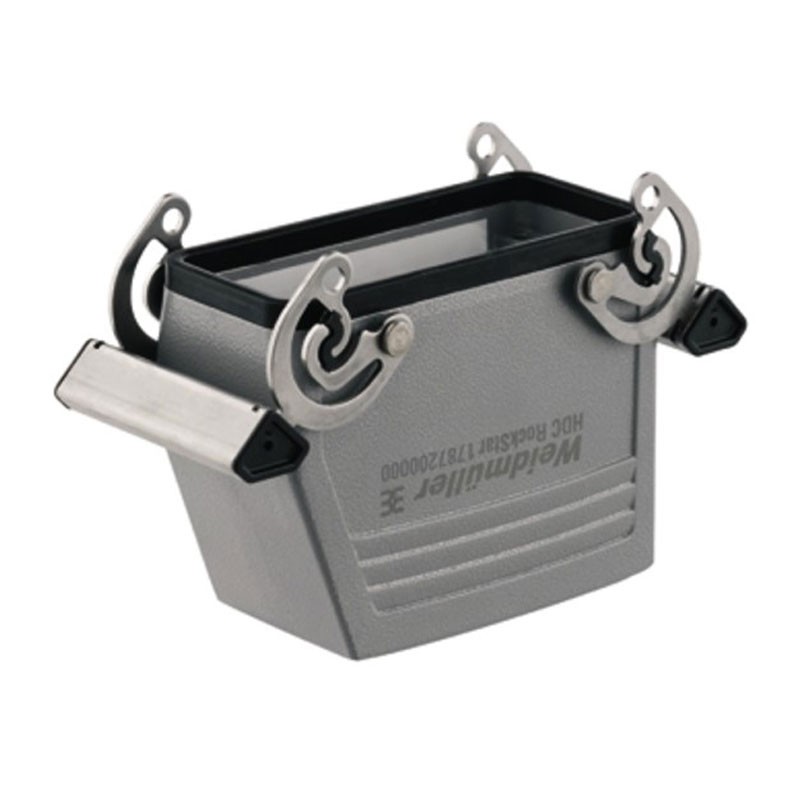

Weidmuller Case Closed Base 16P with Cable Hook 1PG21 1656720000
WEI 1656720000
4008190409739
Weidmuller base enclosure Closed 16P, with the following characteristics:
- Temperature limit: -40 °C/+125 °C
- EMC housings: no
- Main housing material die-cast aluminum
- Material of the locking element: stainless steel, rustproof
- Degree of protection IP65 (in connected state)
- Surface finish: powder coating
- BG 6
- Cable entry: w. thread
- Clamp version: side locking clamp
- Color (RAL) 7035
- Standard design
Weidmuller Case Closed Base 16P with Cable Hook 1PG21 1656720000
€17.61
€17.61
Tax included
Tax included
Items Available: 1
Other technical features:
- ROHS: compliant
- UL file number lookup: E92202
- Housing design: basic housing
- Locking system design: side locking clamp on the bottom side
- Internal threading: PG 21
- Number of cable entries on top 0
- Number of cable entries laterally 1
- NBR sealing
- Measure 6
- Dimensions of cable entries PG 21
- Suitable for ModuPlug ® NO
- Top part/bottom part/cover: bottom part
- Type: base housing
Dimensions and weight:
- Height 64 mm
- Height (inches) 2.52 inches
- Width 56.5 mm
- Width (inches) 2.224 inches
- Mounting dimension - height 45 mm
- Mounting dimension - width 105 mm
- Net weight: 366 grams
Dimensions:
- Cable entry w. thread
- Height of base B1 5 mm
- Height of housing B 64 mm
- Hole pitch length A2 105 mm
- Housing total length 93.3 mm
- Base width C1 56.5 mm
- Housing width C 43 mm
There are no reviews
Data sheet
- Type: Cases
