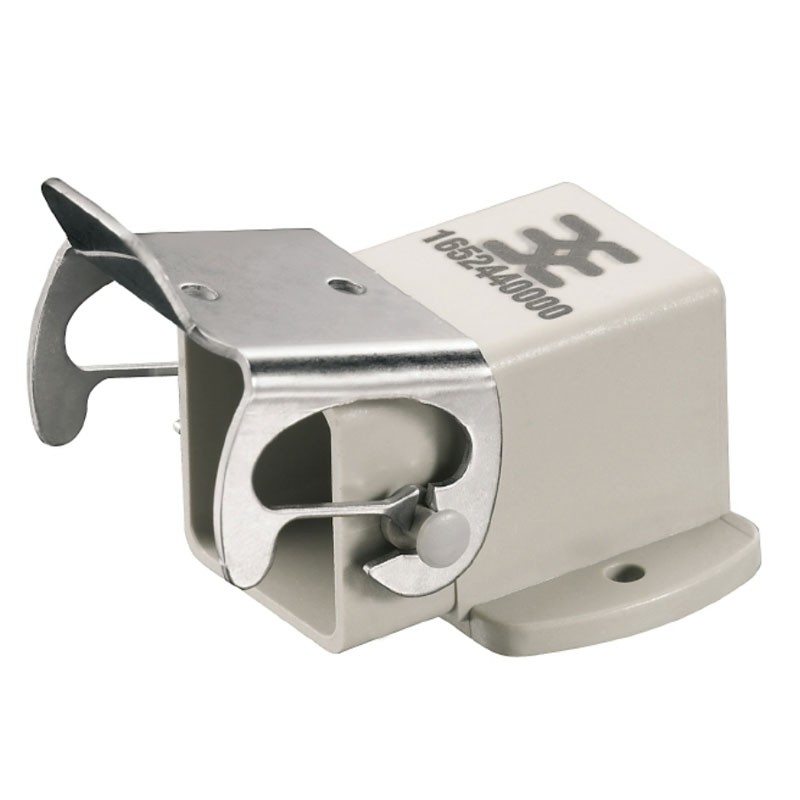

Weidmüller Case Closed Base 4P for PG11 Cables 1652440000
WEI 1652440000
4008190402518
Weidmüller Housing Type HDC 07A SLU 1PG11S, with the following characteristics:
- Temperature limit values: -40/+125 °C
- UL 94 flammability class: V-0
- Tightening torque: 0.5 Nm
- EMC enclosures: No
- Degree of protection: IP65 (in plugged-in condition)
- Housing base material: plastic
- Locking element material: steel, stainless
- Suitable for ModuPlug®: No
- BG 1
- Color (RAL): RAL 1001
- Tightening torque: 0.5 Nm
Weidmüller Case Closed Base 4P for PG11 Cables 1652440000
€3.77
€3.77
Tax included
Tax included
Items Available: 5
: 3
Other technical features:
- Cable entry size: PG 11
- Cable entry: with holders
- Housing execution: basic housing
- Locking system execution Cross hook at bottom
- Thread (internal): PG 11
- Standard Shape
- Size 1
- Number of cable entries at the top 0
- Number of side cable entries 1
- Top part/Bottom part/Lid: bottom part
- Type: basic case
- Hook version: cross hook
- Compliant: ROHS

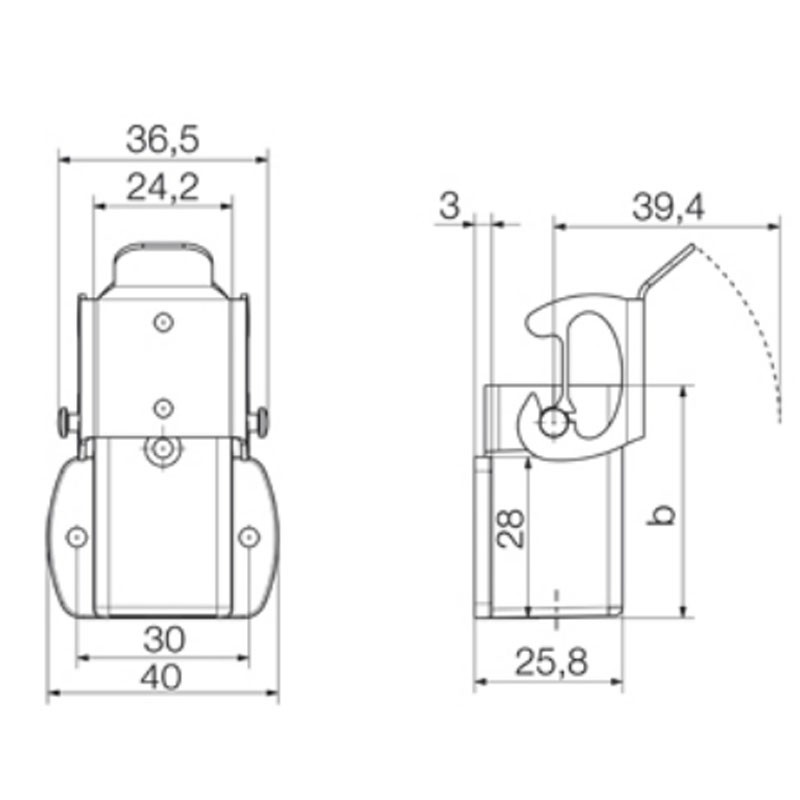

Dimensions and weights:
- Depth 25.8 mm
- Depth (inches) 1.016 inch
- Vertical position 52.8 mm
- Height (inches) 2.079 inch
- Width 36.5 mm
- Width (inches) 1.437 inch
- Fastening width 30 mm
- Net weight 23 grams
There are no reviews
Data sheet
- Type: Cases
