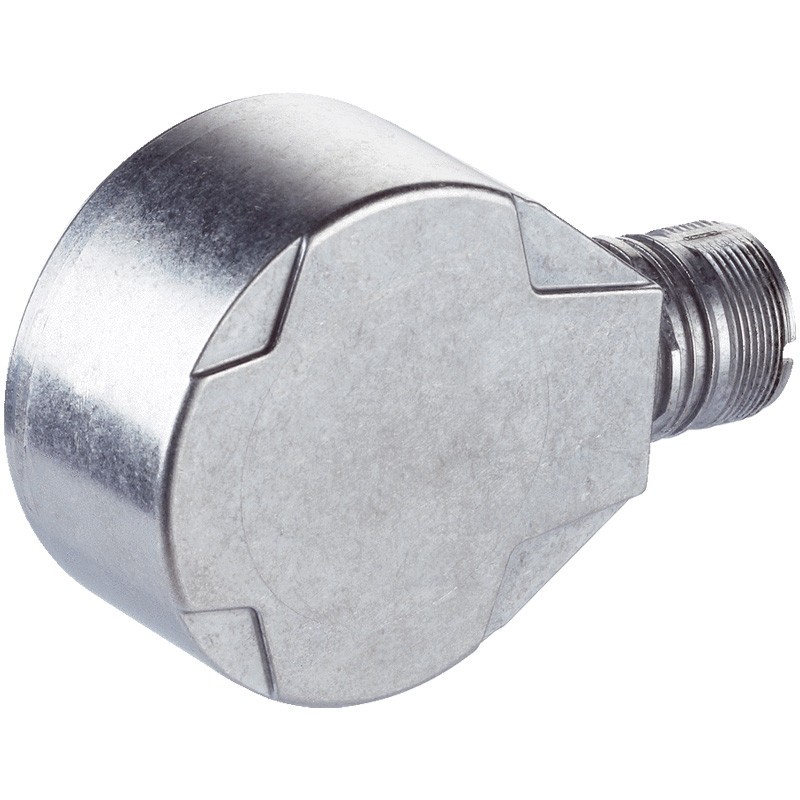

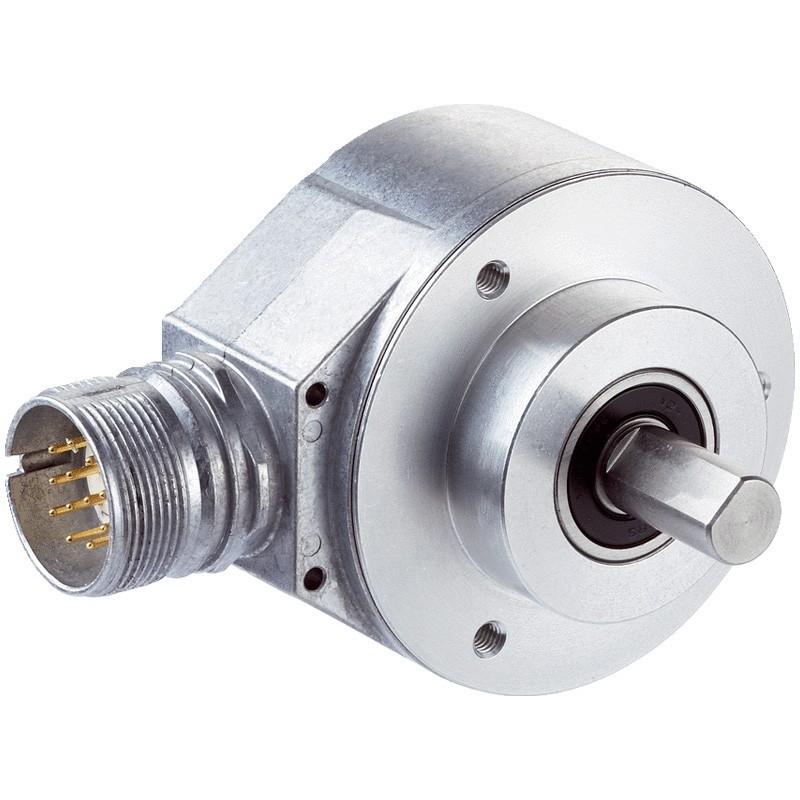

Sick incremental encoder DFS60B-S4PA10000 1036720

Sick
SIK 1036720

Sick incremental encoder type DFS60B-S4PA10000, with the following characteristics:

  • Pulses per rotation 0 ... 65.536
  • Measuring angle 90° electrical/pulses per rotation
  • Measurement step deviation for non-binary pulse numbers± 0.01°
  • Error limits ± 0.05°
  • Incremental Communication Interface
  • Communication interface details TTL / HTL
  • Factory setting Factory side setting TTL output level
  • Number of signal channels 6 channels
  • Programmable/configurable: yes
  • Initialization time 32 ms - 30 ms
  • Output update frequency ≤ 600 kHz
  • Load current ≤ 30 mA
  • Power consumption ≤ 0.7W (no load)
  • Connection type Male connector, M23, 12-pin, radial
  • Supply voltage 4.5 ... 32V
Do you have questions about this product or did you not find what you were looking for? Ask us!

Sick incremental encoder DFS60B-S4PA10000 1036720

€345.67
€345.67

Sick incremental encoder DFS60B-S4PA10000 1036720

€345.67
Tax included
Out of stock
Further availability of the manufacturer
Incoming

Sick incremental encoder DFS60B-S4PA10000 1036720

€345.67

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Reference signal, number 1
  • Reference signal, 90° position, electrical, logically connected with A and B
  • Reverse polarity protection: yes
  • Output short circuit resistance: yes
  • MTTF: time interval until occurrence of dangerous failure: 300 years (EN ISO 13849-1)

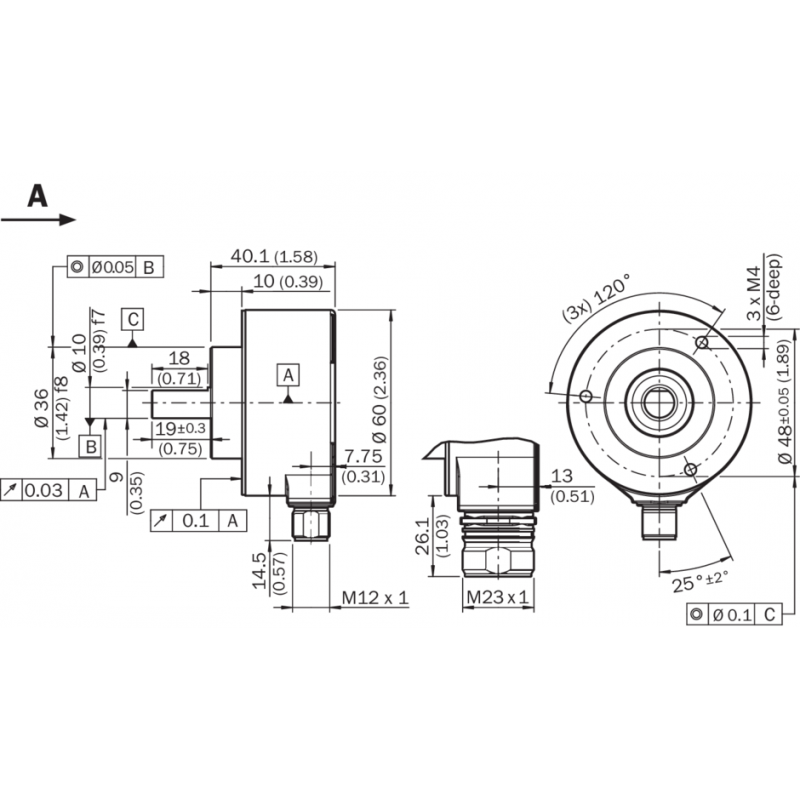

  • Mechanical design Male shaft, fixed flange
  • Shaft diameter 10 mm
  • Shaft length 19 mm
  • Weight 0.3 kg
  • Material, shaft Stainless steel
  • Material, flange Aluminum
  • Material, housing Die-cast aluminum
  • Starting torque 0.5 Ncm (+20 °C)
  • Operating torque 0.3 Ncm (+20 °C)
  • Allowable radial/axial load on shaft: 80 N (radial) - 40 N (axial)
  • Operating speed ≤ 9,000minute
  • Rotor moment of inertia 6.2 gcm²
  • Bearing life 3.6 x 10^10 rotations
  • Angular acceleration ≤ 500,000 rad/s²
  • EMC: in accordance with EN 61000-6-2 and EN 61000-6-3
  • Degree of protection IP67, housing side, male connector (to IEC 60529) - IP65, shaft side (to IEC 60529)
  • Allowable relative air humidity 90 % (Optical sampling condensation not allowed)
  • Operating temperature range -40/+100 °C (with fixed cable laying), -30/+100 °C (With movable cable laying)
  • Storage temperature range: -40/+100 °C, without packaging
  • Shock resistance 70 g, 6 ms (in accordance with EN 60068-2-27)
  • Vibration resistance 30 g, 10 Hz ... 2,000 Hz (in accordance with EN 60068-2-6)
