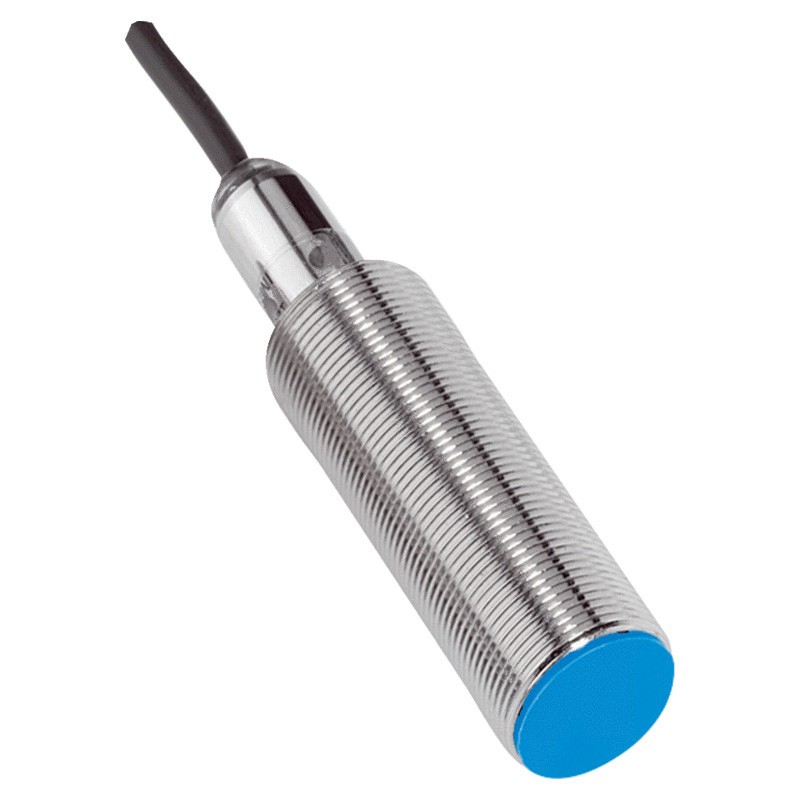

Sick IME18 inductive proximity sensor with cable 1040968

Sick IME18 inductive proximity sensor with cable 1040968


SIK 1040968

Sick IME 18 inductive proximity sensor with the following features:

  • Supply voltage: 10 V DC ... 30 V DC
  • Ripple ≤ 10 %
  • Voltage drop ≤ 2V
  • Availability delay ≤ 100 ms
  • Hysteresis 5 % ... 15 %
  • Reproducibility ≤ 2 %
  • Thermal drift (d Sr) ± 10 %
  • EMC according to EN 60947-5-2
  • Continuous current IA ≤ 200 Ma
  • No load current: ≤ 10 mA
  • No load current: ≤ 10 mA
  • Cable material: PVC
  • Conductor size: 0.25 mm²
  • Cable diameter: Ø 3.9 mm
  • Short-circuit protection: YES
  • Reverse polarity protection: YES
  • Trigger pulse protection: YES
Do you have questions about this product or did you not find what you were looking for? Ask us!
Sick IME18 inductive proximity sensor with cable 1040968

Sick IME18 inductive proximity sensor with cable 1040968

€25.54
€25.54

Sick IME18 inductive proximity sensor with cable 1040968

€25.54
Tax included

Sick IME18 inductive proximity sensor with cable 1040968

€25.54

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days

Other technical characteristics:

  • Vibration and shock resistance: 30 g, 11 ms/10 Hz...55 Hz, 1 mm
  • Ambient operating temperature: -25 °C/+75 °C
  • Housing material: Brass, nickel-plated
  • Material, active surface: Plastic, PA 66
  • Housing: Cylindrical thread design
  • Housing: Standard design
  • Thread size: M18x1
  • Diameter Ø 18mm
  • Scope Sn 8mm
  • Safe sensing range Sa 6.48mm
  • Installation type: Flush
  • Switching frequency: 1,000hz
  • Connection type: Cable, 3 wires, 2m
  • Switching output: PNP
  • Output function: NO
  • Electrical wiring: DC 3-wire
  • Housing rating: IP67

Data sheet

Type:
Sensors
Degree of protection:
IP67
