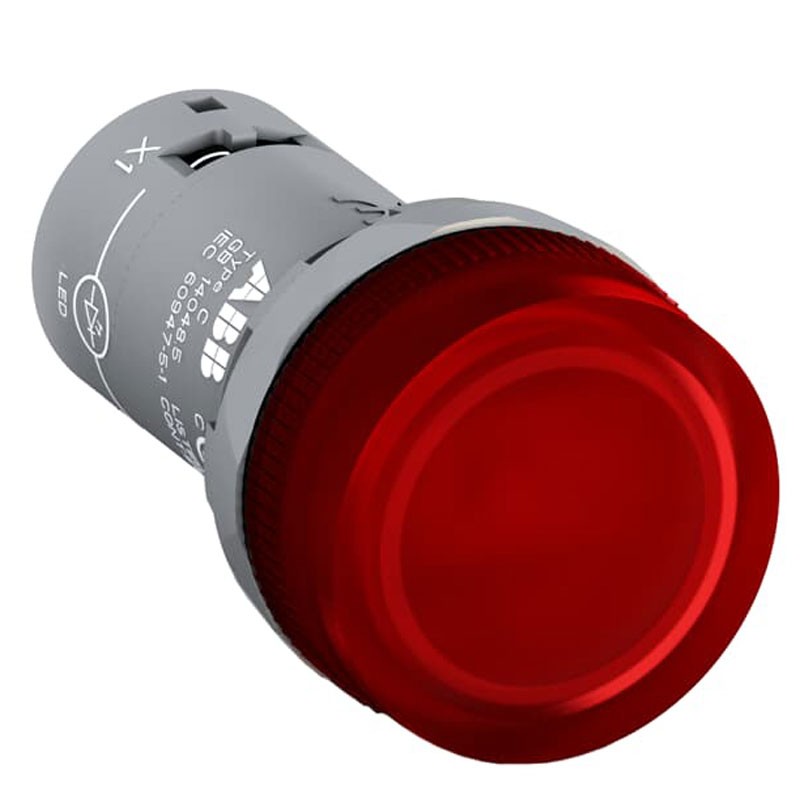

ABB Indicator Lamp CL2-515R with Integrated LED Red 110-130V CL2515R
ABB CL2515R
7320500474990
Abb indicator lamp with integrated red LED, with the following features:
- Ambient temperature: In operation -25 ...+70 °C - In storage -40 ... +85 °C
- Color: red
- Lamp type: 110-130 V DC, integrated LED
- Degree of protection: Front IP66, Front IP67, Front IP69K, Terminals IP20
- NEMA enclosure type:Type1, Type12, Type13, Type3R, Type4, Type4X
- Pollution degree:3
- Rated Operating Voltage:Power Supply Circuit 110 ... 130 V DC
- Connection Type: Screw Clamp
- Clamp Type: Screw Terminals
- Tightening Torque: 0.9 Nm
- Cable stripping length: 8 mm
- UL/CSA technical department: UL/CSA cable cross-sections: 1x 18...14 AWG - 2x 18...14 AWG
ABB Indicator Lamp CL2-515R with Integrated LED Red 110-130V CL2515R
€10.46
€10.46
Tax included
Tax included
Items Available: 1
Dimensions:
- Width:0.03 m
- Height:0.03 m
- Depth:0.052 m
- Net weight:0.018 kg
Connection capacity:
- Flexible with Ferrule 1 x 0.75...2.5 mm²
- Flexible with Ferrule 2 x 0.75...2.5 mm²
- Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²
- Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²
- Flexible 1 x 0.75... 2.5 mm²
- Flexible 2 x 0.75 ... 2.5 mm²
- Solid 1 x 0.75...2.5 mm²
- Solid 2 x 0.75 to 2.5 mm²
There are no reviews
Data sheet
- Type:
- Indicator heads
- Voltage:
- 110VAC
- Degree of protection:
- IP66
