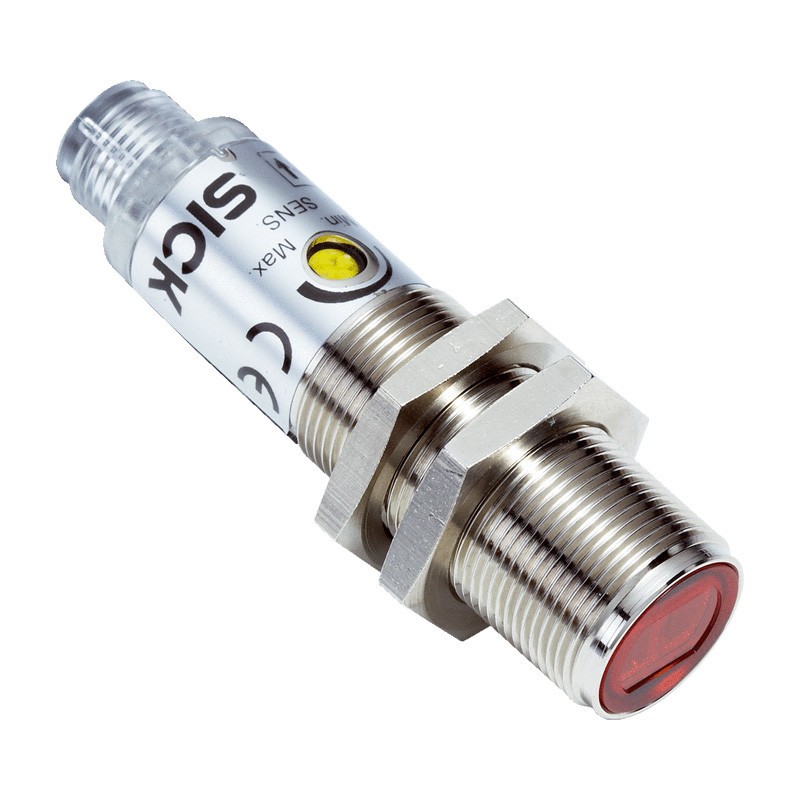

Sick photoelectric energy sensor VTE180-2P42482 M18 6041811
SIK 6041811
Sick energy photoelectric sensor, with the following characteristics:
- Supply voltage: 10 V DC ... 30 V DC
- Residual ripple: ± 10 %
- Current consumption: 30 mA
- PNP switching output
- Switching type: light on/dark on operation
- Selectable switching mode: Selectable via L/D control cable
- Signal voltage PNP HIGH/LOW: Approx. UV - 1.8 V / 0V
- Output current Imax. ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: M12 male connector, 4-pin
- Protection class: III
Sick photoelectric energy sensor VTE180-2P42482 M18 6041811
€104.90
€104.90
Tax included
Tax included
Items Available: 1
Other technical features:
- Housing material Metal, nickel-plated brass and PC
- Material, optics Plastic, PMMA
- Degree of protection: IP67
- Scope of supply: fixing nut (2 x)
- Operating ambient temperature -25/+55 °C
- Ambient storage temperature: -40/+70 °C
- Dimensions (W x H x D): 18 mm x 18 mm x 69.8 mm
- Light emission point: cylindrical
- Length: 69.8 mm
- Thread diameter (Housing): M18 x 1
- Optical axis: Axial
- Max. sensing distance: 1 mm ... 1,100 mm
- Sensing distance: 1 mm ... 800 mm
- Nature of light: Visible red light
- Light source: LED
- Light spot size (distance): Ø 30 mm (800 mm)
- Irradiance angle About 1.2°
- Wavelength: 645 nm
- Setting: potentiometer, 270° (Sensing distance)
There are no reviews
Data sheet
- Type:
- Sensors
- Degree of protection:
- IP67
