Weidmuller switching power supply PRO ECO 240W 24V 1469540000
WEI 1469540000
4050118275759

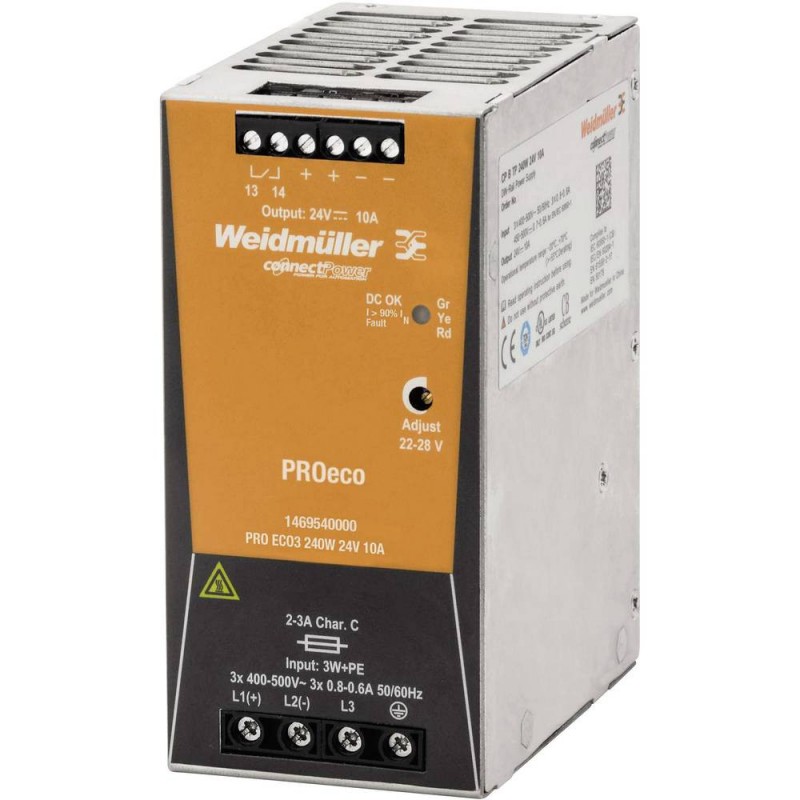

Weidmuller switching power supply PRO ECO 240W 24V 10A.
Weidmuller switching power supply PRO ECO 240W 24V 1469540000
€96.68
€96.68
Tax included
Tax included
Items Available: 27
: 9
Input:
- AC current consumption: 0.6 A at 3 x 500 V AC / 0.8 A at 3 x 400 V AC
- DC current consumption: 0.4 A at 800 V DC / 0.7 A at 450 V DC
- AC input voltage range: 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC
- AC frequency range 47...63 Hz
- DC input voltage range 450...800 V DC (max. 500 V DC acc. to UL508)
- Peak current max. 50A
- Input frequency 47...63 Hz
- Input fuse (internal) Yes
- Rated power consumption 272.7 VA
- Recommended pre-fuse: 2 A / DI, fuse - 2...3A, car. C, circuit breaker
- Input surge protection: varistor
- Connection technique: screw connection
Output:
- Capacitive load: Unlimited
- Continuous output current for rated U: 10 A @ 55 °C, 2.5 A @ 70 °C
- Continuous output current for nominal U: 10 A @ 55 °C
- Residual ripple, peak interruption < 50 mVPP @ 24 V DC, IN
- Parallelability yes, max. 5
- Power output: 240W
- Overload protection: Yes
- Reverse voltage protection: yes
- Connection technique: Screw connection
- Rise time: ≤ 100 ms
- Output voltage observations: (adjustable with potentiometer)
- Output voltage, max 28V
- Output voltage, min 22V
- Rated output voltage 24 DC ± 1 %
General technical data:
- Earth leakage current, max 3.5 mA
- Housing design: metal, corrosion resistant
- Power factor (approx.)> 0.55 @ 3 x 500 V AC / > 0.65 @ 3 x 400 V AC
- Degree of effectiveness 88%.
- Mounting position, mounting instructions on TS 35 support rail
- Power dissipation, no-load operation: 8W
- Power dissipation, rated load 26 W
- Short-circuit protection: Yes
- Protection against overtemperature: Yes
- Protection against load return voltages: 30...35 V DC
- Signaling Green LED (output > 21.6 V DC), Yellow LED (output > 90 % Typ. nominal), Red LED (overload, overtemperature, short circuit, Output < 20.4 V DC)
- Operating temperature: -25 °C/+70 °C
- AC interruption bridging time at Inom: > 40 ms @ 3 x 500 V AC / > 20 ms @ 3 x 400 V AC
- Max. relative air humidity (operating): 5 %...95 % RH
Insulation:
- Protection class: I, with PE connection
- Corrosion degree: 2
- Output/ground isolation voltage 2 kV
- Output/ground isolation voltage 0.5 kV
- Input/output isolation voltage 3 kV
Electrical safety (applied standards):
- Equipment with electronic operating equipment: according to EN50178 / VDE0160
- Electrical equipment of machines according to EN60204
- Protective low voltage: SELV according to IEC 60950-1, PELV according to EN 60204-1
- Protection against dangerous currents In accordance with VDE0106-101
- Safe separation / Protection against electric shock: VDE0100-410 / In accordance with DIN57100-410
- Safety transformers for switching power supplies: according to EN 61558-2-16
Temperatures:
- Storage temperature: -40 °C/+85 °C
- Operating temperature: -25 °C/+70 °C
EMC / Shock / Vibration:
- Noise immunity check according to EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips)
- Noise emission according to EN55032: Class B
- Mains harmonic current limitation: According to EN 61000-3-2
- Shock resistance IEC 60068-2-27: 15 g in all directions
- Resistance against vibration IEC 60068-2-6: 1 g according to EN50178
Connection data (input):
- Cable connection cross section, AWG/kcmil , max. 12
- Cable connection cross section, AWG/kcmil , min. 26
- Cable connection cross section, flexible , max. 2.5 mm²
- Cable connection cross section, flexible , min 0.5 mm²
- Cross section of cable connection, rigid , max 6 mm²
- Cable connection cross section, rigid , min 0.5 mm²
- Connection technique: screw connection
Connection data (output):
- Number of terminals 6 (++,--,13,14)
- Cable connection cross section, AWG/kcmil , max 12
- Cable connection cross section, AWG/kcmil , min 26
- Cable connection cross section, flexible , max 2.5 mm²
- Cable connection cross section, flexible , min 0.5 mm²
- Cross section of cable connection, rigid , max 6 mm²
- Cable connection cross section, rigid , min 0.5 mm²
- Connection technique: screw connection
Signaling:
- Contact load (NO contact) max. 30V DC / 1A
- Equipotential contact: yes
- Relay ON/OFF: Output voltage >21.6V DC/ <20.4V DC, overload
Dimensions and weights:
- Depth 100 mm
- Depth (inches) 3.937 inch
- Vertical position 125 mm
- Height (inches) 4.921 inch
- Width 60 mm
- Width (inches) 2.362 inch
- Net weight: 957 grams
There are no reviews
Data sheet
- Type:
- Power supplies
- Voltage:
- 24V
