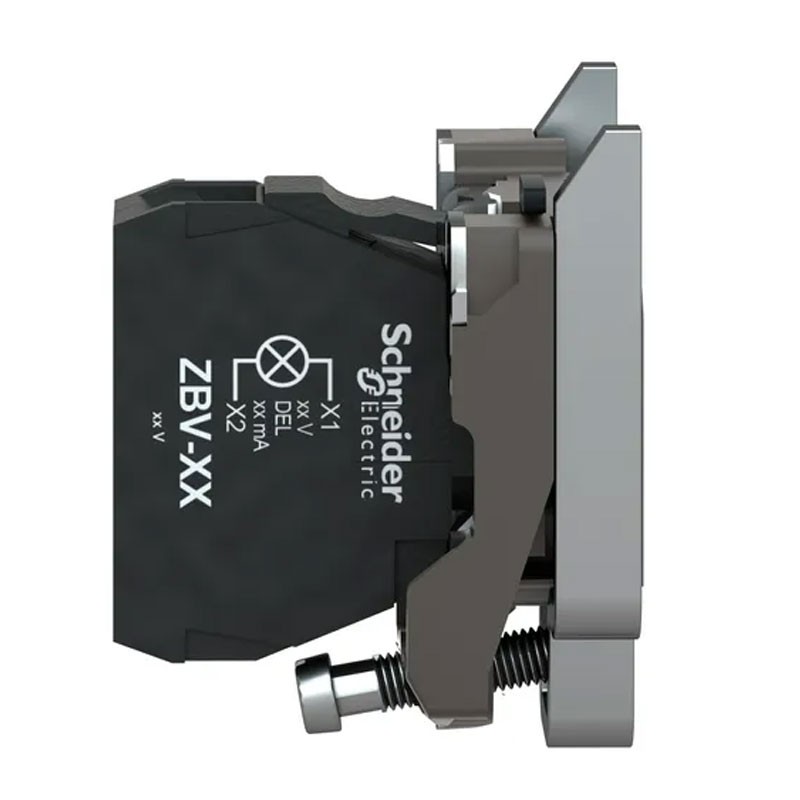

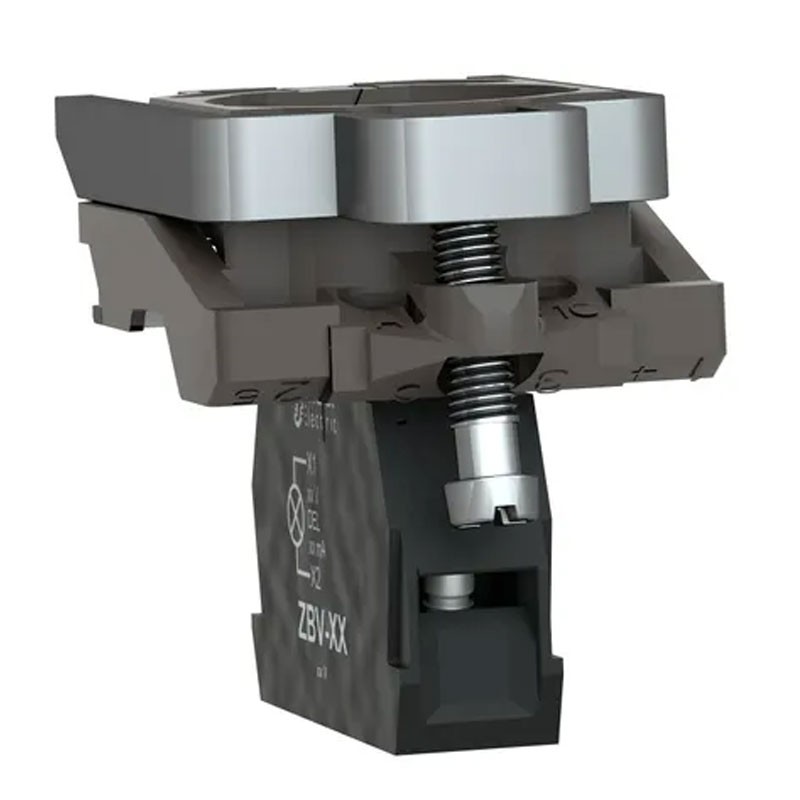

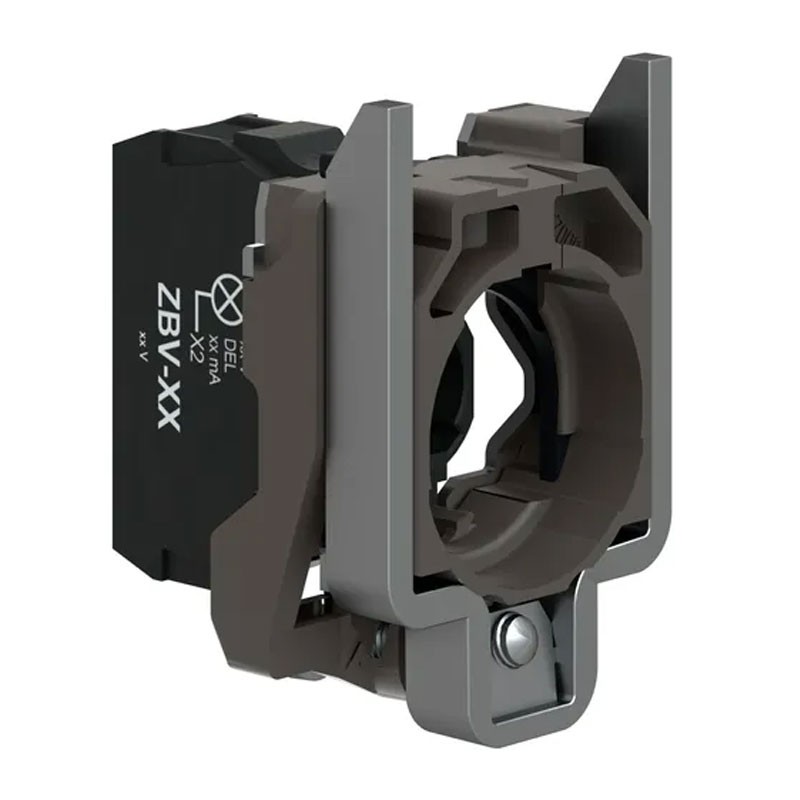

Telemecanique Body for Indicator Lamps BA9S 250V ZB4BV6
SNR ZB4BV6
3389110889628
Schneider body for BA 9S Indicator Lamps, with the following features:
- Fixing base material: Zamak
- Connections-clamps: Screw clamps, <= 2 x 1.5 mm² with cable end, Screw clamps, > = 1 x 0.22 mm² without cable end
- Light source: bulb not included
- Lamp socket: BA 9s
- Light element power supply: Direct <2.4 W
- Rated supply voltage [Us]: <= 250 V
- CAD total width 30 mm
- Total CAD height 47 mm
- Total CAD depth 37 mm
Telemecanique Body for Indicator Lamps BA9S 250V ZB4BV6
€6.28
€6.28
Tax included
Tax included
Items Available: 40
: 3
Frequently bought together
Schneider Electric's Harmony XB4 light element with fixing body/base works with BA9s bulb.
It is powered at 250 VAC/DC and uses screw terminals. It has a metal body and is compatible with Harmony XB4 indicator lamps. This light element allows for quick and easy replacement and configuration of warning units. It can be easily installed and replaced on compatible selector units or push-button lights via the clip assembly and connected with simple screw connections. Allows signaling units to be visually distinguished through illumination by BA9s bulb. Protects operators from accidental contact with live circuits through its IP20 rating.
Head shape (screw):
- Phillips head compatible with Philips no 1 screwdriver
- Phillips head compatible with pozidriv No 1 screwdriver
- Slotted compatible with Ø 4 mm plate screwdriver
- Slotted compatible with plate Ø 5.5 mm screwdriver
Other Specifications:

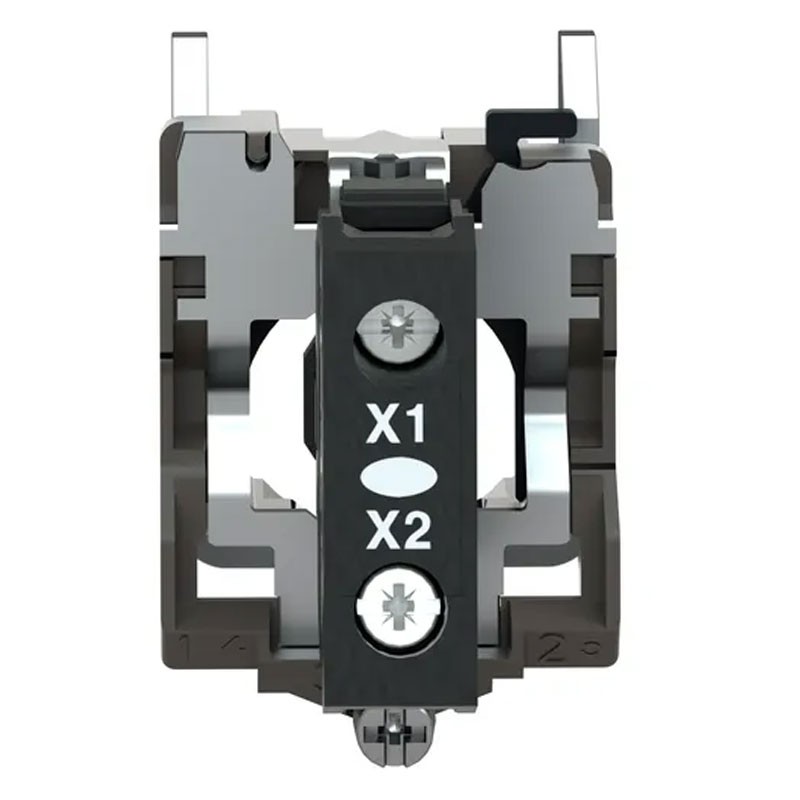

- Description ISO clamps No. 1 (X1-X2)PL
- Weight 0.052 kg
- Tightening torque: 0.8 to 1.2 Nm in accordance with EN 60947-1
- Rated insulation voltage [Ui]: 600 V (pollution degree 3) in accordance with EN 60947-1
- Rated impulse withstand voltage [Uimp]: 6 kV complies with EN 60947-1
- Signaling type: Fixed
- Protection treatment: TH
- Storage temperature: -40...70 °C
- Ambient temperature: -40...70 °C
- Protection class against electric shock: Class I in accordance with IEC 60536
- Vibration resistance: 5 gn (F= 2...500 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half-sine wave acceleration complies with IEC 60068-2-27, 50 gn (duration = 11 ms) for half-sine wave acceleration complies with IEC 60068-2-27
There are no reviews
Data sheet
- Type:
- Lamp holder
- Voltage:
- 250V
