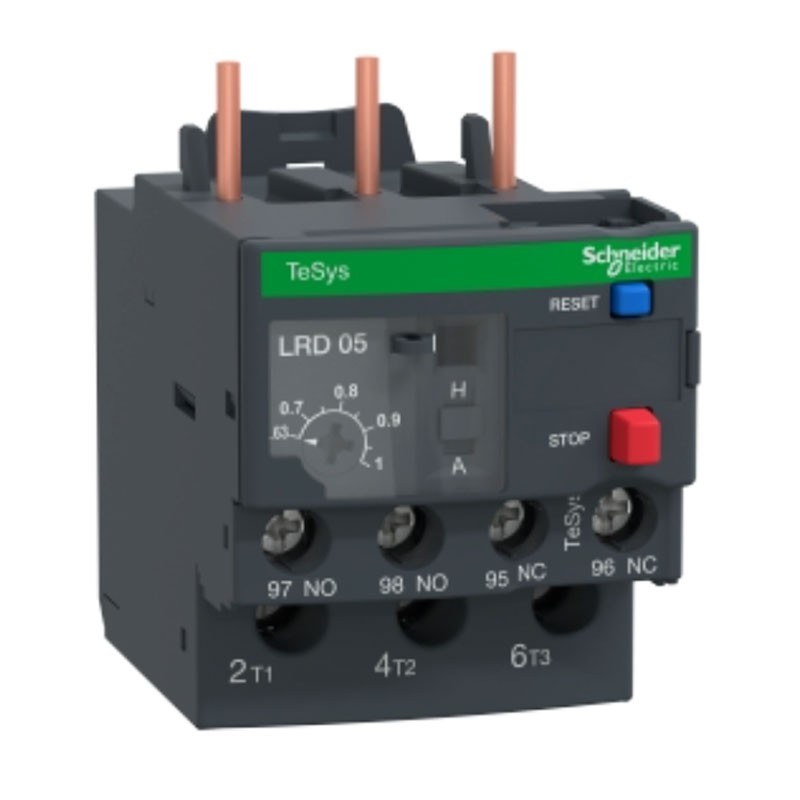

Telemecanique Thermal Relay 0,63-1A for TeSys Motor LRD05
SNR LRD05
3389110346756
Schneider Telemecanique differential thermal overload relay with the following characteristics:
- Rated operational voltage [Ue]: 690 V "AC" 0...400 Hz for Power circuit complying with IEC 60947-4-1
- Rated insulation voltage [Ui]: Power circuit: 600 V compliant with CSA - Power circuit: 600 V compliant with UL - Power circuit: 690 V compliant with IEC 60947-4-1
- Rated impulse withstand voltage [Uimp]: 6 kV
- Thermal protection adjustment range: 0.63...1A
- Mains type "AC" - DC
- Mains frequency: 0...400 Hz
- Auxiliary contact composition 1 NO + 1 NC
Telemecanique Thermal Relay 0,63-1A for TeSys Motor LRD05
€50.67
€50.67
Tax included
Tax included
Items Available: 4
Features:
- Schneider Series
- Trip threshold: 1.14 +/-0.06 Ir according to IEC 60947-4-1
- Phase failure sensitivity: Trip current 130 % of Ir on two phases, the last one at 0
- Control type: Red button: stop - Blue button: reset
- Product weight: 0.124 kg
- Degree of protection: TH compliant with IEC 60068
- Degree of protection: IP20 in accordance with IEC 60529
- Ambient operating temperature: -20...60 °C without reduction in accordance with IEC 60947-4-1
- Storage temperature: -60...70 °C
- Fire rating: V1 per UL 94
- Dielectric strength: 1.89 kV at "50 Hz" in accordance with IEC 60947-1
- Conventional thermal current in air [Ith]: 5A per signaling circuit
- Thermal Overload Trip Class: Class 10A per IEC 60947-4-1
Product Compatibility:
- LC1D25
- LC1D38
- LC1D12
- LC1D32
- LC1D18
- LC1D09
Mounting bracket:
- Plate, with specific accessories
- Rail, with specific accessories
- Under the contactor
Mechanical robustness:
- Vibration: 6 Gn according to IEC 60068-2-6
- Shock: 15 Gn for 11 ms according to IEC 60068-2-7
Allowable current:
- 3 A at 120 V AC-15 per signaling circuit
- 0.22 A at 125 V DC-13 per signaling circuit
Associated fuse rating:
- 4 A gG for signaling circuit
- 4 A BS for signaling circuit
Connections - terminals
- Control circuit: screw terminals 2 cables 1...2.5 mm² flexible without cable termination
- Control circuit: screw terminals 2 cables 1...2.5 mm² flexible with cable termination
- Control circuit: screw terminals 2 cables 1...2.5 mm² solid without cable termination
- Power circuit: screw terminals 1 cable 1.5...10 mm² flexible without cable termination
- Power circuit: screw terminals 1 cable 1...4 mm² flexible with cable termination
- Power circuit: screw terminals 1 cable 1...6 mm² solid without cable termination
Tightening torque:
- Control circuit: 1.7 Nm - on screw terminals
- Power circuit: 1.7 Nm - on screw terminals
Dimensions:
- Height 66 mm
- Width 45 mm
- Depth 70 mm
Reference standards
- EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- UL 60947-4-1
- UL 60947-5-1
- CSA C22.2 No 60947-4-1
- CSA C22.2 No 60947-5-1
- GB/T 14048.4
- GB/T 14048.5
- EN 50495
Product Certifications
- IEC
- UL
- CSA
- CCC
- EAC
- BV
- RINA
- DNV-GL
- LROS (Lloyds Register of shipping)
- ATEX INERIS
- UKCA
There are no reviews
Data sheet
- Type: Protection relay
- Degree of protection: IP20
