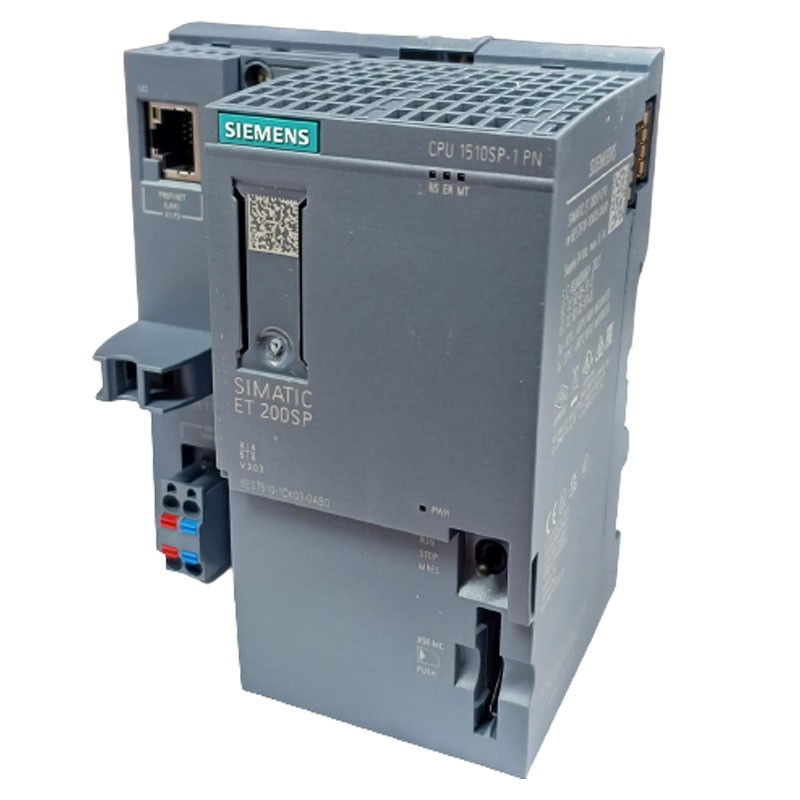

Siemens SIMATIC DP central unit CPU 1510SP-1 PN 6ES75101DK030AB0
SIE 6ES75101DK030AB0
4047623406044
Siemens CPU central processing unit CPU 1510SP-1 PN with 200 KB working memory per program and 1 MB for data, 1st interface: PROFINET IRT with 3-port Switch, 25 ns bit performance, with the following characteristics:
- Supply voltage: 24V
- Nominal value (DC) lower limit: 19.2V
- Allowable range, upper limit: (DC) 28.8V
- Reverse polarity protection: YES
- Mains buffering: Time of stored energy for power failure/voltage: 10 ms
- Current consumption (nominal value): 0.51A
- Current consumption, max: 0.7A
- Inrush current, max: 1.34A; Rated value
- Voltage at backplane bus: 8/05 W
- Tip power loss: 3.5W
- Number of SIMATIC memory card slots: 1 (not supplied in package)
- Integrated working memory per program: 200 kbytes - integrated for data 1 mbyte
- Memory capacity: 32 GB MAX. (not supplied in package)
Siemens SIMATIC DP central unit CPU 1510SP-1 PN 6ES75101DK030AB0
€962.43
€962.43
Tax included
Tax included
Pay in installments with Klarna
Items Available: 11
CPU processing times:
- For bit operations, tip: 25 ns
- For word operations: 32 ns
- For fixed-point arithmetic, tip: 42 ns
- For floating-point arithmetic, tip: 170 ns
Ather technical characteristics:
- I²t: 0.3 A²-s
- Maintenance-free backup: yes
- Total CPU blocks: 4 000; Blocks (OB, FB, FC, DB) and UDT
- Ambient temperature during operation horizontal installation: -30/+60°C no condensation
- Ambient temperature during operation vertical installation: -30/+50°C no condensation
- Dimensions: Width 100mm - Height 117mm - Depth 75mm
- Weight: 265 grams approx.
There are no reviews
Data sheet
- Type:
- CPU Central Units
- Voltage:
- 24V
