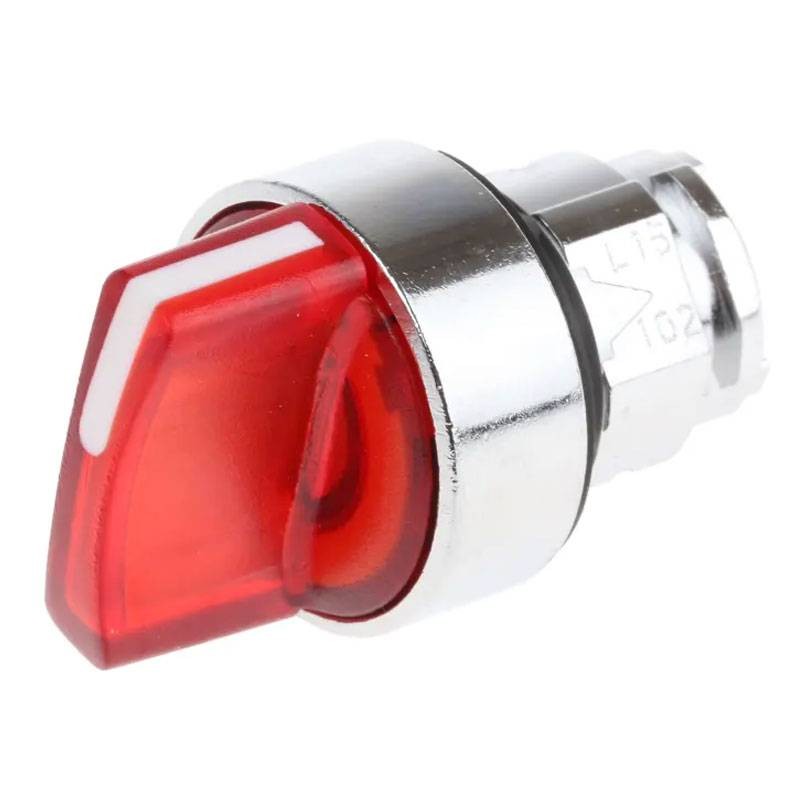

Telemecanique Selector Head Bright LED Red 2 Positions ZB4BK1243
SNR ZB4BK1243
3389110890440
Schneider light selector head, with the following features:
- Product Compatibility: Universal LED
- Device name: ZB4
- Head material: chrome-plated metal
- Head type: Standard
- Mounting diameter: 22mm
- Head shape: circular
- Operator type: fixed
- Operator profile: red standard lever
- Operator position information: 2 positions 90°
Telemecanique Selector Head Bright LED Red 2 Positions ZB4BK1243
€14.53
€14.53
Tax included
Tax included
Items Available: 17
: 2
Frequently bought together
Schneider Electric's Harmony XB4 red selector switch light head for integrated LED with standard lever has 2 positions and operates with a fixed mechanism. It has a round shape and a chrome-plated metal bezel. This light switch head for integrated LED provides an ergonomic interface for machine control.
It comes with standard lever and can be easily installed on compatible selector units. It provides instant help to set machines in various operating modes even in the darkest control rooms, and provides clear visual feedback. With its IP69K rating, it is resistant to shock, vibration, dust and water, and is ideal for use in harsh environments.
Strengths:
- Metal bezel
- Simple modular design simplifies post-installation maintenance, modification and adaptation of machines
- Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery
- High performance : International standards and certifications (marine certification, IP66 IP67 IP69 IP69K, type 4X)
- Wide operating temperature range of -40°C to 70°C ensures versatility of product use
- Environmentally friendly product performance
Electrical composition code:
- M3 for <4 single contacts in Direct front mounting on pushbutton with LEDs
- M6 for <2 contacts single in Direct front mounting on button with integrated LED and transformer
- M10 for <2 contacts single in Direct front mounting on button with LED
- M4 for <4 single and double contacts in Direct front mounting on button with LED
Impact resistance:
- 30 gn (duration = 18 ms) for half-sine wave acceleration in accordance with IEC 60068-2-27
- 50 gn (duration = 11 ms) for half-sine wave acceleration in accordance with IEC 60068-2-27
Other Specifications:
- Overall CAD width 29 mm
- Total CAD height 29 mm
- Total CAD depth 43 mm
- Weight 0.036 kg
- Resistance to high-pressure washing: 7000000 Pa at 55 °C, distance: 0.1 m
- Mechanical durability: 1000000 cycles
- Vibration resistance: 5 gn (F= 2...500 Hz) in accordance with IEC 60068-2-6
- TH protection treatment
- Storage temperature -40...70 °C
- Ambient operating temperature -40...70 °C
- Overvoltage category: class I in accordance with IEC 60536
- IP degree of protection: IP66 complying with IEC 60529, IP67, IP69, IP69K
- NEMA degree of protection: NEMA 13, NEMA 4X
- IK degree of protection: IK06 complying with IEC 50102
There are no reviews
Data sheet
- Type: Selectors
