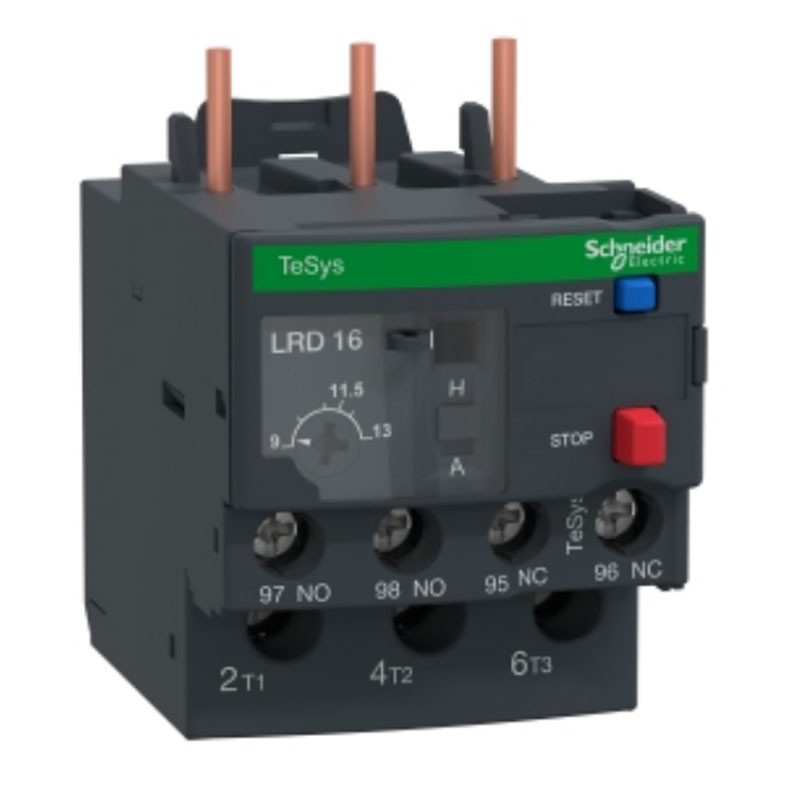

Telemecanique Thermal Relay 9-13 for TeSys Motors LRD16
SNR LRD16
3389110346824
Schneider Telemecanique thermal overload relay with the following characteristics:
- Rated operating voltage [Ue]: 690 V "AC" 0...400 Hz for Power circuit complying with IEC 60947-4-1
- Relay application: motor protection
- Mains type: DC - "AC"
- Thermal overload trip class: class 10A complying with IEC 60947-4-1
- Thermal protection control range: 9...13 A
- Mains frequency: 0...400 Hz
- Trip threshold: 1.14 +/-0.06 Ir complying with IEC 60947-4-1
- Auxiliary contact composition: 1 NO + 1 NC
- Conventional thermal current in air [Ith]: 5A per signaling circuit
Telemecanique Thermal Relay 9-13 for TeSys Motors LRD16
€50.97
€50.97
Tax included
Tax included
Items Available: 13
LRD16 is a TeSys LRD motor thermal overload relay from Schneider Electric for use with a TeSys D contactor.
It protects 5.5kW motors at 400V with a thermal control range of 9-13A, trip class of 10A, and phase imbalance protection. It consists of manual test & reset buttons, automatic reset, auxiliary trip contact and mechanical indicator. Available worldwide, it is certified to various standards (IEC, UL, CSA, CCC, EAC, for use in marine environments) and is Green Premium (RoHS/REACH) compliant.
Advantages:
- Thermal protection relay, bimetallic type, with phase imbalance (differential) protection
- Direct mounting on the lower terminals of a TeSys LC1D09-D38 contactor to form a compact starter
- Lightweight and compact, 45 mm wide
- Temperature compensation for good protection accuracy
- Manual control with test & reset buttons, manual/automatic reset switch
- Environmentally friendly product performance
Other features:
- Associated fuse rating: 4 A gG for signaling circuit - 4 A BS for signaling circuit
- Rated impulse withstand voltage [Uimp]: 6 kV
- Phase-loss sensitivity: Trip current 130 % of Ir on two phases, the last one at 0
- Control type: red button: stop, blue button: reset
- Temperature compensation: -20 to 60 °C
- Climatic sealing: complies with IACS E10
- Degree of protection IP20 complying with IEC 60529
- Ambient operating temperature: -20...60 °C without derating complies with IEC 60947-4-1
- Storage temperature: -60/+70 °C
- Fire resistance: V1 in accordance with UL 94
Rated insulation voltage [Ui]:
- Power circuit: 600 V complying with CSA
- Power circuit: 600 V complying with UL
- Power circuit: 690 V complying with IEC 60947-4-1
Mounting bracket:
- Plate, with specific accessories
- Rail, with specific accessories
- Under contactor
Allowable current:
- 1.5A at 240 V AC-15 for signaling circuit
- 0.1A at 250 V DC-13 for signaling circuit
Connections-terminals:
- Control circuit: screw clamp terminals 2 cables 1...2.5 mm² flexible without cable termination
- Control circuit: screw clamp terminals 2 cables 1...2.5 mm² flexible with cable termination
- Control circuit: screw terminals 2 cables 1...2.5 mm² solid
- Power circuit: screw clamp terminals 1 wire 1.5...10 mm² flexible without cable termination
- Power circuit: screw clamp terminals 1 cable 1...4 mm² flexible with cable termination
- Power circuit: screw clamp terminals 1 cables 1...6 mm² solid
Tightening torque:
- Control circuit: 1.7 Nm - on screw clamps
- Power circuit: 1.7 Nm - on screw fastening terminals
Mechanical robustness:
- Vibration: 6 Gn in accordance with IEC 60068-2-6
- Shock: 15 Gn for 11 ms complying with IEC 60068-2-7
Dielectric strength:
- 1.89 kV at "50 Hz" complying with IEC 60947-1
Dimensions and weight:
- 66 mm height
- Width 45 mm
- Depth 70 mm
- Weight 0.124 kg
