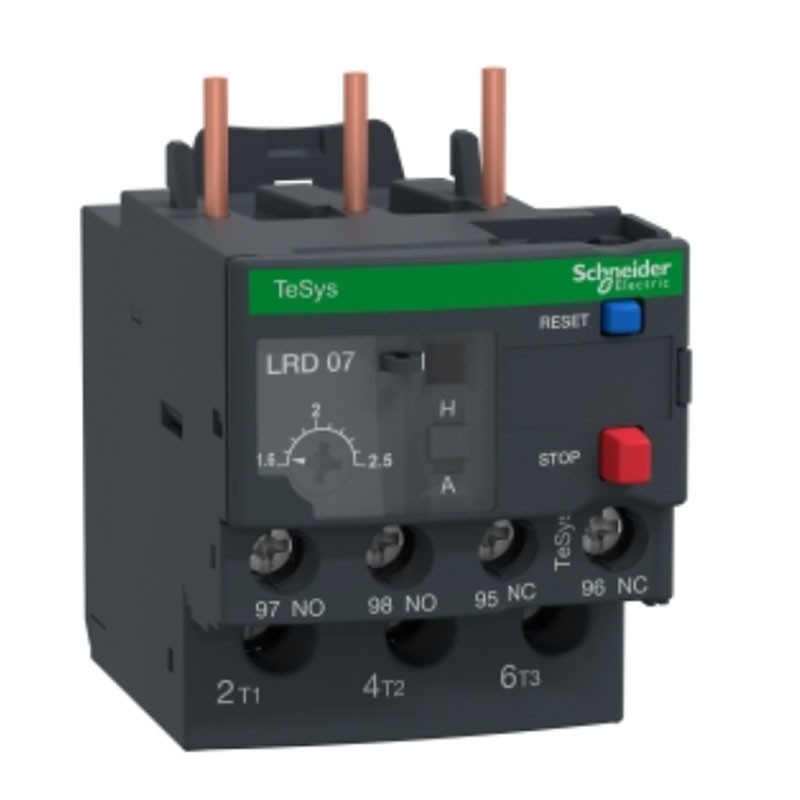

TeSys LRD 1.6-2.5A Thermal Overload Relay LRD07
SNR LRD07
3389110346770
Schneider Telemecanique differential thermal overload relay, with the following characteristics:
- Rated operating voltage [Ue]: 690 V "AC" 0...400 Hz for Power circuit in accordance with IEC 60947-4-1
- Associated fuse rating: 4A gG for signaling circuit, 4A BS for signaling circuit
- Rated impulse withstand voltage [Uimp]: 6 kV
- Mains type: DC - "AC
- Thermal overload trip class: class 10A in accordance with IEC 60947-4-1
- Thermal protection adjustment range: 1.6...2.5A
- Mains frequency 0...400 Hz
- Trip threshold: 1.14 +/-0.06 Ir compliant with IEC 60947-4-1
- Auxiliary contact composition: 1 NO + 1 NC
- Conventional thermal current in air [Ith]: 5A for signaling circuit
TeSys LRD 1.6-2.5A Thermal Overload Relay LRD07
€41.19
€41.19
Tax included
Tax included
Items Available: 25
Other features:
- Allowable current: 3A at 120 V AC-15 per signaling circuit: 0.22A at 125 V DC-13 per signaling circuit
- Phase failure sensitivity: Release current 130 % of Ir on two phases, the last one at 0
- Control type: Red button: stop, Blue button: reset
- Temperature compensation: -20/+60 °C
- Climatic sealing: complies with IACS E10
- IP degree of protection: IP20 according to IEC 60529
- Ambient operating temperature: -20/+60 °C without reduction according to IEC 60947-4-1
- Storage temperature: -60/+70 °C
- Fire resistance: V1 in accordance with UL 94
- Mechanical strength: vibration: 6 Gn according to IEC 60068-2-6, shock: 15 Gn for 11 ms according to IEC 60068-2-7
- Dielectric strength: 1.89 kV at "50 Hz" according to IEC 60947-1
Rated insulation voltage [Ui]:
- Power circuit: 600 V compliant with CSA
- Power circuit: 600 V according to UL
- Power circuit: 690 V compliant with IEC 60947-4-1
Connections - terminals
- Control circuit: screw terminals 2 cables 1...2.5 mm² flexible without cable termination
- Control circuit: screw terminals 2 wires 1...2.5 mm² flexible with cable termination
- Control circuit: screw terminals 2 cables 1...2.5 mm² solid without cable termination
- Power circuit: screw terminals 1 cable 1.5...10 mm² flexible without cable termination
- Power circuit: screw terminals 1 cable 1...4 mm² flexible with cable termination
- Power circuit: screw terminals 1 cable 1...6 mm² solid without cable termination
Tightening torque:
- Control circuit: 1.7 Nm - on screw terminals
- Power circuit: 1,7 Nm - on screw terminals
Dimensions and weight
- height 66 mm
- Width 45 mm
- depth 70 mm
- weight 0,124 kg
There are no reviews
Data sheet
- Type:
- Protection relay
