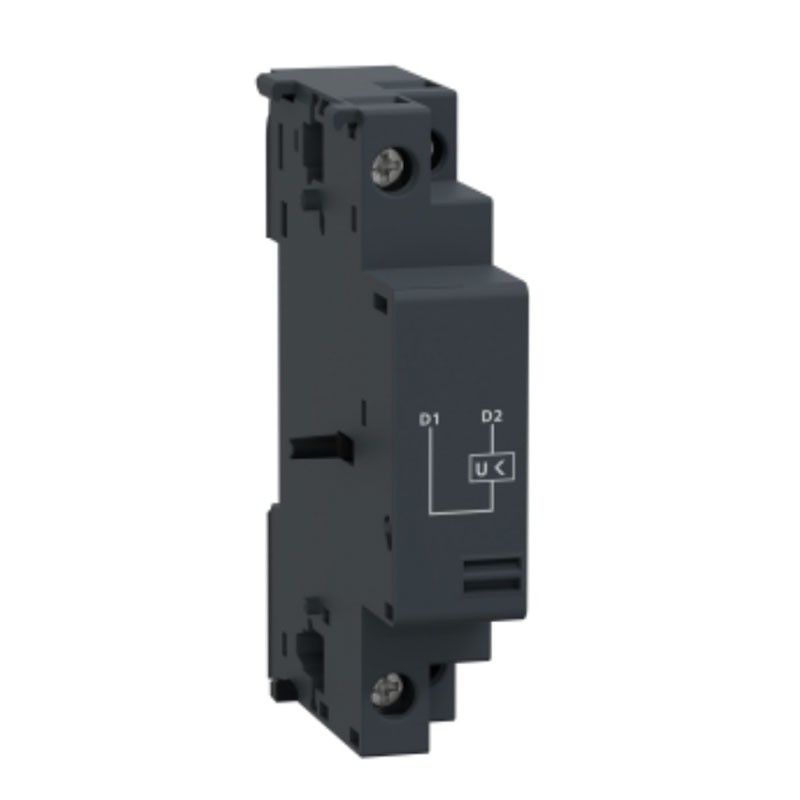

Telemecanique Release Coil TeSys GV-AU GVAU225
SNR GVAU225
3389110345995
Telemecanique Schneider TeSys minimum voltage disconnect switch, with the following characteristics:
- Control voltage [Uc]: 220...240 V "AC" "50 Hz".
- Control circuit voltage thresholds:0,85...1,1 Un
- Trip voltage threshold: 0.7...0.35 Un
- Inrush power in VA: 12 VA "AC
- Inrush power : 8W
- Holding power consumption VA: 3.5 VA "AC
- Holding power consumption W: 1.1 W
Telemecanique Release Coil TeSys GV-AU GVAU225
€28.73
€28.73
Tax included
Tax included
Items Available: 3
Other features:
- Operating time:10...15 ms according to IEC 60947-1
- Load factor: 100 %.
- Tightening torque: < 14 Nm on screw terminals
- Mechanical life: 10000 cycles with GV3P and GV3L - 30000 cycles with GV2ME and GV2P
- Height 89 mm
- Width 18 mm
- Depth 66 mm
- Weight: 0.105 kg
- Color: Dark gray
Rated insulation voltage [Ui]:
- 690 V "AC" per IEC 60947-1
- 600V "AC" per UL 60947-4-1
- 600V "AC" per CSA C22.2 No 60947-4-1
Connections - terminals
- Screw terminals 1 cable 1...2.5 mm²solid
- Screw-fixing terminals 2 wires 1...2.5 mm²solid
- Screw-fixing terminals 1 cable 0,75...2,5 mm²flexible without cable termination
- Screw-fixing terminals 2 wires 0,75...2,5 mm²flexible without cable termination
- Screw-fixing terminals 1 cable 0,75...1,5 mm²flexible with cable termination
- Screw-fixing terminals 2 cables 0.75...1.5 mm²flexible with cable termination
There are no reviews
Data sheet
- Type: Coils
