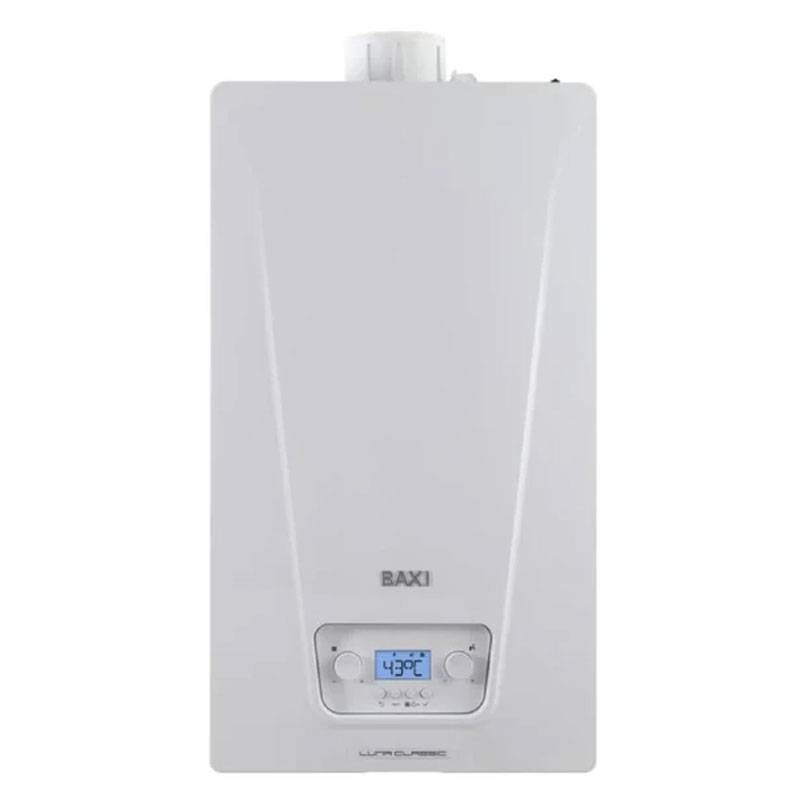

The new Luna Classic is the ideal product for apartments or small houses. Its compact size (700x395x285 mm) allows it to be installed in small spaces such as kitchen wall units or in laundry rooms.



The Luna Classic range includes 2 models for heating and instant domestic hot water production, Luna Classic 24 and Luna Classic 28.



Luna Classic is designed to operate with a mixture composed of up to 20% hydrogen, thus reducing CO2 emissions by 6% compared to operation with 100% natural gas.



Luna Classic Control Panel:



Revamped interface with:

• Backlit menu with icons
• Simple settings to adjust heating temperature and domestic hot water via two dedicated knobs;
• 4 buttons with dedicated functions: menu, confirm, back, reset and summer/winter mode
• Display of system pressure in the display and appearance of a warning in case of any decrease in pressure to prevent boiler lockout



2 functions for perfect water temperature:

• Relax function: This is a preheating function that keeps the domestic water at the desired temperature for a preset period of time, or for 30 minutes after selecting the chosen temperature
• Boost function: Activates the boiler at maximum power for faster delivery of hot water



Advantages:

• Operation with mixture composed of up to 20% hydrogen
• New single-pass stainless steel heat exchanger with sections with large water passages for higher seasonal thermal efficiency
• Seasonal energy efficiency at 94% due to advanced applied technology
• Revamped interface with backlit display
• Easy replacement of conventional boilers thanks to central flue gas discharge
• Modulation range 1:5 greater efficiency and quietness
• Ø80 split exhaust as standard
• Connection to Ø50 mm rigid and flexible exhaust pipe: solutions for chimney renovation total length (exhaust+suction) 40 meters
• Connection to pressurized collective flues
• Boilers operating on natural gas that can be converted to LPG and propane air by means of special adjustment (conversion kit not necessary)
• Compact dimensions: 700x395x285 mm
• Class A+ for Luna Classic 24/28 models with Baxi Mago and external probe (as accessories)
• New hydraulic unit that guarantees maximum performance levels and durability over time
• Optimal insulation for quiet operation



Features:

• Nominal sanitary heat flow rate 24.7 kW
• Nominal heating heat flow rate 20.6 kW
• Useful heat output at nominal thermal power and high temp regime 20 kW
• Seasonal energy efficiency of room heating 94%.
• Useful efficiency at rated therm.power and high temp regime 88.2%
• Useful efficiency at 30% therm.nom. power and regime at low temp 99%
• Emissions of nitrogen oxides NOx 32 mg/kWh
• Minimum operating temperature -5 C
• Heating expansion tank capacity 7 liters
• Specific flow rate according to EN 13203-1 11.5 l/min
• Domestic water production ?T 25°C 13.8 l/min
• Dimensions (h x w x d) 700 x 395 x 285mm
• Net weight 28.5 kg
• Degree of protection IPX5D



Connections:

• 3/4 fitting for heating circuit delivery
• Ø 21.8 mm fitting for condensate drainage
• 1/2 Sanitary hot water (DHW) outlet fitting
• 3/4 Gas inlet fitting
• 1/2 Connection of domestic cold water inlet
