Came BPT PLX V hands-free video intercom for X1 systems 840CH-0110

Bpt
CMC 840CH-0110 8050456085788

Hands-free videointercom Came model BPT PLX V for X1 and XIP systems:



  • Soft-touch keys
  • 5" LCD display with OSD
  • 4 keys for intercom calls or auxiliary commands
  • White color
  • Concealed signaling LEDs
  • Video auto switchover of door stations
  • Quality hands-free audio
  • Soft-touch buttons
  • Master/Slave function and Video dribble function between extensions in simultaneous call
Do you have questions about this product or did you not find what you were looking for? Ask us!
Came BPT PLX V hands-free video intercom for X1 systems 840CH-0110
€142.92
€142.92

€142.92
Tax included
Items Available: 4
Further availability of the manufacturer
€142.92

Buy it within and receive it from Wednesday, 19 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

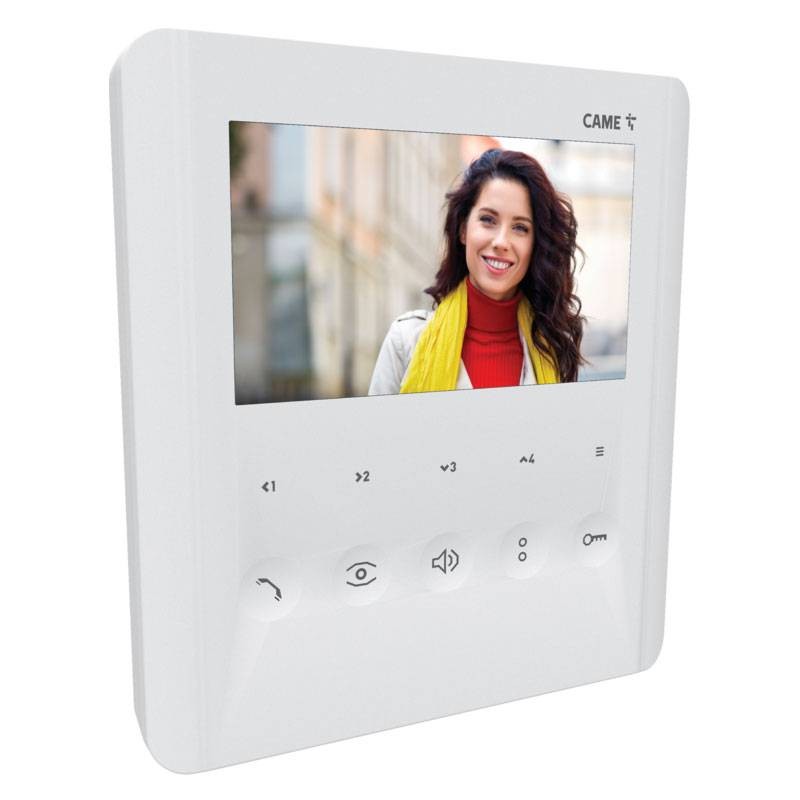

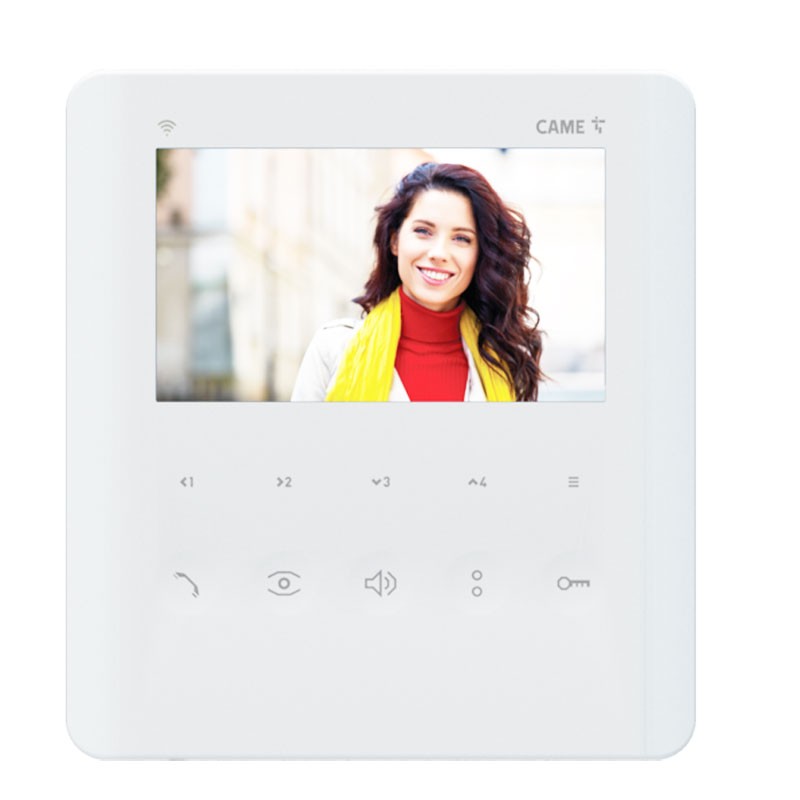

PLX is the hands-free video intercom with a modern, minimalist design, a sleek matte white finish, and a 5-inch display. It features soft-touch buttons with hidden indication LEDs, no holes in the front for audio speaker and microphone, and only 24 millimeters thick. The large display with 480 x 272 pixel resolution has OSD for color, brightness and contrast adjustment.




Features and Benefits:

  • Equipped with ringer adjustment/exclusion button
  • Wall monitor with 5? color LCD display equipped with OSD for adjusting video parameters (brightness, color, contrast)
  • The 5 main touch buttons allow management of primary functions such as communication answering and hanging up, door opening, video self-connection of door stations, ringer adjustment/exclusion (with LED signaling when excluded), and sending a programmable auxiliary command
  • Suitable for multi-user systems as it enables up to 6 intercom calls and the sending of "Panic" signaling for the doorman's distress call
  • If configured enables up to 4 additional auxiliary commands, alternative to intercom calls
  • Enables management of "gate-opener" function and display of controlled gate status via signaling LEDs
  • Bracket for wall installation on 503 box (horizontal or vertical) and on Ø 60 mm round box is included




Technical data:

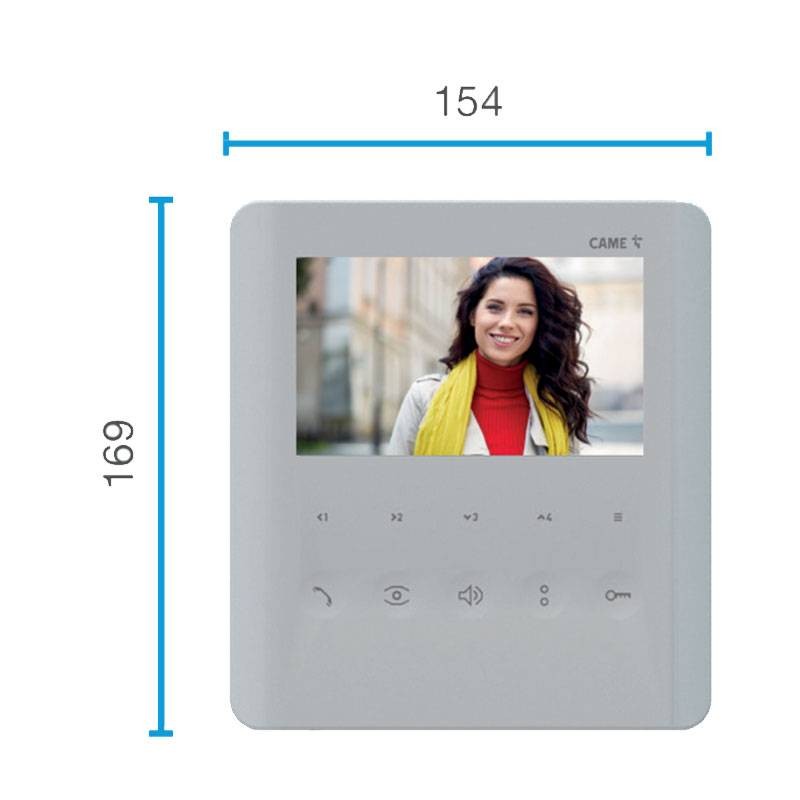

  • Dimensions (mm) 155 x 170 x 25
  • Power supply from BUS (V) 15 ÷ 20 DC
  • Absorption from BUS (mA) 200
  • Stand-by absorption (mA) <1
  • Operating temperature (°C) +5 ÷ + 40
  • Degree of protection (IP) 30
  • Video standard PAL/NTSC
  • Color White

There are no reviews

Data sheet

Type:
Video Intercoms
System:
2-Wire
