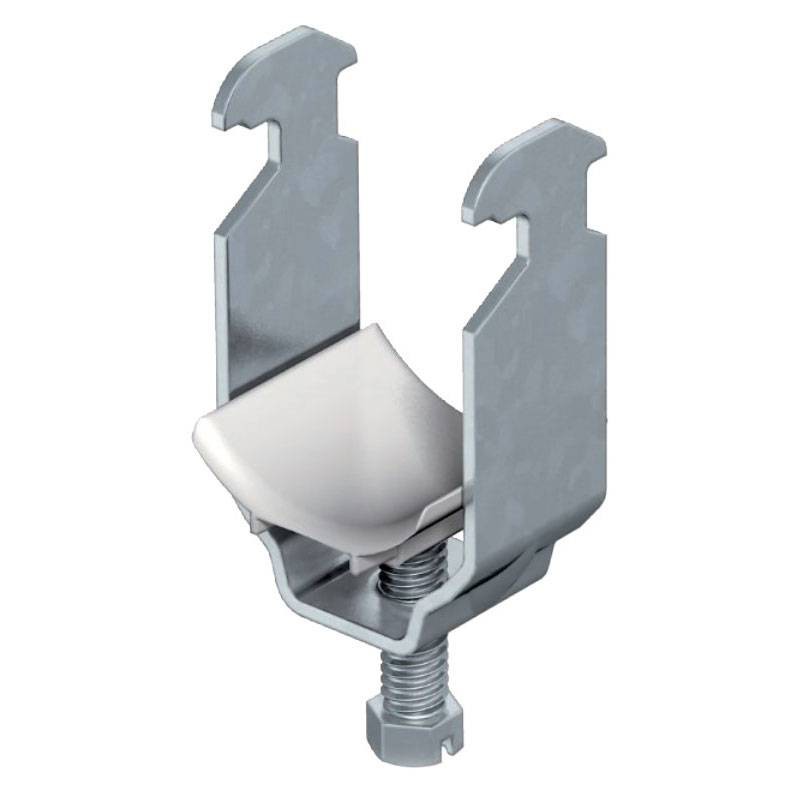

Obo cable bracket 1 way for steel profiles 1160346
OBO 1160346
4012195064701
Obo 1-way cable bracket with the following features:
- Number of cables/pipes: 1
- Maximum tightening torque: 5 Nm
- For cable holder profile with slot width: 16/17 mm
- Halogen-free
- With plastic cup
- Material: steel
- Hot dip galvanized surface
Suitable for all C-profiles with slot widths between 16 and 17 mm. Version with weldable nut and/or lock nut for use in harsh conditions and for vibration resistance :upon request.
Obo cable bracket 1 way for steel profiles 1160346
€5.54
€5.54
Tax included
Tax included
Items Available: 48
: 39
Suitable for all C-profiles with slot widths between 16 and 17 mm. Bracket, hot-dip galvanized steel screw, polypropylene pressing cup, halogen-free, light gray RAL 7035 color.
Features:
- Number of cables/pipes: 1
- Maximum tightening torque: 5 Nm
- For cable carrier profile with slot width: 16/17 mm
- Halogen-free
- With plastic cup
- Material: steel
- Hot dip galvanized surface
- Type of mounting: Profiled

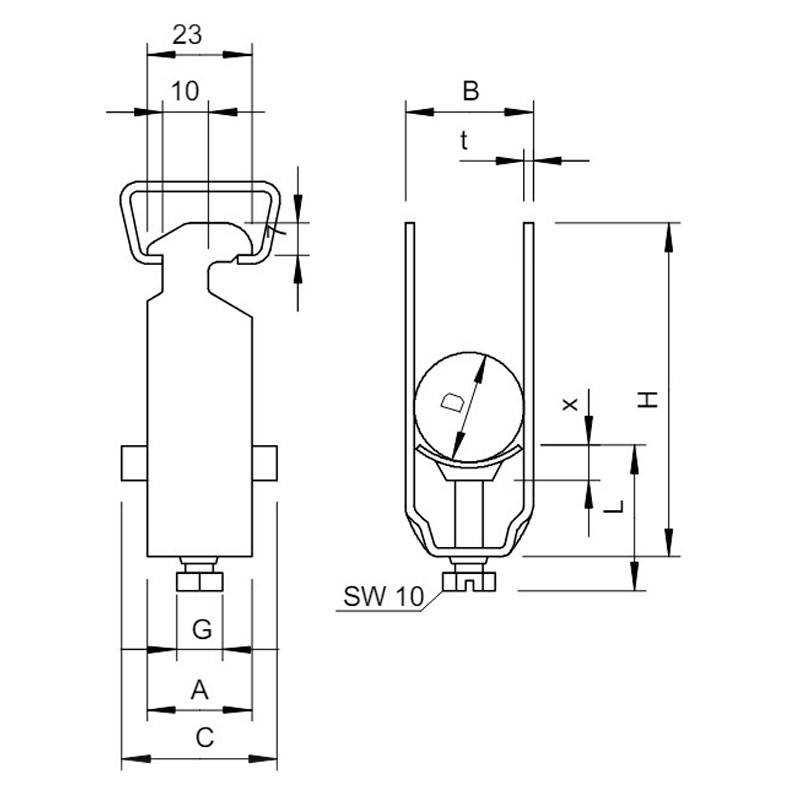

- Dimensions: 23x39x34xM8x66x34x2x5.5 mm (A-B-C-G-H-L-t-x)
There are no reviews
Data sheet
- Type:
- Cable brackets
