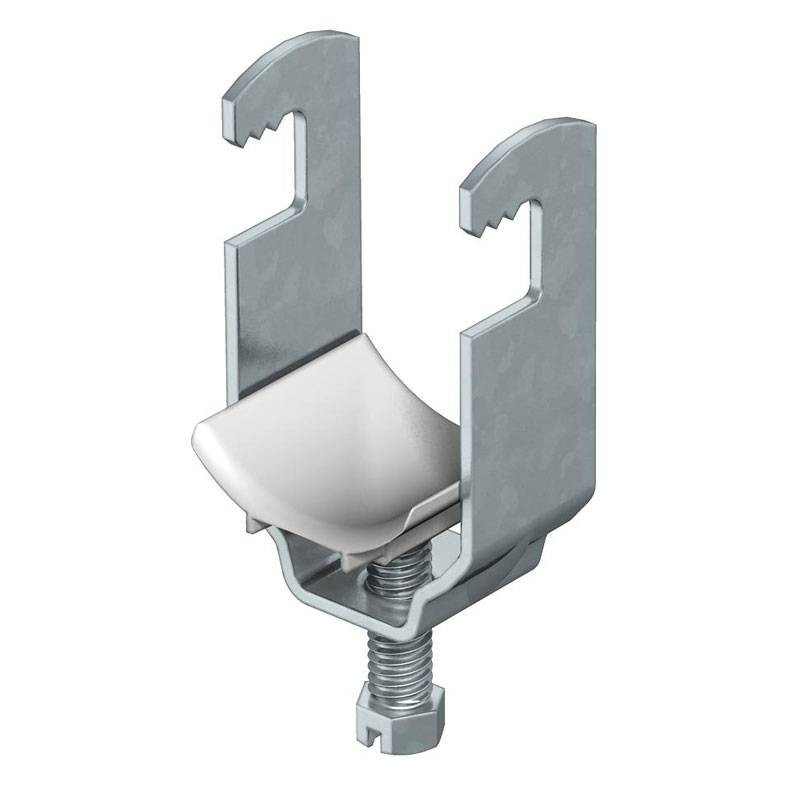

Obo cable bracket tightening 22/28 mm steel 1169289

Obo Bettermann
OBO 1169289 4012195070825

Obo cable bracket Min/max clamping range: 22/28 mm with the following features:



  • Number of cables/pipes: 1
  • Tightening torque: 3 Nm
  • Halogen-free
  • Material: Steel
  • Mounting type: Flat profile
  • Surface Hot-dip Galvanized



Suitable for flat, bracket and U-shaped irons with material thickness of 4-12 mm.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Obo cable bracket tightening 22/28 mm steel 1169289

€4.75
€4.75

Obo cable bracket tightening 22/28 mm steel 1169289

€4.75
Tax included
Items Available: 22
Further availability of the manufacturer

Obo cable bracket tightening 22/28 mm steel 1169289

€4.75

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Advantages:

  • Suitable for flat, bracket and U-shaped irons with material thickness of 4-12 mm
  • Hot-dip galvanized steel clip and bolt
  • Polypropylene pressure vessel, halogen-free, light gray RAL 7035 color




Features:

  • Number of cables/pipes: 1
  • Tightening torque: 3 Nm
  • Halogen-free
  • Material: Steel
  • Mounting type: Flat profile
  • Surface Hot-dip Galvanized
  • Min/max clamping range: 22/28 mm
  • For pipe diameter: 25 mm

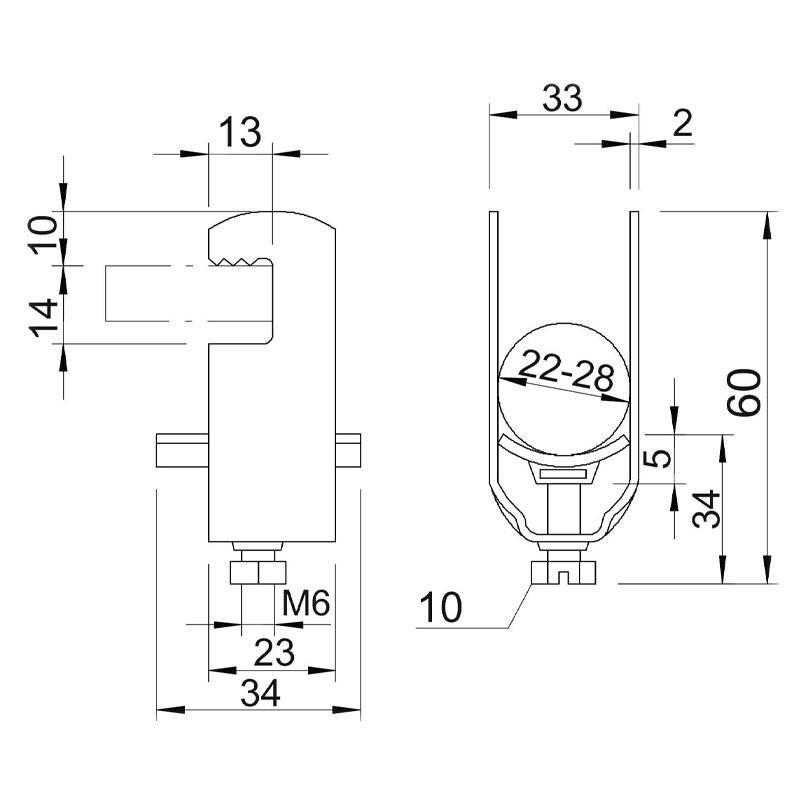

  • Dimensions: 23x33x34x13xM6x60x34x2x5 mm (A-B-C-E-G-H-L-t-x)

There are no reviews

Data sheet

Type:
Cable brackets
