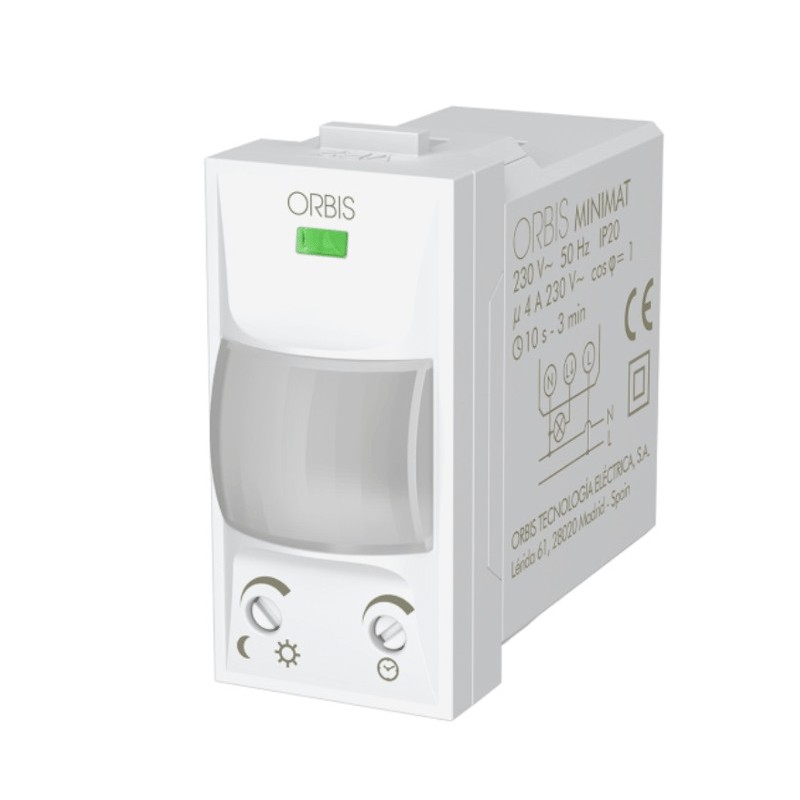

Orbis MINIMAT Presence detector Universal recessed 120° OB135312
ORB OB135312
8426709109981
Universal recessed Orbis presence detector. Usually used in public bathrooms to turn on the lights when a person is present. It has a timer and is compatible with Bticino, Vimar, Gewiss and Ave. Interchangeable fronts white, anthracite and tech.
€50.17
€50.17
Tax included
Tax included
Items Available: 99
: 14
Frequently bought together
Features :
- Bticino Axolute series
- Nominal voltage: 230V AC
- Rated frequency: 50Hz
- Contact rating: 5A at 230V AC
- Self-consumption: 7.3VA capacitive (about 1.1W)
- Type of contact: closing, with potential
- Operating temperature: from -10°C to +40°C
- Brightness range: 10-2000 lux
- Timing range: 10s - 3min
- Detection angle: 120
- Sensing range: Up to 7m 22 ° C
- Compatible plates: BTICINO (Living, Livinglight, Livinglight tech, Livinglight air, Axolute, Axolute air, Matix); VIMAR (Plana, Eikon, Arké); GEWISS (Chorus); AVE (Series 44)
- Degree of protection: IP20
- Supplied with three interchangeable white, anthracite grey and aluminium front panels
- Zero crossing" technology that guarantees a long life of the relay contacts and higher electrical performance.
Mi auguro che questi durino un po’ di più visto che li ho cambiati dopo 2 anni
Non ho squisito questo prodotto non posso dare opinione
Data sheet
- Type: Sensors detectors
