Advantages:



Expandable kit:

• Each household can have a maximum of 3 screens installed in the home.
• The kit can be expanded with 2 extra screens (Cod. 332353, 332354, 333253, 334253), because the external hand control supports a maximum of 3 screens. With an extra push-button panel (Cod. 331860), up to 5 additional monitors can be installed, for a total of 6 screens 3 per household.

Built-in WIFI:

• With the Bticino wifi video intercom you can answer the intercom and open your entrances with a simple click, via the free Door Entry Easykit App (available for Android and iOS). Goodbye keys and remote controls, you can open doors and gates with your smartphone. Just make sure WiFi is working.

Never miss a delivery again:

• With the Bticino connected video intercom, you can answer the intercom even when you're away from home, talk to the courier, and open the gate to deliver your packages.

Ready-to-use and easy-to-install kit:

• Installing the video intercom takes only a few minutes and requires no masonry work. Connect monitor and handset with the two-wire cable and open up to two inputs (door and gate). The two-wire cable is not included in the package, but the one already in the house can be used if it is in good condition and following the instructions.

Specifications of the parts in the Kit:

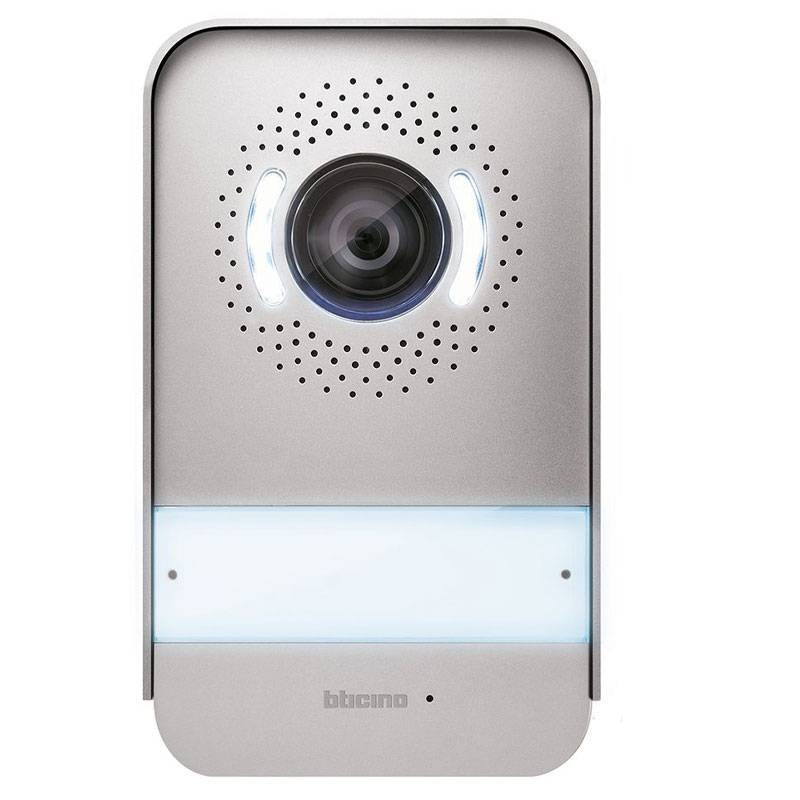

2-Wire Outdoor Station, Metal 331860:

• With 2 backlit call buttons
• Additional button compatible with 2-wire kit
• Rugged and durable with IP54
• Ruggedness rating IK07
• Adaptable button for one- or two-family homes
• Protective canopy and wide-angle (105-degree) color camera
• With LEDs for night vision
• With protective canopy
• Connection type Wired
• Number of conductors/wires 2
• Power supply (in V) 220
• Transmission type Analog
• CMOS collector type
• Material of outer plate Aluminum

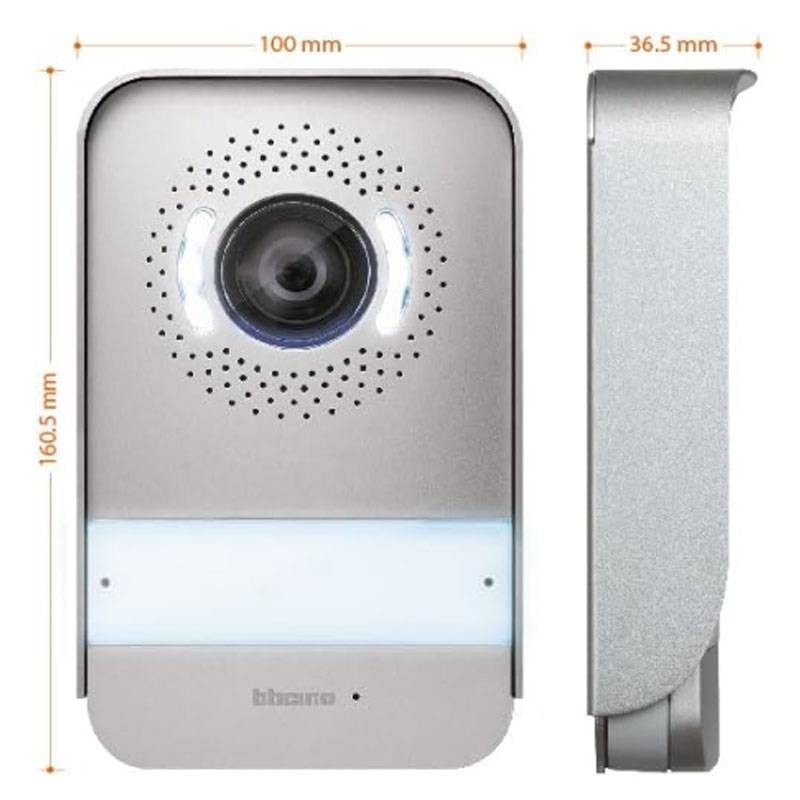

• Width of the outdoor unit (in cm) 10
• Height of the outdoor unit (in cm) 16
• Thickness of the outdoor unit (in cm) 3

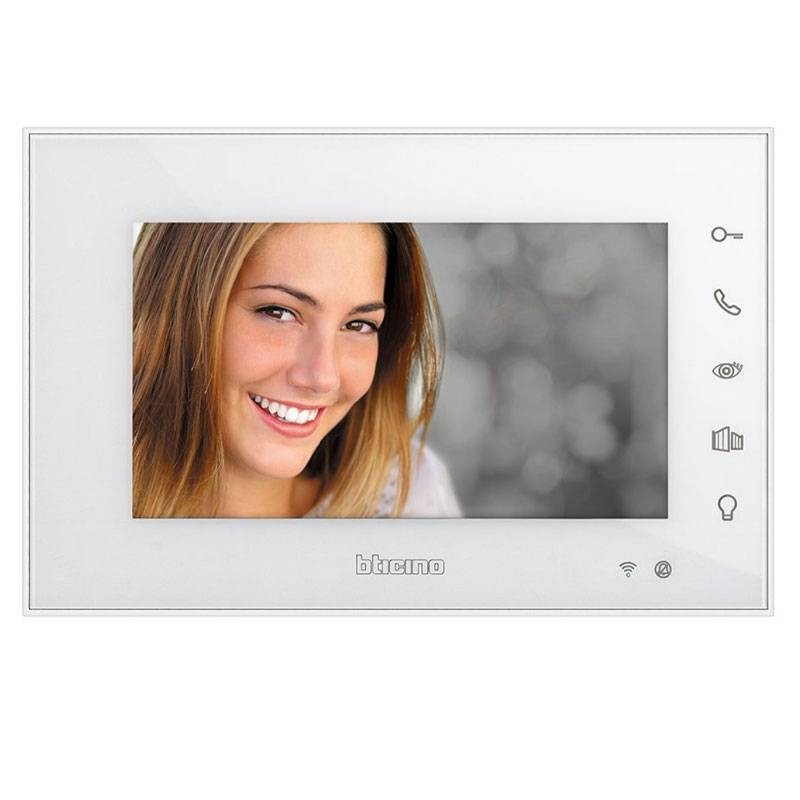

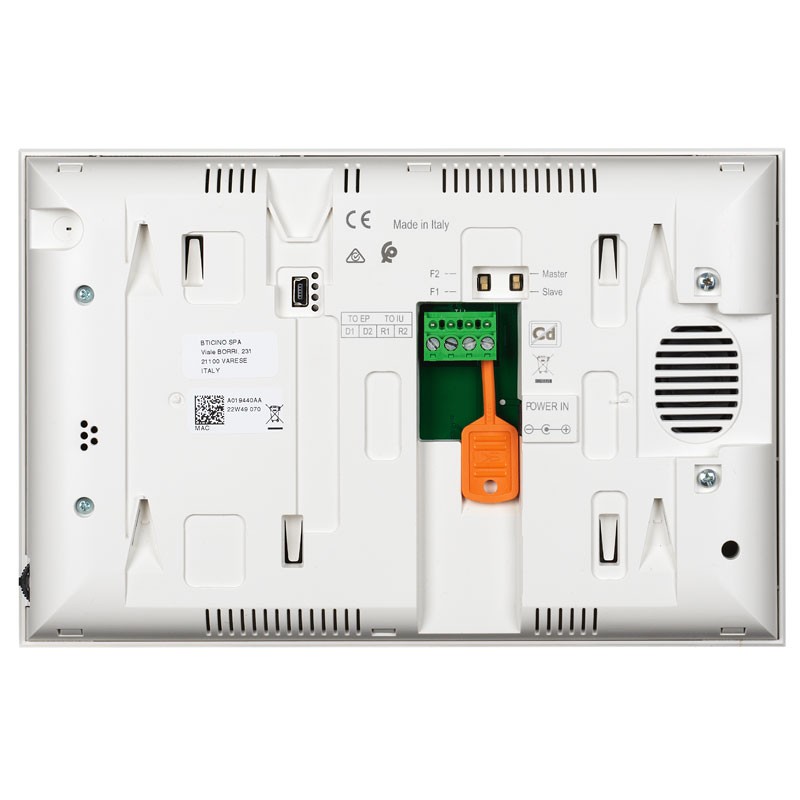

DIY indoor videophone Connected:

• Wall-mounted indoor monitor
• With Speakerphone
• Intercom
• White color
• Equipped with speakerphone with touch controls
• Equipped with 5 touch screen buttons available for: gate opening, door opening, answer/intercom
• Compatible with 2-wire video intercom systems from Bticino's DIY line
• Thanks to the wifi connection, it can also be managed from smartphones
• You can see who is ringing the intercom even while you are away from home
• System Type VIDEO PLUG-IN EASY
• 7-inch (16:9) color display
• 800x480 pixel resolution

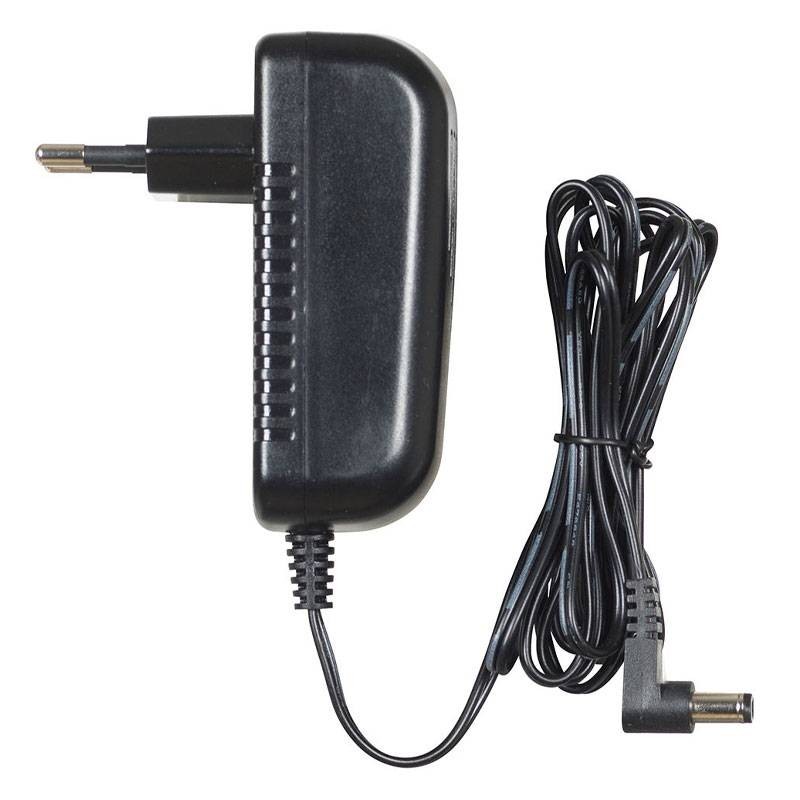

• Standard EU power plug
• Dimensions 31.7 x 22.9 x 11.5 cm
• Rated voltage 30 VDC
• Rated power 30W
• Cable cross section 2x0.5 mm2
• Installation height 160-165cm

Video intercom functions:

• Equipped with 5 touch screen buttons
• Gate opening
• Door opening
• Answer/intercom
• Camera power on
• Light button
• Ring volume
• Adjustable image brightness and color
