The maximum distance between internal monitor and external hand control is 100mt. The monitor power supply has a 30W plug-in plug and a 1.85mt long cable, expandable with special accessory included in the package.



Features:

• Indoor wall-mounted monitor
• With Speakerphone
• Intercom
• Black color
• Equipped with speakerphone with touch controls
• Equipped with 5 touch screen buttons available for: gate opening, door opening, answer/intercom
• Compatible with 2-wire video intercom systems from Bticino's DIY line
• Rated voltage 30 V DC
• Rated power (W) 30 W

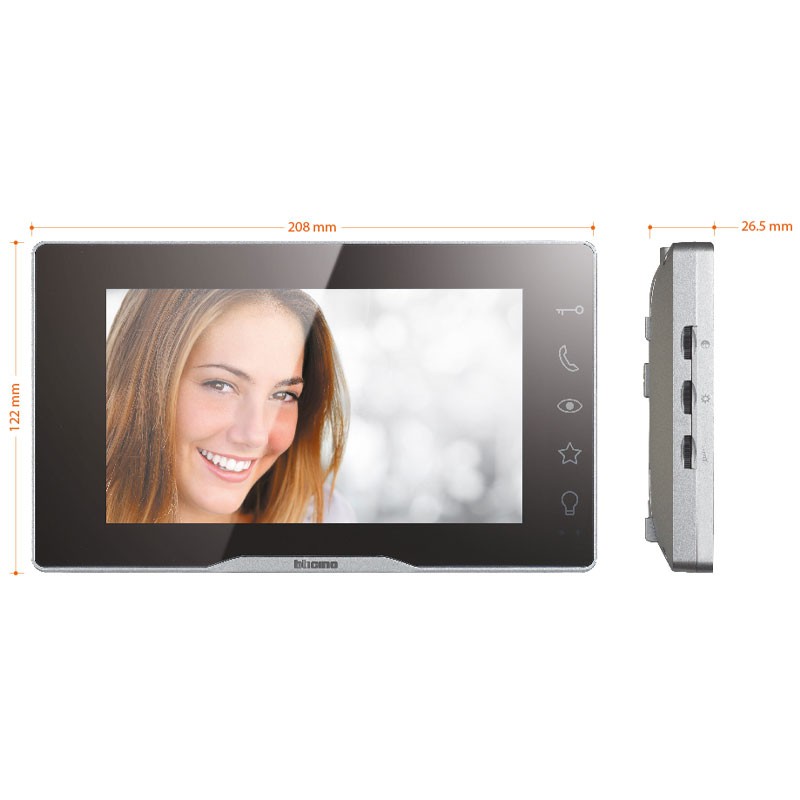

• Dimensions 208×122×26.5 mm
• Calls Up to 2
• 2-wire insertion
• Cable cross section 2 x 0.5 mm2
• Installation height 160-165 centimeters
• Operating temperature 5-40°C
• Resolution 800x480 pixels



Display controls and features:

• Color adjustment
• Brightness adjustment
• Volume adjustment
• Microphone
• 7" display
• Door open button
• Answer button / Intercom button (available only with additional indoor station)
• Door station power button / cycle button
• Gate opening button
• Light button
• Led indication on / off



Available functions:

• Gate opening
• Gate opening
• Intercom
• Door station auto power on
• Door station cycling
• Ringer mute
• Light on
• Audio and video adjustments



Note: At rest, door opening , gate opening and light commands will take effect on the main Door Station . Otherwise, during an audio video communication, they will take effect on the door station in communication.
