Bticino Video intercom Kit CLASSE100 V16B 2-Wire Two-Family 364622
BTI 364622
8005543631126

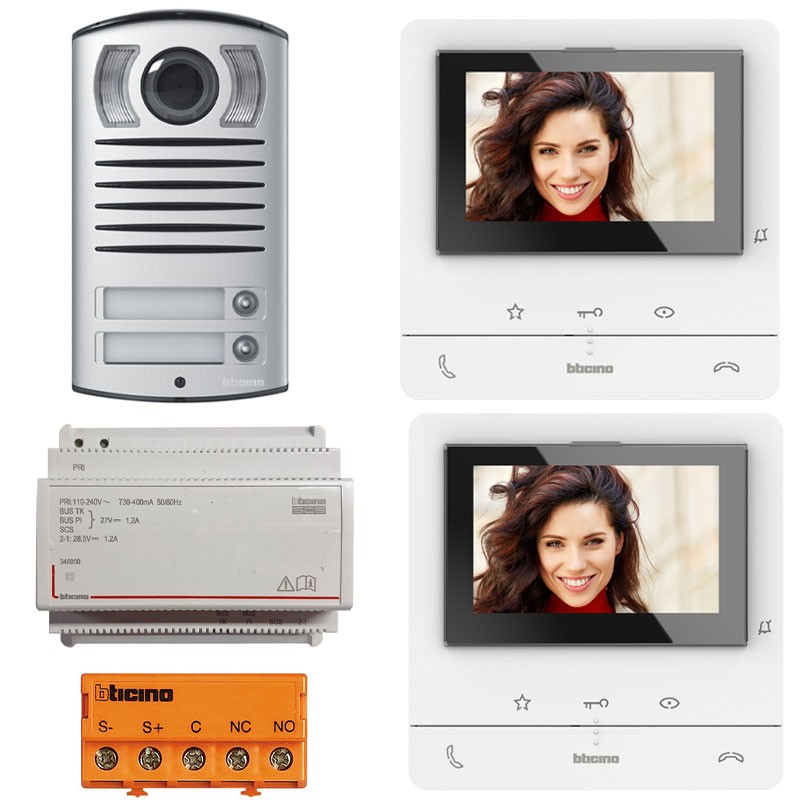

Bticino CLASSE100 V16B 2-Wire Video intercom Kit Hands-free Two-Wire model, consisting of:
- 1 Linea 2000 button panel with color camera and 2 call buttons code 343032
- 2 video intercoms CLASSE 100V16B code 344652
- 1 power supply unit 6 DIN modules code 346050
- 1 relay module for electric locks not controlled by BUS code 346250
Wall-mounted installation with bracket provided or table-top installation with stand (code 344692), to be purchased separately.
Bticino Video intercom Kit CLASSE100 V16B 2-Wire Two-Family 364622
€586.76
€586.76
Tax included
Tax included
Items Available: 9
: 1
Frequently bought together
General advantages:
- The handset meets the IK07 ruggedness rating, IP54 degree of protection.
- The video door phones have a 5-inch color LCD display and 2 physical buttons for controlling the main video door phone functions-answering and closing the call-plus 3 touch buttons that allow activation of the electric lock, activation of the door station/cycling, and customization of a quick action that the user uses most frequently-e.g., stair light control, intercom, additional electric lock activation, and general activations
- They are equipped with a side toggle for adjusting: display color, brightness and contrast, speech volume and call tone volume
- There is a signaling LED for call mute
Technical specifications of kit parts:

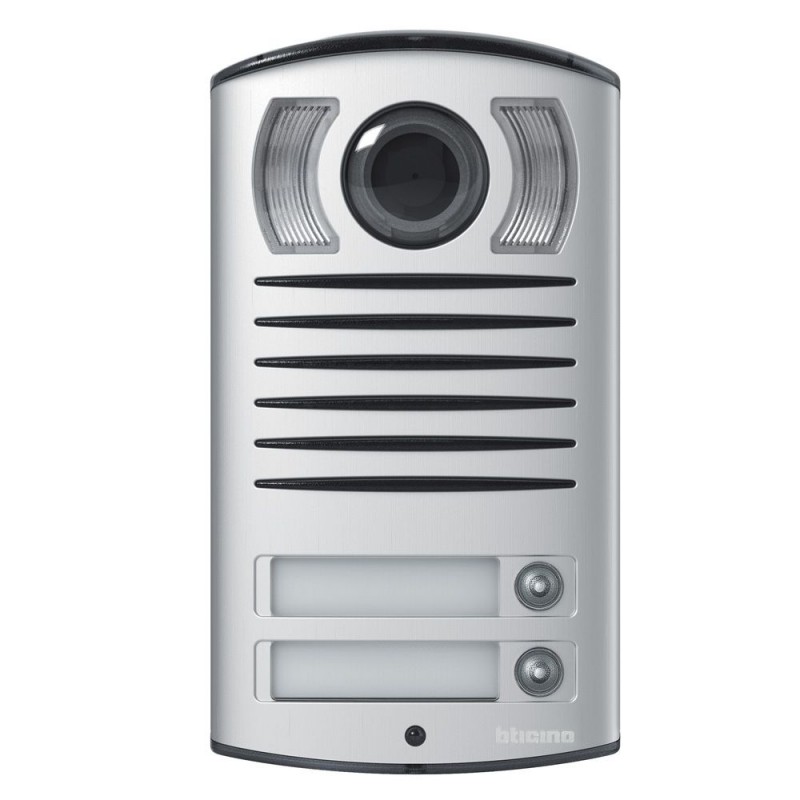

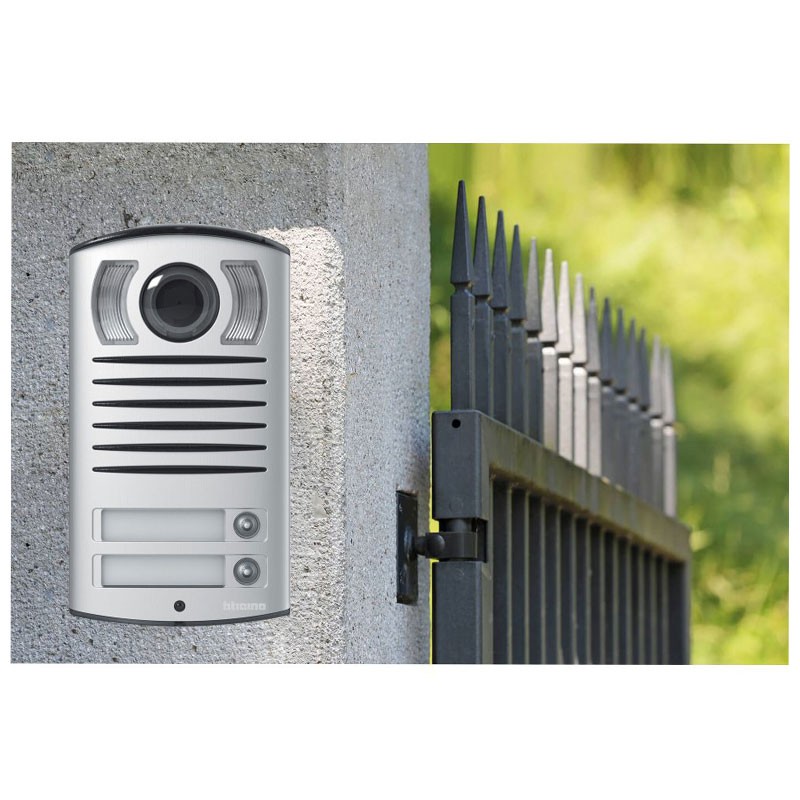

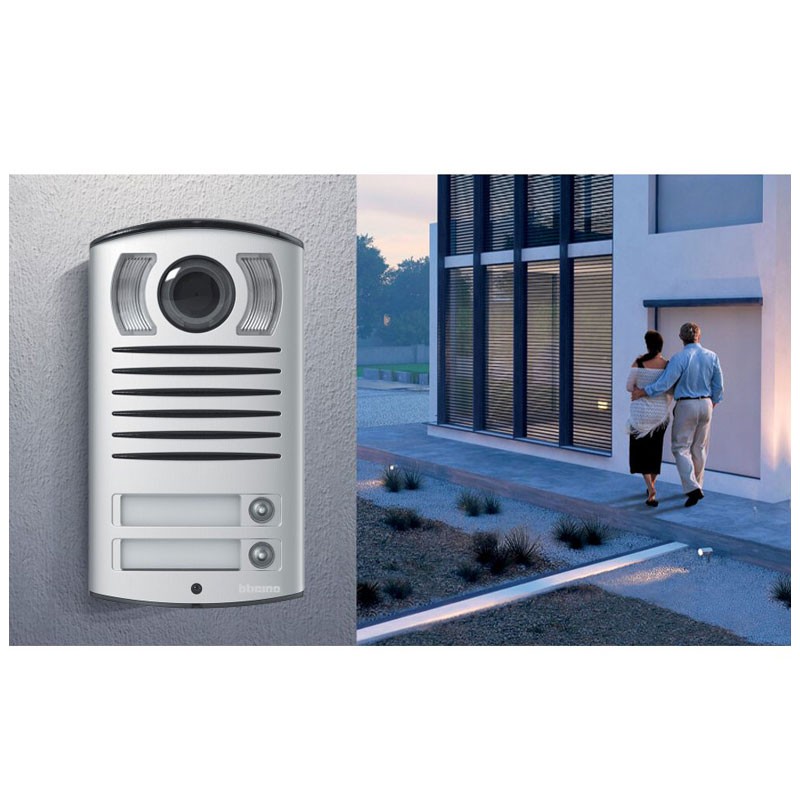

1 Linea 2000 push button panel with color camera and 2 call buttons code 343032:
- Linea 2000 button panel
- 2-wire technology
- Wall-mounted installation with aluminum front panel
- Color camera and white LED lighting for nighttime shooting
- Two call buttons
- Camera swivels on horizontal and vertical axes by +/- 15°
- Allows activation of an electric lock connected directly between terminals S+ and S- (18 V 4 A impulsive, 250 mA holding, 30 Ohm max)
- Green LED name tag illumination
- IP54 degree of protection
- Ruggedness grade IK07.
- IP54 degree of protection

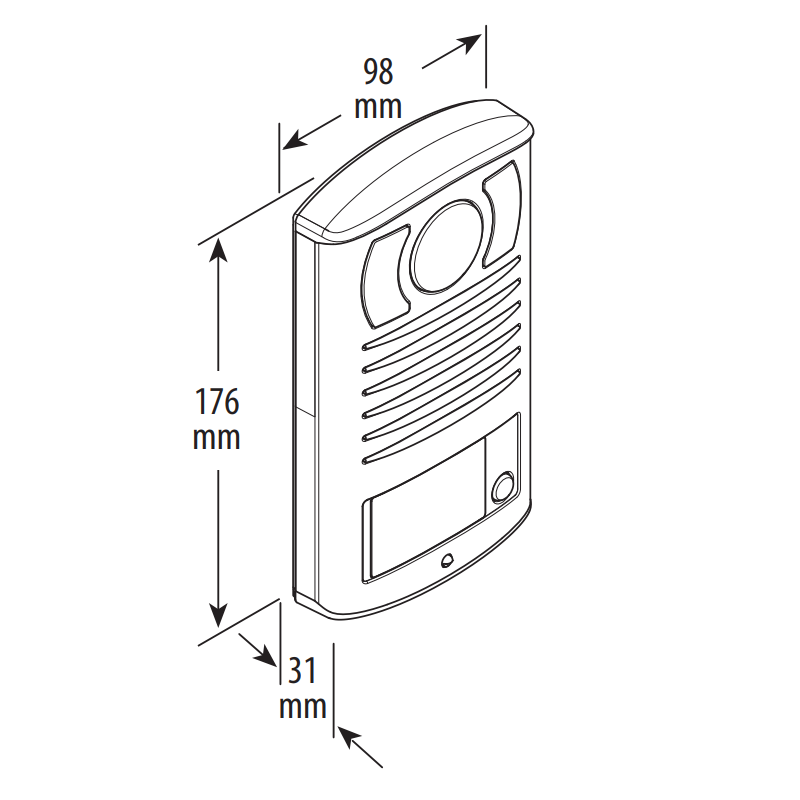

- Dimensions 176x98x31mm
- Height 176mm
- Width 98mm
- Depth 31mm
- Calls 2
- System type 2 wires
- Ruggedness grade IK07
- Recommended installation height 160-165cm
- Operating temperature: -25°/+70°C

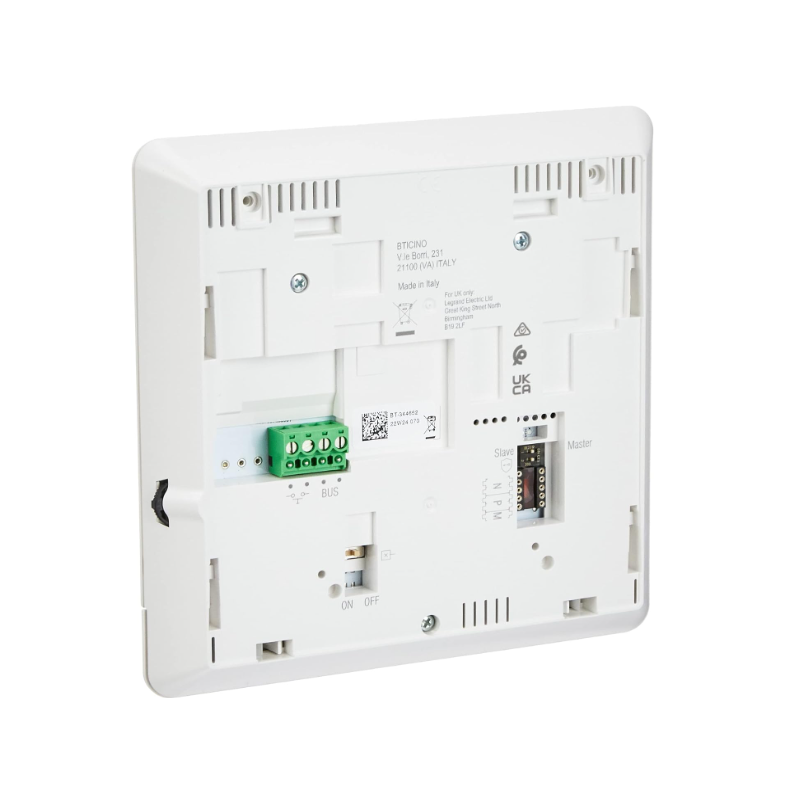

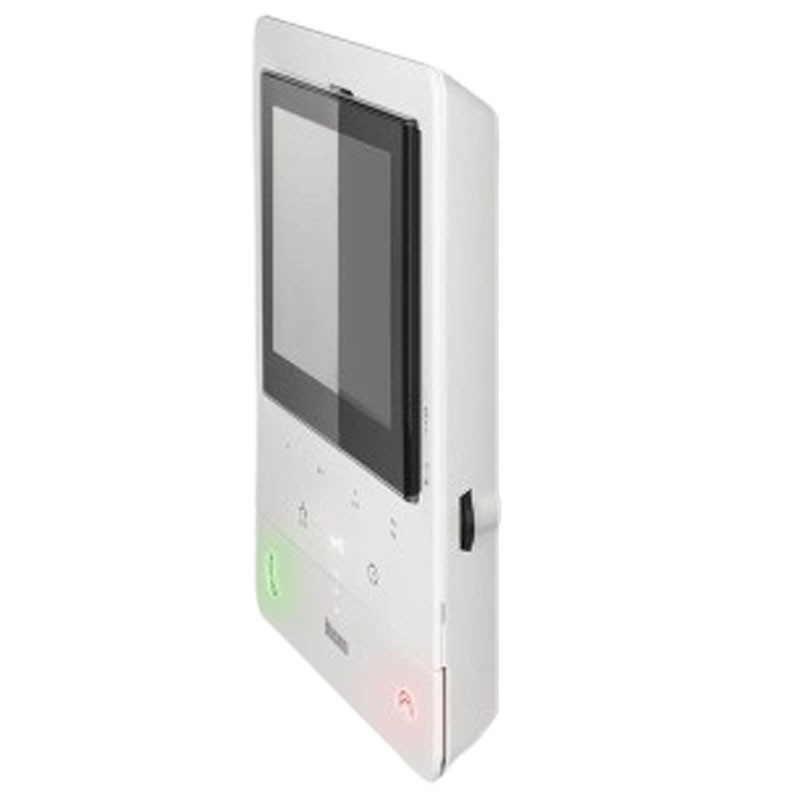

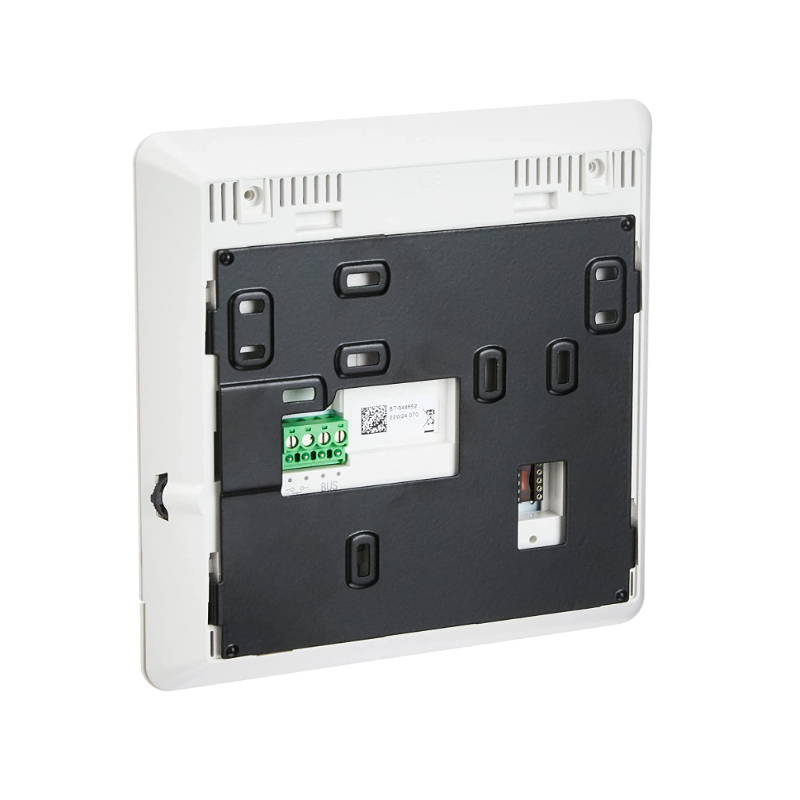

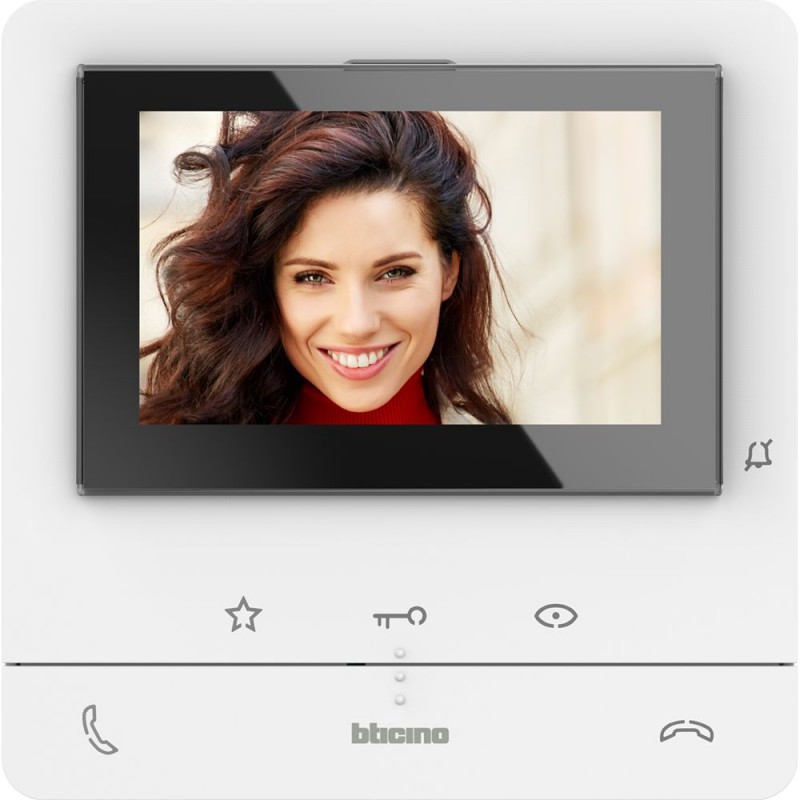

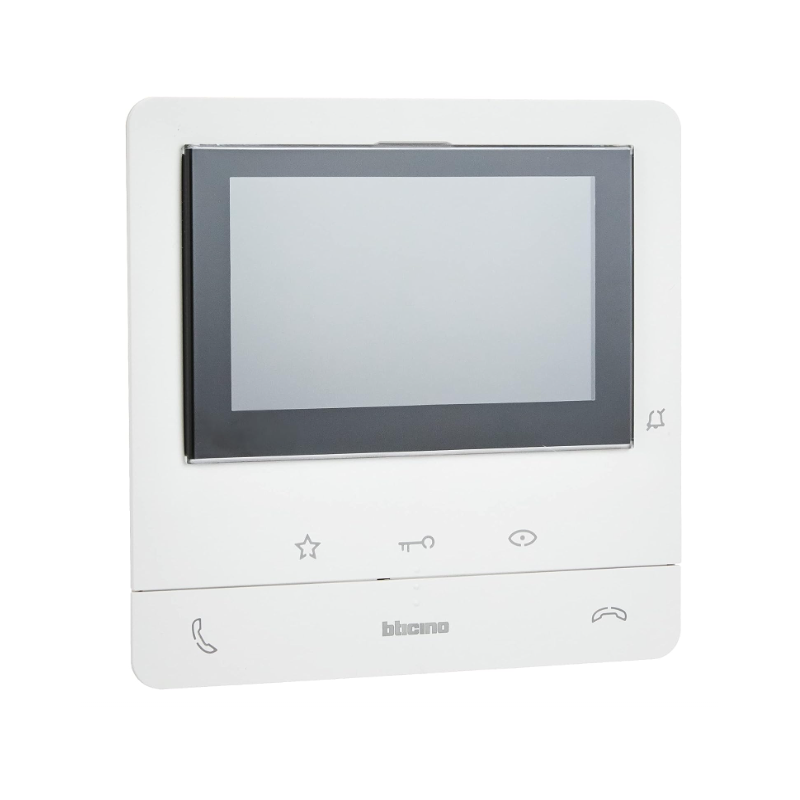

2 video intercoms CLASS 100V16B code 344652:
- Voltage: 20/27V

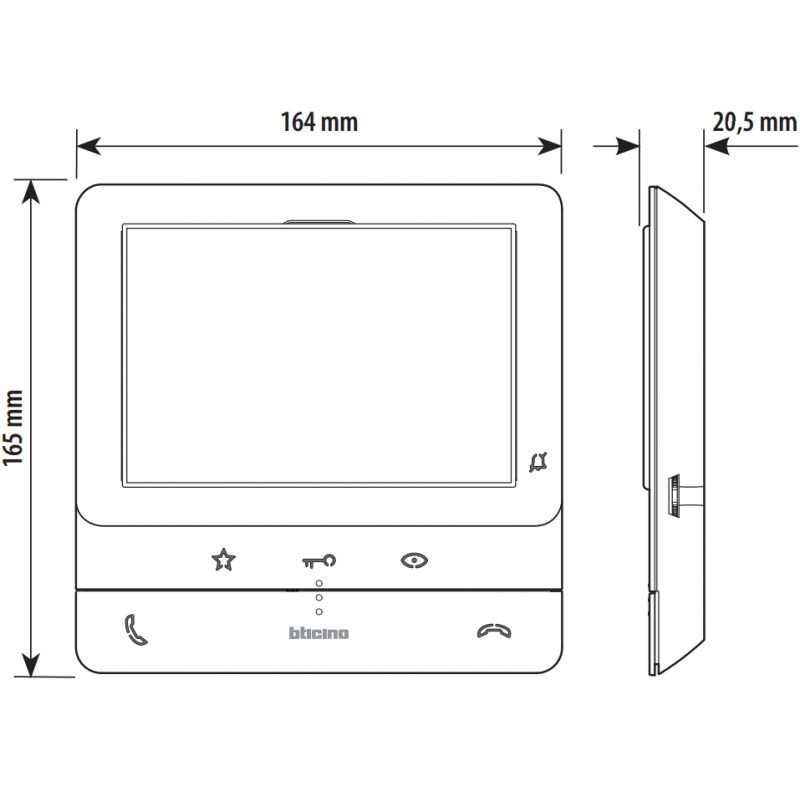

- Dimensions: 165x164x20.5mm
- Height: 165mm
- Width: 164mm
- Depth: 20.5mm
- Maximum cable cross section: 2x1mmq
- Installation type: 2 wires
- Recommended installation height: 160-165cm
- Operating temperature: -5 /+40°C
- Resolution: 800 x 480
- Wi-Fi: No
- Teleloop: Yes
- Color: White

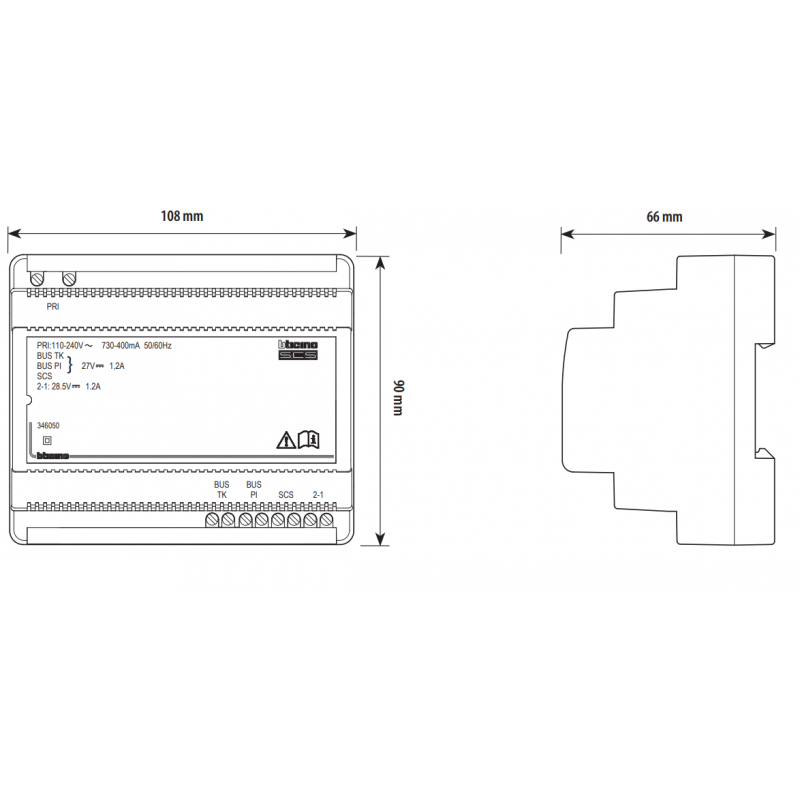

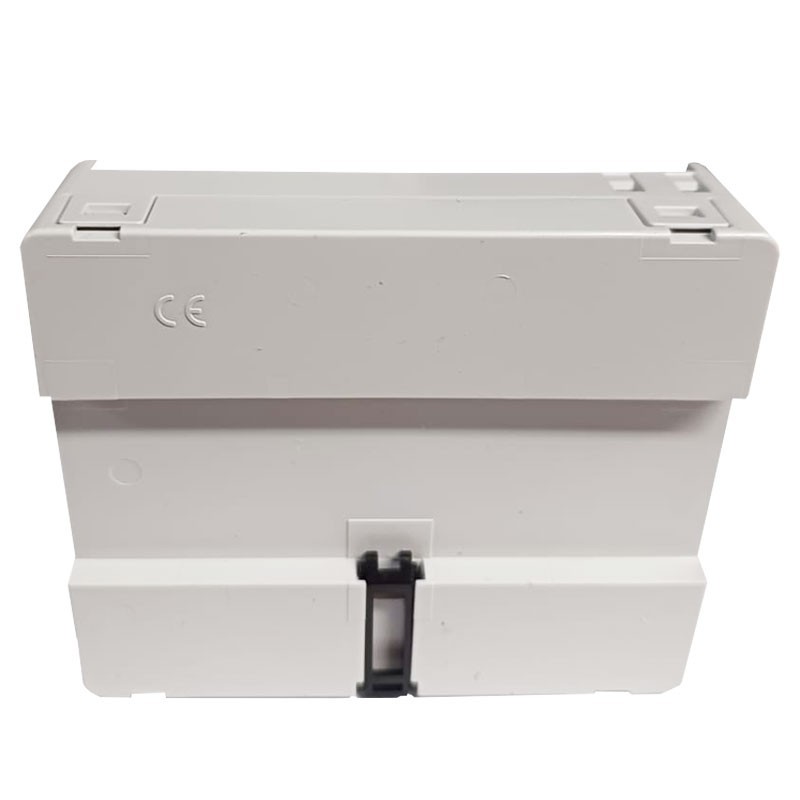

1 power supply 6 DIN modules code 346050:
- Power supply for 2-wire audio and video systems in 6 DIN modular housing
- Power supply 110 - 240 Vac, frequency: 50/60 Hz
- Provides two safety extra-low voltage supplies at the output (one on the 3 terminals BUS TK, BUS PI and SCS, one on terminal 1 - 2);
- To be used alternately and NOT simultaneously
- The video adapter is built into the device (item 346830 should therefore not be used), so it is possible to avoid the use of the A/V node (F441) or multi-channel matrix (F441M) if from the BUS PI and BUS TK terminals a total of three leads are not exceeded (MAX 2 PI risers + 1 TK or 1 PI riser + MAX 2 TK)
- It can also be used as an additional power supply (output 1 - 2) for local power supply of indoor stations or prearranged outdoor stations (in this case, no other output can be used)
- The device is electronically protected against overload and short circuit
- It is a double-insulated SELV safety device
- Installation must be carried out in accordance with current regulatory rules
- The device must NOT be configured
- Attention: the outputs (BUS PI), (BUS TK) and (SCS) can be used at the same time while respecting the maximum total power consumption of 1.2 A
- After overload or a short circuit disconnect the power supply for 5 minutes
- Footprint 6 modules
- Operating temperature: -10/+55°C.

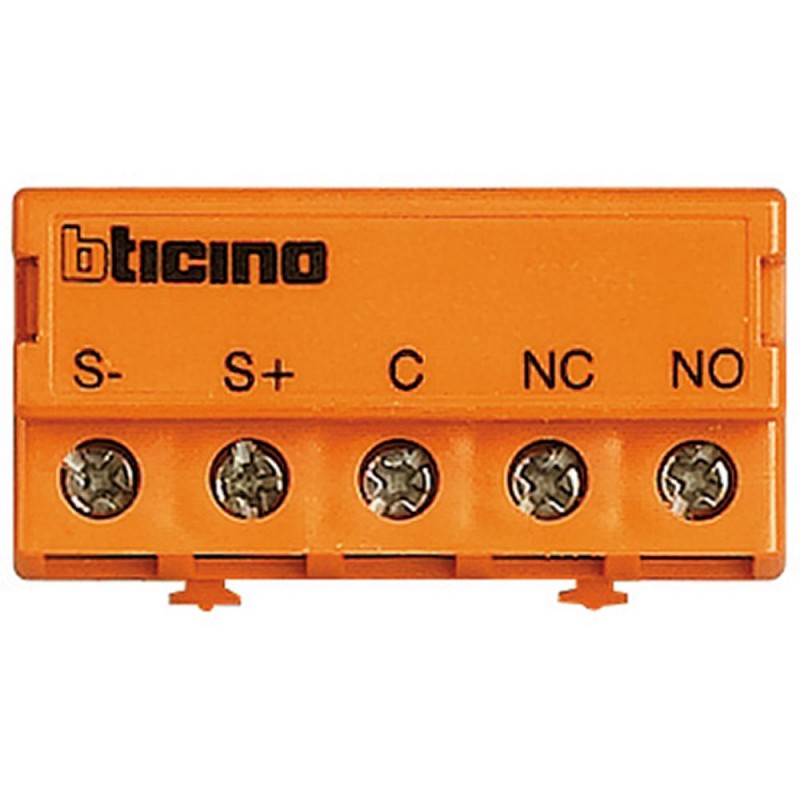

1 relay module for electric locks not managed by BUS code 346250: Relay module for gate opening to be combined with prearranged external pushbuttons. Allows opening of locks NOT operated by BUS via the door station. NO-NC contact type, 2-wire system type.
Produit conforme au descriptif et de trés bonne qualité, je recommande.
Top Qualität zum günstigen Preis!!
Ottimo prodotto per una bifamiliare.....attenzione per configurarlo mancano all'interno i configuratori da acquistare a parte
Data sheet
- KIT: Video Intercom Kits
- Model: Intercom function
- System: 2-Wire
Two-family house
