Bticino power supply for audio and video systems 2 WIRES 1,2A 346050
BTI 346050
8005543545324

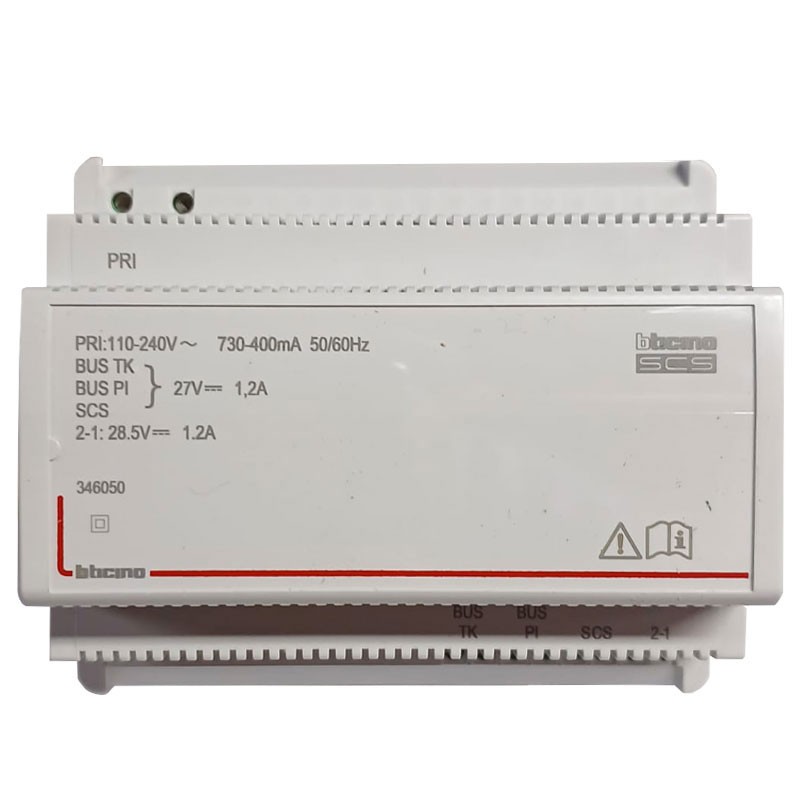

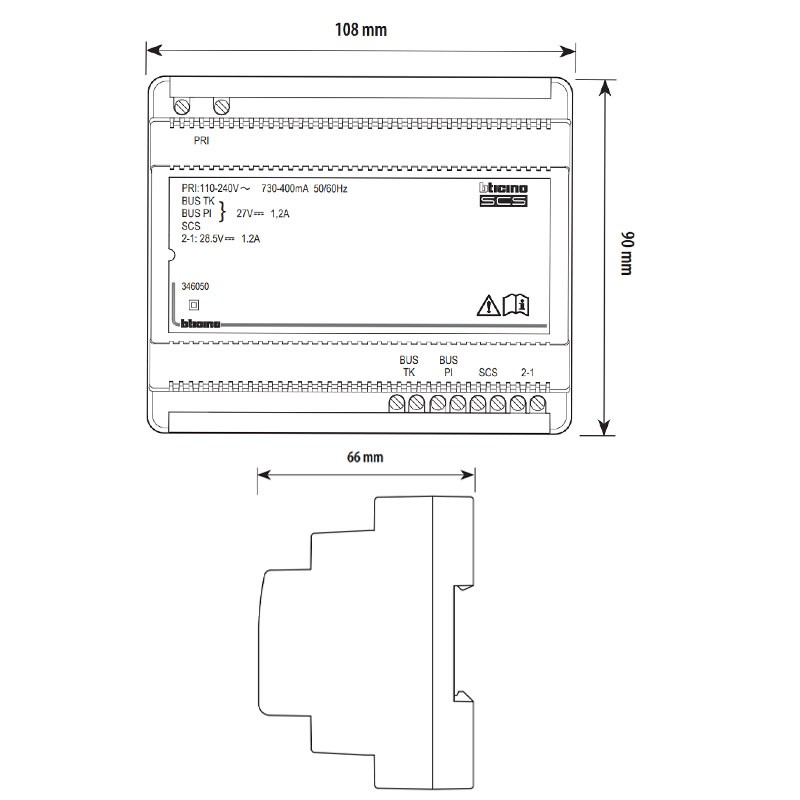

Bticino power supply for audio and video systems 2 WIRES 1,2A in 6 DIN modular housing, it supplies two safety extra-low voltage outputs.
Bticino power supply for audio and video systems 2 WIRES 1,2A 346050
€157.74
€157.74
Tax included
Tax included
Items Available: 29
: 4
Features:
- Power supply 110 - 240 Va.c. @ 50 - 60 Hz
- Provides two safety extra-low voltage power supplies at the output (one on the 3 BUS TK, BUS PI and SCS terminals, one on terminal 1 - 2); to be used alternately and NOT simultaneously
- The video adapter is integrated in the device (therefore article 346830 must not be used), therefore it is possible to avoid using the A/V node (F441) or the multi-channel matrix (F441M) if the BUS PI and BUS TK terminals do not exceed a total of three branches (MAX 2 PI risers + 1 TK or 1 PI riser + MAX 2 TK)
- It can be used also as supplementary power supply (output 1 - 2) for local power supply of apartment stations or prearranged door units (in this case no other output can be used)
- The device is electronically protected against overload and short circuit
- It is a double-insulation safety device SELV
- The installation must be carried out in accordance with the regulations in force
- The device must NOT be configured
- ATTENTION: the outputs (BUS PI), (BUS TK) and (SCS) can be used simultaneously respecting the maximum total absorption of 1.2 A. After an overload or short circuit, disconnect the power supply for 5 minutes.
Alimentatore necessario per far funzionare videocitofono 300 EOS. nessun problema con l'articolo.
Il manque une précision:
Ce produit remplace les références suivantes: 346000 et 346830
C'est très important.
CONFEZIONE OTTIMA, INSTALLATO E FUNZIONANTE.
Prodotto corrispondente alla descrizione. Soddisfatto.
Easy to install and a very fast shipment.
Data sheet
- Type: Power supplies
