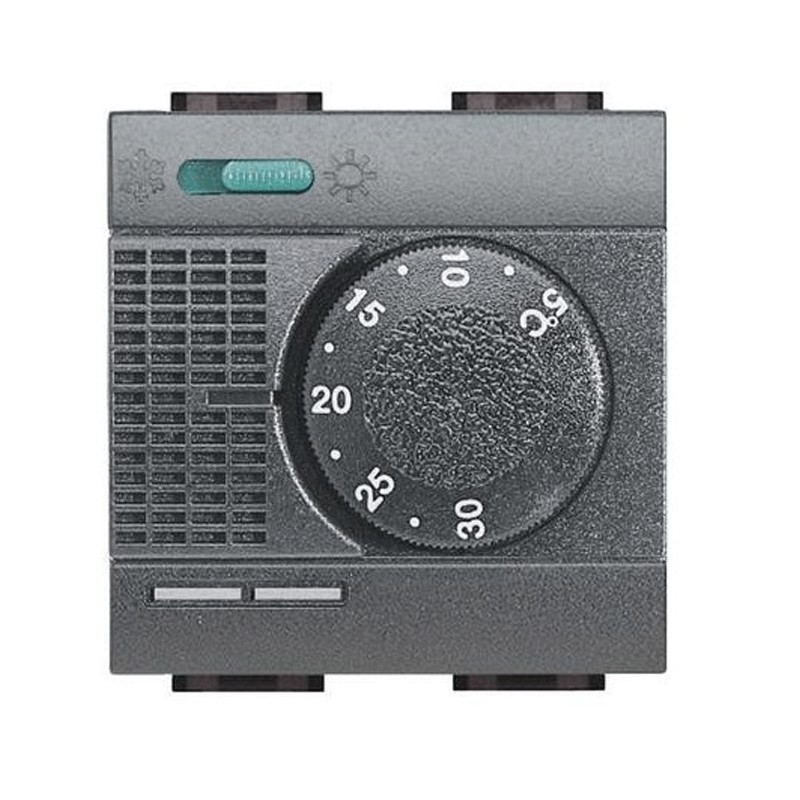

Room thermostat Bticino LivinghLight Anthracite L4442
BTI L4442
8012199082691
Bticino Livenglight electronic room thermostat with summer, winter switch, relay output contact C-NO 2A 250V, power supply 230 Vac, anthracite gray.
Room thermostat Bticino LivinghLight Anthracite L4442
€187.87
€187.87
Tax included
Tax included
Items Available: 1
Frequently bought together
Features:
- Bticino Livinglight series
- Power supply: 230 Vac ± 10 % 50/60Hz 0.6 W
- Output contacts: 2 A cosφ 1 - 0.5
- Ambient temperature adjustment range: 5 - 30 °C
- Accuracy: ± 0.5 °C
- Recommended installation height from ground: 1.5 m (away from heat sources and air currents)
- Do not install in boxes where dimmers are present
- Electrical connection by means of terminals for cables: Max Ø 2.5 mm2
- For heating and air conditioning systems: boilers, fan-coil units, air conditioners, fan coil units
- Ready for: external "summer/winter" switch
- Output contact: switching
- 2 built-in modules
These thermostats control the room temperature by means of an electronic sensor that controls an output relay.
On the front of the devices there are:
- The regulation knob for the setting of the selected temperature
- The LEDs for indicating the operating status
- the switch for "summer/winter" selection
Exactamente lo que necesitabamos sin ninguna incidencia.
come immaginavo, come volevo, in linea con le mie aspettative
Data sheet
- Type: Thermostats
- Model: Without display
- Main Commands: Thermostats
