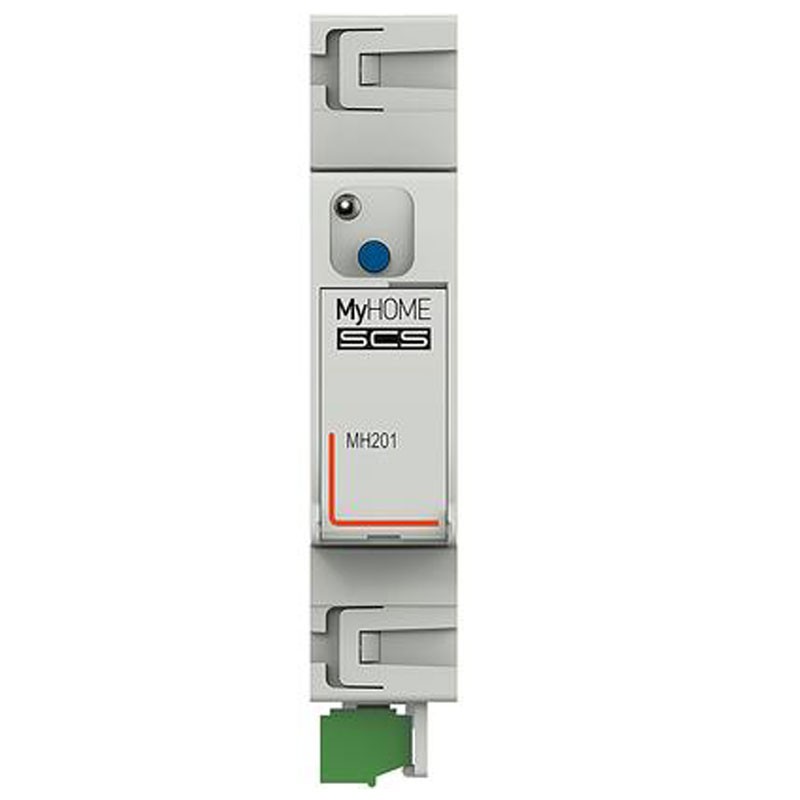

Bticino 1 module IP scenario module for Hotel rooms MH201
BTI MH201
8005543498033
Bticino Hotel Room Management IP scenario module, with the following features:
- Dimensions: 1 DIN module
- Voltage 27 Vdc
- Current In 30 mA
- Absorption: 30 mA
- Operating temperature: 5 - 40 °C
Bticino 1 module IP scenario module for Hotel rooms MH201
€76.31
€76.31
Tax included
Tax included
Items Available: 21
: 14
The module manages scenarios related to hotel rooms and works as a gateway for the Configuration and Supervision software. It is necessary to install one for each room or zone. Connection on SCS-BUS or ethernet network.
The IP scenario module is a device that is part of the hotel offer and is responsible for the management of the room and common areas. One MH201 must be used for each room or common area. For installations with more than 100 rooms or common areas, the IP Server F458 must be used in addition.
Configuration: Scenario configuration is possible via the "MyHOME_Suite" software: Up to 50 scenarios can be stored. Also via the software you can change the basic settings of the device:- Name: max. 16 characters- Open Password: basic 12345 (max. 9 characters).
Commissioning: Pressing the button until it starts blinking green sets the configuration of the device with the fixed IP address: IP 192.168.1.5 Subnet Mask 255.255.255.0
Its main functions are
- Badge management: management of room accesses (stored badges). With the supervision software it is possible to manage the memorization of the badges (if the external reader is present) that allow the door opening with two types of profiles (Users and Service). To each stored badge it is possible to associate an end of validity date, 3 access time profiles, and a maximum number of accesses. The validity date can be associated only for user badges and not for service badges. The access time profiles and the maximum number of accesses can be associated only to the common areas. For further details please refer to the manual of the supervision software.
- Management of room functions: 1) Management of the MAKE UP ROOM. If inside the room with the appropriate command (LN4653-H4653-0 675 93) the MUR is pressed the IP scene module updates the signaling to all the displays (LN4651-H4651-0 675 91) and also signals to the supervision software the event that has occurred. Other devices can also send the MUR signal via the CEN operating mode.
- DO NOT DISTURB management. If the DND key is pressed inside the room with the appropriate command (LN4653-H4653-0 675 93), the IP scene module updates the signaling to all displays (LN4651-H4651-0 675 91) and also signals the supervisory software about the event that occurred. Other devices can also send the MUR signaling via the CEN operating mode.
- Room alarm management. If an alarm is triggered (e.g. bathroom tie rod) the device signals it to the supervision software, where it will then be reset. If enabled, the signal will also be sent to the out-of-door display.
- Management of room contacts. Technical contacts to give information and alarm on the supervision software (e.g. window opening, refrigerator door).
- Management of the remote thermostat contact.
- Presence management. The presence in the room is signaled by the badge pocket (LN4849-H4648-0 675 66-05 727 36-05 722 36), the IP scene module sees this signaling and propagates it to all the signallers (LN4651-H4651-0 675 91) and will also signal it to the supervision software.
prodotto corrispondente alla descrizione....
Ottimo rapporto qualità prezzo se cercate un gateway per il vostro impianto my home da comandare via Raspberry Pi e home assistant
Soddisfa le aspettative, esattamente quello di cui avevo bisogno.
Utilissimo per interfacciare OpenHAB e scs bus
ottimo, collegato a openHAB e' possibile controllare completamente l'abitazione
