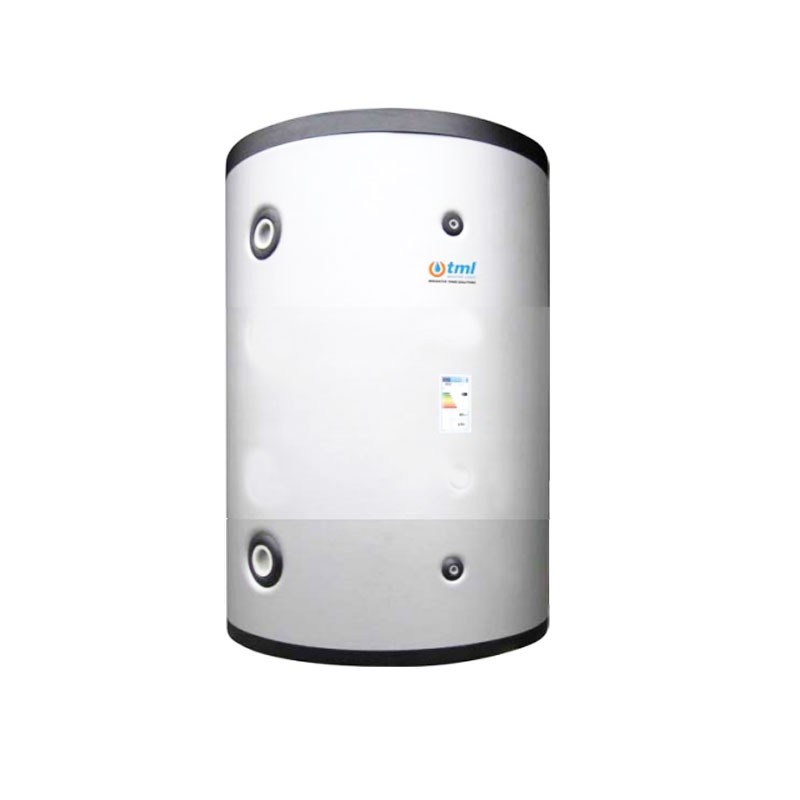

TML ACF hot/cold water accumulator 50 liters ACF00050R
TML ACF00050R
TML ACF hot/cold water storage tank, capacity 50 liters, connections (Gas): 1/2 inch, ErP class C, suitable for storage of both hot and cold technical water, equipped with large connections to allow high flow rates.
Suitable for systems with heat pumps.
Insulated with anti-condensation insulation with low heat loss.
TML ACF hot/cold water accumulator 50 liters ACF00050R
€268.04
€268.04
Tax included
Tax included
Items Available: 11
: 2
Thermal flywheel for storing both hot and cold technical water, equipped with large connections to allow high flow rates to flow. In addition to its function as a thermal flywheel, this unit also performs the function of a hydraulic separator by making the flow rate of the heat source independent of those of the system in which it is installed.
The heat transfer fluid contained in the tank must operate in a closed circuit (i.e., oxygen-free) in order to avoid corrosive phenomena. Insulated with anti-condensation insulation with low heat loss.
Features:
- Material Carbon steel S 235 Jr
- Internal protective treatment Rough
- External protective treatment Painting with anti-rust and industrial enamel
- Operation (P max. / T max.) 6 bar / -10 ÷ + 95 °C
- Capacity 50 liters
- Insulation : 20 mm thick rigid polyurethane + PVC : fire resistance class B3 (DIN 4102)
- Reference standard Directive 2014/68/EU (PED) Art. 4 Par. 3 (pressure equipment) - Directive 2009/125/EC (Energy related Products).
- Rigid polyurethane insulation and PVC coating.
- Insulation thickness 20 mm
- ErP class C
- Dispersion S 55.8W
- Actual capacity 47 liters
- Dimensions: Diameter 300 mm - Height 750 mm
- Outer diameter 350 mm
- Weight 18 kg
- Connections (Gas): 1/2 Inch
There are no reviews
Data sheet
- Type:
- Accumulators
- Capacity:
- 50 Liters
- Energy class:
- C
