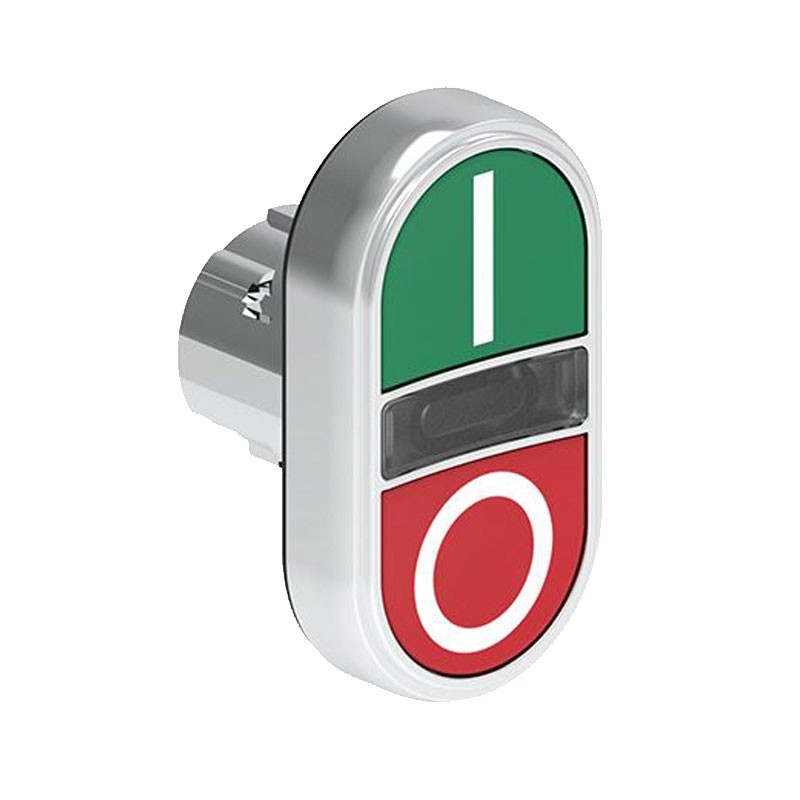

Lovato Double-touch Actuator Spring return I-0 Green/Red LPSBL7123

Lovato
LOV LPSBL7123 8013975294635

Lovato Platinum ouble-touch Actuator Spring return Green/Red I-0 (without fixing base to add separately LPXAU120M), both impulse, diameter 22 mm.

Accessory contacts LPXC10 / LPXC01.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Lovato Double-touch Actuator Spring return I-0 Green/Red LPSBL7123

€20.86
€20.86

Lovato Double-touch Actuator Spring return I-0 Green/Red LPSBL7123

€20.86
Tax included
Items Available: 1
Further availability of the manufacturer

Lovato Double-touch Actuator Spring return I-0 Green/Red LPSBL7123

€20.86

Buy it within and receive it from Thursday, 12 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Button body made of zamak
  • Plastic parts made of polyamide
  • Force per actuation: <0,5kg (operator)
  • Mechanical life: double buttons: 1.000.000 cycles - selectors: 1.000.000 cycles
  • Degree of protection (IEC) IP66, IP67 and IP69K
  • Without fixing base to add LPXAU120M
  • Degree of protection (UL) Type1, 2, 3R, 4, 4X, 12, 12K
  • Operating temperature min °C -25 - max °C +70
  • Storage temperature min °C -40 - max °C +85
  • Classification ETIM 8.0 EC000221 - Panel-mounted pushbutton.

There are no reviews

Data sheet

Type:
Buttons
Degree of protection:
IP67
