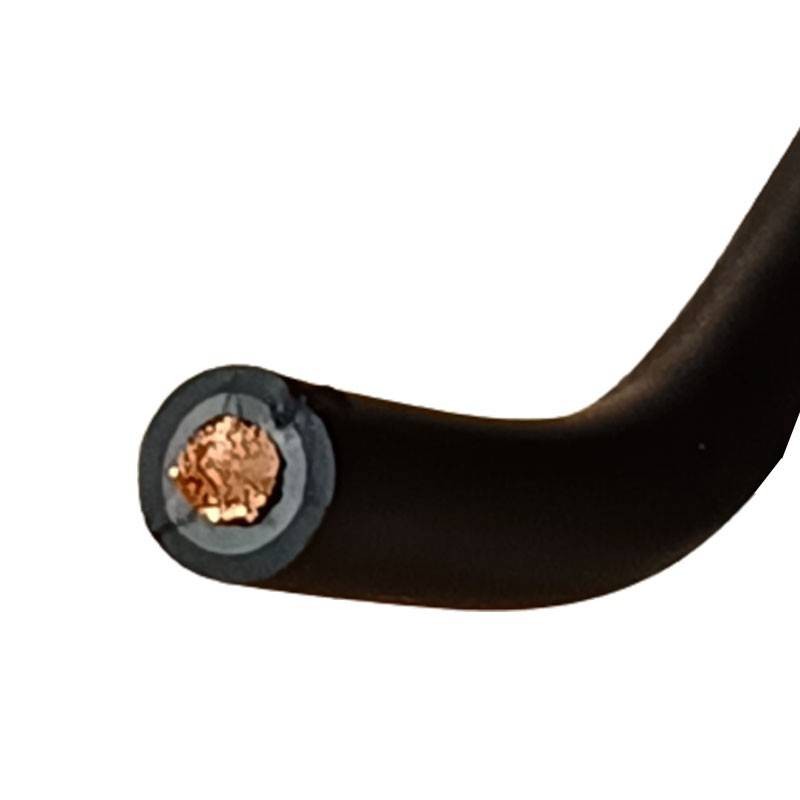

Low voltage flexible cable H07RN-F 1x150 sq. mm black
9X9 H07RNF1X150
Low voltage flexible cable H07RN-F 1x150 sq mm black with the following characteristics:
- Conductor diameter: 15.4 mm
- Insulation thickness: 2 mm
- Sheath thickness: 3.2 mm
- Max outer diameter: 31.4 mm
- Max electrical resistance at 20 degrees: 0.129/km
- Water resistant
Flexible energy cable, rubber insulated with polychloroprene (neoprene) sheathing. Good resistance to mechanical stress, good resistance to mineral oils and greases, chemical and weathering agents. Flame retardant.
Sold by the meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Low voltage flexible cable H07RN-F 1x150 sq. mm black
€24.13
€24.13
Tax included
Tax included
Items Available: 233
: 187
Two-year warranty
Characteristics:
- Rated Uo/U voltage: 450/750 V AC (600/1000 V DC).
- Maximum operating temperature: 60°C (up to 85°C for fixed and protected installation)
- Minimum operating temperature: -40°C (in the absence of mechanical stress)
- Minimum installation temperature: -25°C
- Maximum short-circuit temperature: 200°C
- Maximum tensile stress (recommended): 15 N/mm2 section of copper for mobile laying; 50 N/mm2 section of copper for fixed laying
- Minimum bending radius: 6 times the cable diameter for mobile laying; 4 times the cable diameter for fixed laying
Use: For installation in dry or damp, or wet rooms, in free air, in workshops with explosive atmosphere. For connections subject to medium mechanical stresses: e.g. industrial or agricultural workshop equipment, large kettles, heating plates, portable lamps, electric tools such as drills, circular saws, household electric tools as well as transportable motors or generators on construction sites or agricultural installations, etc.; also for fixed installations e.g. on floors and shelves of temporary construction sites and barrack housings; for connections of construction elements of lifting apparatus, machines, etc.
Use is permitted up to 1000 V in case of protected fixed installation (within pipes or equipment) as well as for rotor connections of motors for lifting apparatus. Underground installation is permissible only with protection from damage hazards. For laying and installation operations, it is recommended not to exceed the tensile stress of 5 k g x mm² of the sum of the conductor cross sections. Use is not recommended for connections of equipment or machinery subject to continuous movement for which festoon feeding or by means of cable winding drums is required.
There are no reviews
Data sheet
- Colour:
- Black
- Diameter:
- 15,4mm
- Cross-Section:
- 150mmq
- With yellow/green:
- No
- Number of cables:
- 1
