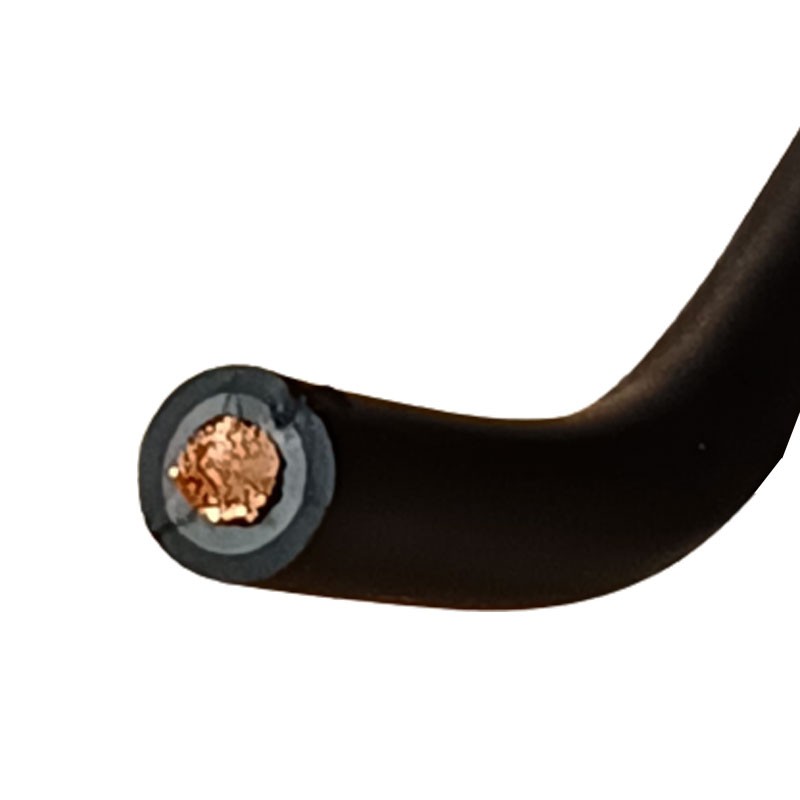

Polychloroprene Sheathed Cable 1x50 mmq Black H07RNF1X50
9X9 H07RNF1X50
Single-core flexible cable, for heavy mobile service, in wet rooms, workshops or outdoors. Usable for connections of industrial or agricultural equipment such as large kettles, heating plates, portable lamps, power tools, motors and transportable generators. Mandatory for temporary installations at construction sites in accordance with IEC 64-8 part 7 third edition. Outer diameter: 21 mm.
Can be used in fixed installations. Flexible conductor made of class 5 annealed red copper, insulation made of elastomeric compound quality EI4, sheath made of polychloroprene quality EM2.
The selling price is intended per meter.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Polychloroprene Sheathed Cable 1x50 mmq Black H07RNF1X50
€8.42
€8.42
Tax included
Tax included
Items Available: 420
: 336
Two-year warranty
Characteristics:
- Rated voltage U0: 450V
- Rated voltage U: 750V
- Test voltage: 2500V
- Maximum operating temperature: +60 degrees
- Maximum short circuit temperature: +200 degrees
- Minimum operating temperature (without mechanical shock): -40 degrees
- Minimum installation and handling temperature: -25 degrees
Core colors:
- Unipolar: copper
Sheath color:
- Black
Notes:
- Current ratings for unipolar cables were calculated considering 3 cables spaced apart
- Current ratings were calculated in the case of a conduit consisting of 3-4 loaded conductors
- The cable is usable up to +85°C (in a protected position)
Data sheet
- Colour:
- Black
- Cross-Section:
- 50mmq
- With yellow/green:
- No
- Number of cables:
- 1
