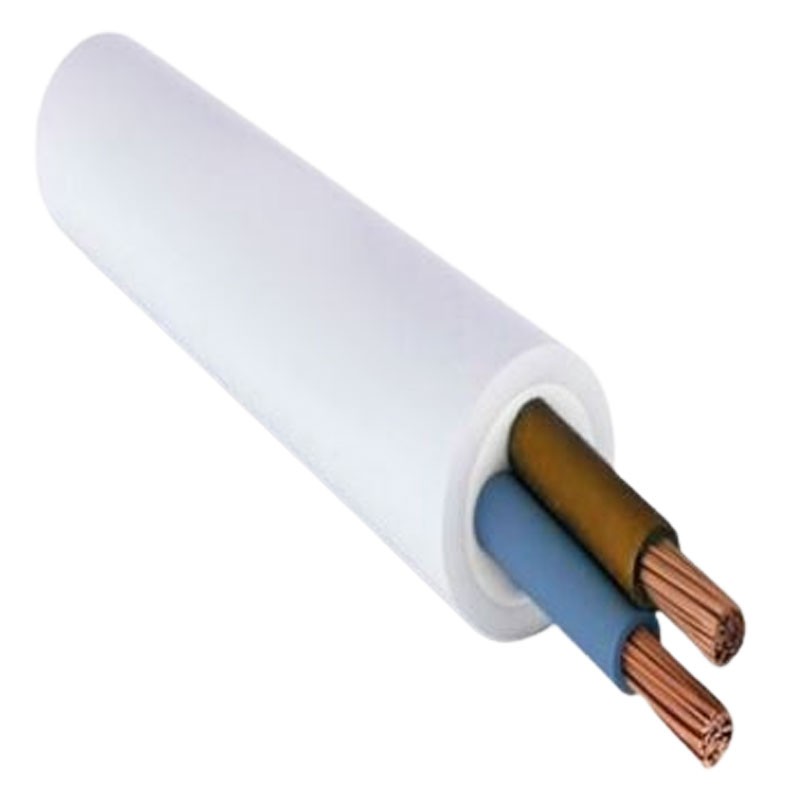

Double Insulated Flameproof Cable 2X6mmq 1 Meter FG16OR162X6
9X9 FG16R2X6
Double Insulated Flameproof Cable 2X6mmq 1 Meter FG16OR162X6, without yellow/green
Diameter: 12.5 mm
Sold by the meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Double Insulated Flameproof Cable 2X6mmq 1 Meter FG16OR162X6
€2.14
€2.14
Tax included
Tax included
Items Available: 33872
: 8066
Two-year warranty
Reference IEC Guide 20-67 as applicable: FG16OR cable is suitable for power supply in industry, construction sites, residential construction. For indoor and outdoor fixed laying, even in wet environments; for direct and indirect underground laying. For outdoor installation, on masonry and metal structures, on walkways, pipes, ducts and similar systems. Suitable for bundle installations in environments with higher risk in case of fire.
Reference Construction Products Regulation 305/2011 EU and Standard EN 50575: Given the properties of limiting fire development and heat emission, the cable is suitable for power supply in buildings and other civil engineering works.
Description:
- Conductor: red copper, flexible formation, class 5
- Insulation: rubber, G16 quality
- Filler: thermoplastic, penetrating between cores (only in multi-core cables)
- Sheathing: PVC, R16 quality
- Color: gray
Functional characteristics:
- Rated voltage Uo/U: 600/1000 V AC 1500 V DC.
- Maximum Um voltage: 1200 V ac 1800 V dc also to earth
- Industrial test voltage: 4000 V
- Maximum operating temperature: 90°C
- Minimum operating temperature: -15°C (in the absence of mechanical stress)
- Maximum short-circuit temperature: 250°C
Good resistance to industrial oils and greases. Good behavior at low temperatures. Resistant to UV radiation
Laying conditions:
- Minimum laying temperature: 0°C
- Recommended minimum bending radius: 4 times the cable diameter
- Maximum recommended tensile stress: 50 N/mm2 of copper cross section
Reactions to Fire: Complies with CPR REGULATION 305/2011/EU:
- Standard: EN 50575:2014+A1:2016
- Class: cca-s3, d1, a3
- Classification: (IEC UNEL 35016) EN 13501-6
- Heat and smoke emission and flame development EN 50399
- Non-propagation of flame: EN 60332-1-2
- Corrosive and halogenated gases: EN 60754-2
- Notified Body: 0051 - IMQ
Non è correttamente indicato la composizione del cavo (in questocaso assenza del giallo/verde).
Non troppo rigido, cavo perfetto. Consegna rapidissima.
Data sheet
- Colour: Grey
- Cross-Section: 6mmq
- With yellow/green: No
- Number of cables: 2
