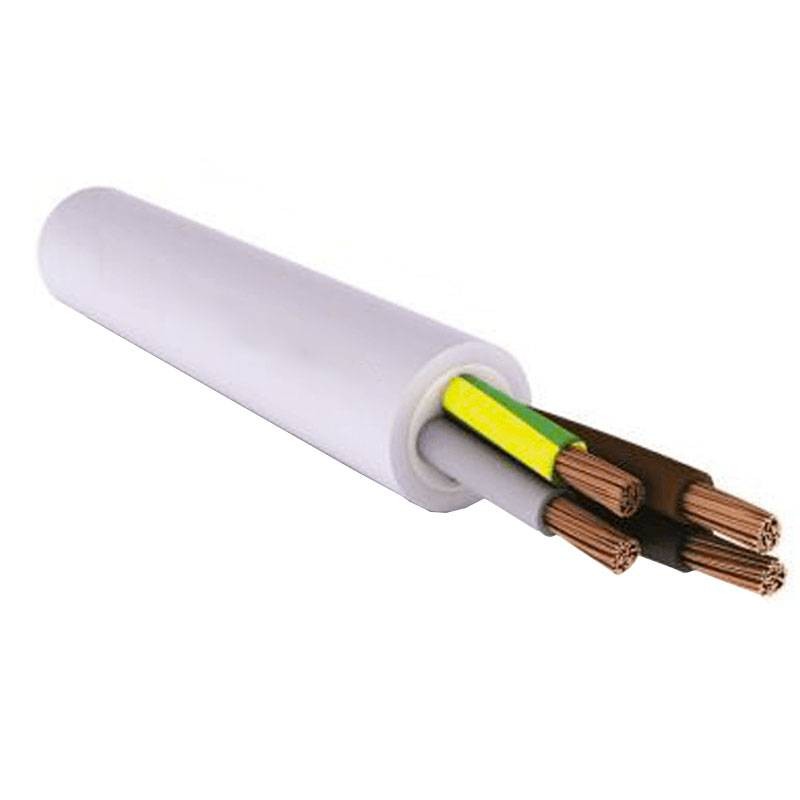

Cable Double Insulation-Flame resistant 5X16mmq 1 Meter Yellow Green FG16OR165G16
9X9 FG16R5G16
Cable Double Insulation-Flame resistant 5X16mmq 1 Meter Yellow Green FG16OR165G16
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Cable Double Insulation-Flame resistant 5X16mmq 1 Meter Yellow Green FG16OR165G16
€12.45
€12.45
Tax included
Tax included
Items Available: 18068
: 3229
Two-year warranty
Reference Guideline CEI 20-67 as far as applicable: FG16OR cable is suitable for power supply in industry, construction sites, residential buildings. For fixed installation indoors and outdoors, even in wet environments; for direct and indirect underground laying. For installation in the open air, on masonry and metal structures, on walkways, pipes, ducts and similar systems. Suitable for bundle installations in environments with increased fire risk.
Reference Construction Products Regulation 305/2011 EU and Standard EN 50575: Due to its properties of limiting the development of fire and the emission of heat, the cable is suitable for power supply in buildings and other civil engineering works.
Description:
- Conductor: red copper, flexible formation, class 5
- Insulation: rubber, G16 quality
- Filler: thermoplastic, penetrating between the cores (only in multi-core cables)
- Sheath: PVC, R16 quality
- Colour: grey
Functional characteristics:
- Rated voltage Uo/U: 600/1000 V AC 1500 V DC
- Maximum voltage Um: 1200 V AC 1800 V DC also to earth
- Industrial test voltage: 4000 V
- Maximum operating temperature: 90°C
- Minimum operating temperature: -15°C (in the absence of mechanical stress)
- Maximum short-circuit temperature: 250°C
Good resistance to industrial oils and greases. Good behaviour at low temperatures. UV resistant
Laying conditions:
- Minimum laying temperature: 0°C
- Recommended minimum bending radius: 4 times the cable diameter
- Recommended maximum tensile stress: 50 N/mm2 of copper section
Reactions to fire: Compliant to CPR REGULATION 305/2011/EU:
- Standard: EN 50575:2014+A1:2016
- Class: Cca-s3, d1, a3
- Classification: (IEC UNEL 35016) EN 13501-6
- Heat and smoke emission and flame development EN 50399
- Non-propagation of flame: EN 60332-1-2
- Corrosive and halogenated gases: EN 60754-2
- Notified Body: 0051 - IMQ
There are no reviews
Data sheet
- Colour:
- Grey
- Cross-Section:
- 16mmq
- With yellow/green:
- Yes
- Number of cables:
- 5
