Cable Double Insulation flame retardants 1X150mmq 1 Meter FG16M161X150

Cavi
9X9 FG16M1X150

Cable Double Insulation Flame retardant and Smoke (flame retardants) 1X150mmq 1 Meter FG16M161X150

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Do you have questions about this product or did you not find what you were looking for? Ask us!

Cable Double Insulation flame retardants 1X150mmq 1 Meter FG16M161X150

€21.09
€21.09

Cable Double Insulation flame retardants 1X150mmq 1 Meter FG16M161X150

€21.09
Tax included
Items Available: 5217
Further availability of the manufacturer

Cable Double Insulation flame retardants 1X150mmq 1 Meter FG16M161X150

€21.09

Buy it within and receive it from Monday, 11 November
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

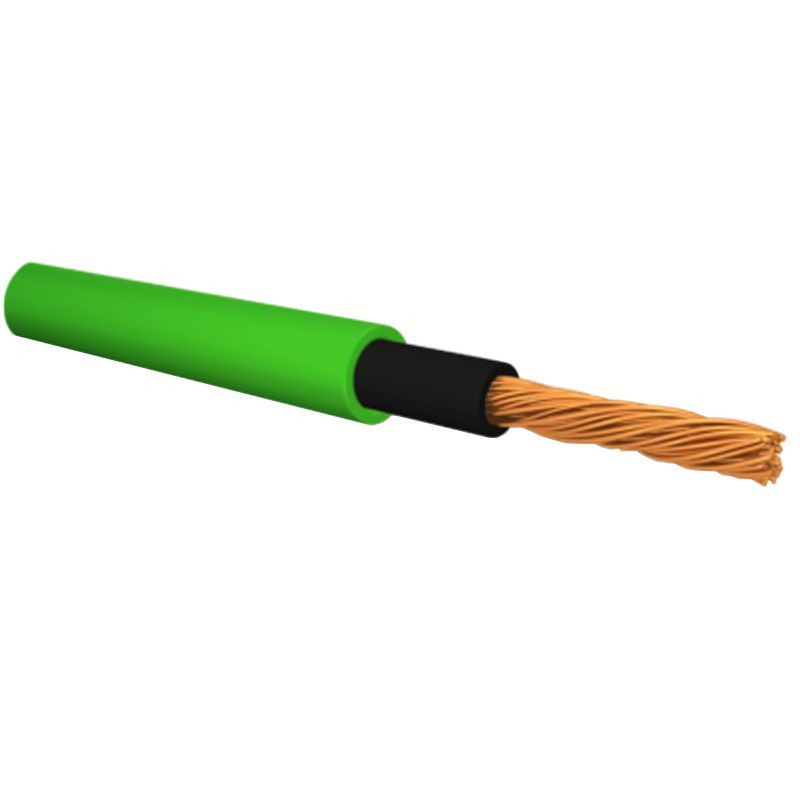

FG16M16 0.6/1 kV Cca - s1b, d1, a1 according to the European legislation Construction Products, the CPR reference Standard CEI 20-13 cable Description Soul Conductor rope round flexible red copper annealed Rubber Insulation HEPR high module quality G16, which gives the cable high electrical characteristics, mechanical and thermal Colors of the souls inner Lining Filler/light jacket of non-hygroscopic material Sheath special Thermoplastic of high quality M16, green color Marking Stencil ink: (G) FG16M16 Afumex 1000 PLUS 0.6/1 kV 1x... Cca-s1b,d1,a1 IEMMEQU EFP year Marking the metric progressive to Comply with the requirements of the European Legislation Construction Products (CPR EU 305/11) Application Cables suitable allalimentazione electric in buildings and other civil engineering works with the aim of limiting the production and spread of fire and smoke, complying with the Regulation the Construction Products (CPR). For more details refer to the Norm CEI 20-67 Guide to the use of the cables 0.6/1 kV. Unipolar cables for energy at a very low emission of fumes and toxic gases (limits imposed by the CEI 20-38 with test procedures provided by CEI 20-37). Suitable in environments with a high risk dincendio where it is essential to ensure the protection of the people and preserve plants and equipment dallattacco of corrosive gases (example: schools, hospitals, hotels, supermarkets, subways, cinemas, theatres, discotheques, offices, etc.). Suitable for fixed installation, on masonry and metallic structures.

There are no reviews

Data sheet

Colour:
Green
Cross-Section:
150mmq
With yellow/green:
No
Number of cables:
1
