Cable Double Insulation flame retardants 3X35+1X25mmq 1 Meter FG16OM164X35

Cavi
9X9 FG16M4X35

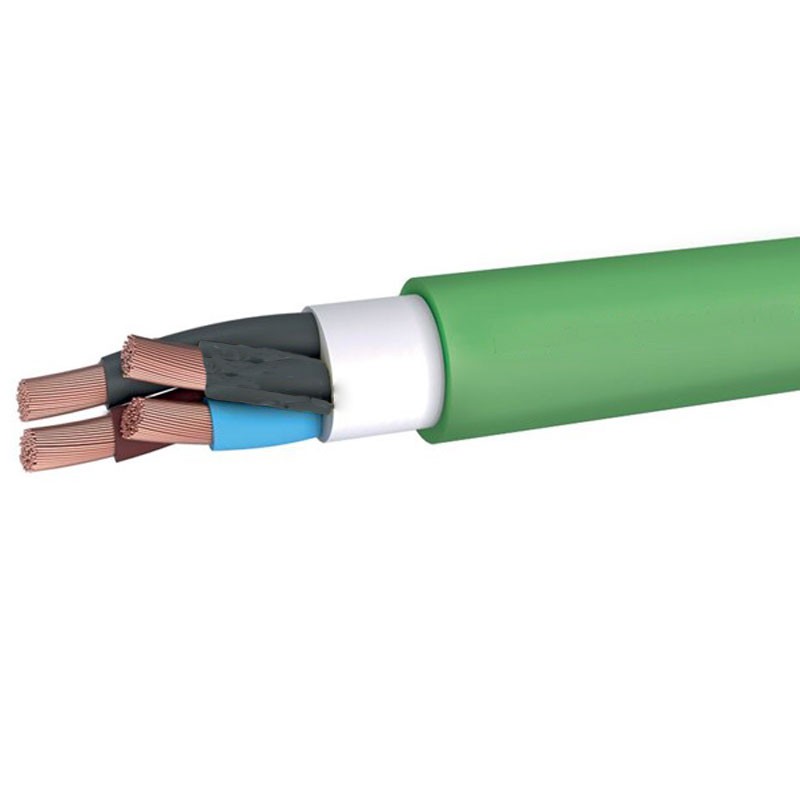

Double Insulated FG16OM164X35 Flame and Smoke Resistant Cable (Afumex) Quadripolar 3X35+1X25mmq, sold by the metre, without yellow/green, diameter 29.2 mm, colour Green.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Do you have questions about this product or did you not find what you were looking for? Ask us!

Cable Double Insulation flame retardants 3X35+1X25mmq 1 Meter FG16OM164X35

€23.53
€23.53

Cable Double Insulation flame retardants 3X35+1X25mmq 1 Meter FG16OM164X35

€23.53
Tax included
Items Available: 1562
Further availability of the manufacturer

Cable Double Insulation flame retardants 3X35+1X25mmq 1 Meter FG16OM164X35

€23.53

Buy it within and receive it from Monday, 11 November
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The FG16OM cable is suitable for power supply in places with fire hazards and high presence of people such as schools, offices, cinemas, theatres, exhibitions, libraries, hospitals, museums, hotels. For fixed indoor and outdoor installation, even in wet environments; for direct and indirect underground installation. For installation in the open air, on masonry and metal structures, on walkways, pipes, ducts and similar systems. Suitable for bundle installations in environments with increased fire risk.



Reference Construction Products Regulation 305/2011 EU and Standard EN 50575: Due to the properties of limiting the development of fire and noxious fumes, the cable is suitable for power supply in buildings and other civil engineering works.



Description:

  • Conductor: red copper, flexible formation, class 5
  • Insulation: rubber, G16 quality
  • Filler: LS0H thermoplastic, penetrating between cores (optional)
  • Sheath: LS0H thermoplastic, M16 quality
  • Colour: green or grey



Functional characteristics:

  • Rated voltage Uo/U: 600/1000 V AC 1500 V DC
  • Maximum Um voltage: 1200 V AC 1800 V DC also to earth
  • Industrial test voltage: 4000 V
  • Maximum operating temperature: 90°C
  • Minimum operating temperature: -15°C (in the absence of mechanical stress)
  • Maximum short-circuit temperature: 250°C



Advantages:

  • Good resistance to industrial oils and greases
  • Good behaviour at low temperatures.



Laying conditions:

  • Minimum laying temperature: 0°C
  • Recommended minimum bending radius: 4 times the cable diameter
  • Recommended maximum tensile stress: 50 N/mm2 of copper section



COMPLIANT CPR REGULATION 305/2011/UE

  • Standard: EN 50575:2014+A1:2016
  • Class: Cca-s1b, d1, a1
  • Classification: (IEC UNEL 35016) EN 13501-6
  • Heat and smoke emission during flame development EN 50399
  • Vertical flame propagation: EN 60332-1-2
  • Corrosive and halogenated gases: EN 60754-2
  • Smoke density (transmittance): EN 61034-2
  • Notified Body: 0051 - IMQ

There are no reviews

Data sheet

Colour:
Green
Cross-Section:
25mmq
35mmq
With yellow/green:
No
Number of cables:
4

Cables with the same section
