Cable Double Insulation flame retardants 5X4mmq 1 Meter Yellow Green FG16OM165G4
9X9 FG16M5G4

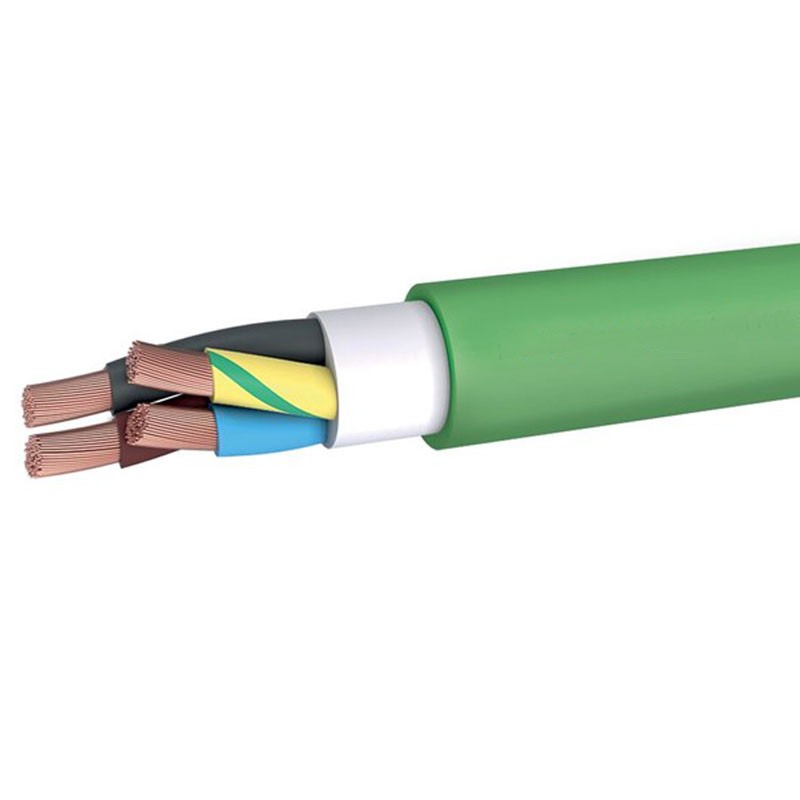

Double Insulated FG16OM165G4 Flame and Smoke Resistant (Afumex) Five-pole Cable 5X4mmq, sold by the metre with Yellow/Green, diameter 17.3 mm, Colour Green.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Cable Double Insulation flame retardants 5X4mmq 1 Meter Yellow Green FG16OM165G4
€3.46
€3.46
Tax included
Tax included
Items Available: 22165
: 5576
Two-year warranty
The FG16OM cable is suitable for power supply in places with fire hazards and high presence of people such as schools, offices, cinemas, theatres, exhibitions, libraries, hospitals, museums, hotels. For fixed indoor and outdoor installation, even in wet environments; for direct and indirect underground installation. For installation in the open air, on masonry and metal structures, on walkways, pipes, ducts and similar systems. Suitable for bundle installations in environments with increased fire risk.
Reference Construction Products Regulation 305/2011 EU and Standard EN 50575: Due to the properties of limiting the development of fire and noxious fumes, the cable is suitable for power supply in buildings and other civil engineering works.
Description:
- Conductor: red copper, flexible formation, class 5
- Insulation: rubber, G16 quality
- Filler: LS0H thermoplastic, penetrating between cores (optional)
- Sheath: LS0H thermoplastic, M16 quality
- Colour: green or grey
Functional characteristics:
- Rated voltage Uo/U: 600/1000 V AC 1500 V DC
- Maximum Um voltage: 1200 V AC 1800 V DC also to earth
- Industrial test voltage: 4000 V
- Maximum operating temperature: 90°C
- Minimum operating temperature: -15°C (in the absence of mechanical stress)
- Maximum short-circuit temperature: 250°C
Advantages:
- Good resistance to industrial oils and greases
- Good behaviour at low temperatures.
Laying conditions:
- Minimum laying temperature: 0°C
- Recommended minimum bending radius: 4 times the cable diameter
- Recommended maximum tensile stress: 50 N/mm2 of copper section
COMPLIANT CPR REGULATION 305/2011/UE
- Standard: EN 50575:2014+A1:2016
- Class: Cca-s1b, d1, a1
- Classification: (IEC UNEL 35016) EN 13501-6
- Heat and smoke emission during flame development EN 50399
- Vertical flame propagation: EN 60332-1-2
- Corrosive and halogenated gases: EN 60754-2
- Smoke density (transmittance): EN 61034-2
- Notified Body: 0051 - IMQ
There are no reviews
Data sheet
- Colour:
- Green
- Cross-Section:
- 4mmq
- With yellow/green:
- Yes
- Number of cables:
- 5
