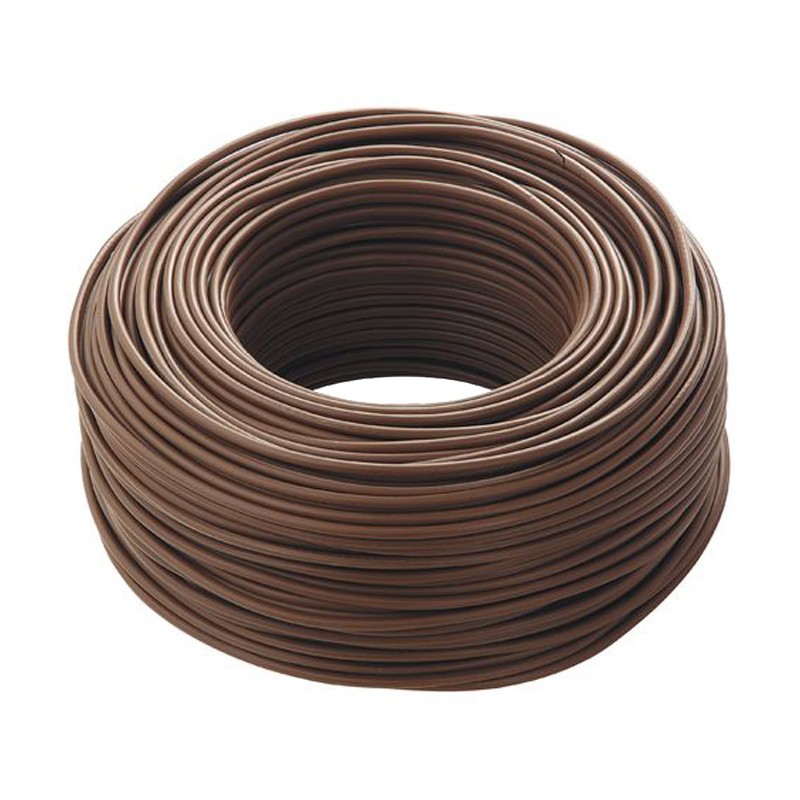

FG17 Cable 1X2.5mmq 450/750V Brown 100 Meters

Brand: Cavi

Code: 9X9 FG171X2,5MAM EAN:

FG17 1X2.5mmq 450/750V Brown cable for low voltage, fire reaction in accordance with CPR Regulation 305/2011/EU.

Approximate conductor diameter 2.0mm
Average insulation thickness 0.8mm
Maximum outer diameter 4.1mm

Sold by Hanks of 100 Meters.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

FG17 Cable 1X2.5mmq 450/750V Brown 100 Meters

€48.70

FG17 Cable 1X2.5mmq 450/750V Brown 100 Meters

€48.70
Tax included

Items Available: 249

: 59

Further availability of the manufacturer

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Features:

Conductor: red copper, flexible formation, class 5
Insulation: cross-linked elastomeric LS0H, G17 quality
Rated voltage Uo/U: 450/750 V
Maximum operating temperature: 90°C
Minimum operating temperature: -30°C (in the absence of mechanical stress)
Maximum short circuit temperature: 250°C
Good flowability in pipes, good abrasion resistance, excellent strippability
Minimum laying temperature: -15°C
Recommended minimum bending radius: 4 times the cable diameter
Maximum recommended tensile stress: 50 N/mm2 of copper cross section
Approximate conductor diameter 2.0mm
Average insulation thickness 0.8mm
Maximum outer diameter 4.1mm
Max electrical resistance at 20°C /km 7.98

Suitable in environments where safeguarding people is essential: schools, offices, theaters, subways, hospitals, places of worship, shopping malls, and places of public performance and entertainment. For installation within exposed or recessed piping or similar closed systems. For fixed and protected installation within lighting fixtures or switching and control equipment. When installation is protected within interrupting or control equipment this cable is permitted for voltages up to 1000 V a.c. or 750 V d.c. in relation to earth. Suitable for bundled installations in environments with higher risk in case of fire. Not suitable for outdoor installation

Reference Construction Products Regulation 305/2011 EU and Standard EN 50575: Given the properties of limiting the development of fire and noxious fumes, the cable is suitable for power supply in buildings and other civil engineering works

Reaction to fire:
