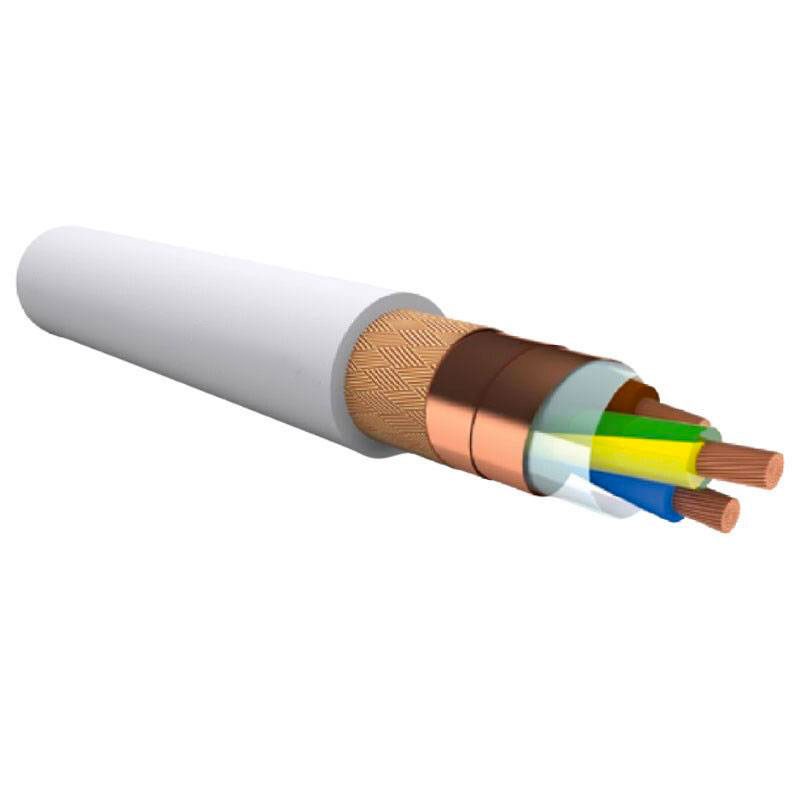

Fror Shielded Flameproof Cable FROHH2R 4G1mmq 1 Meter with Yellow Green

Brand: Cavi

Code: 9X9 SMS0410HAAAF EAN: 8016219704372

Suitable when a special degree of protection against electrostatic and electromagnetic interference is required. Can be installed indoors in normal or humid environments and temporarily outdoors. Not permitted for underground installation.

Diameter: 7.2 mm.

Sold by the meter.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.

Fror Shielded Flameproof Cable FROHH2R 4G1mmq 1 Meter with Yellow Green

€2.03

Fror Shielded Flameproof Cable FROHH2R 4G1mmq 1 Meter with Yellow Green

€2.03
Tax included

Items Available: 1391

: 793

Further availability of the manufacturer

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Features:

Conductor: red copper, flexible formation, class 5
Insulation: PVC, TI2 quality
Core wrapping: polyester tape
Screen 1: aluminum/polyester tape
Screen 2: red copper wire braid
Sheathing: PVC, TM2 quality
Color: gray
Rated voltage NPI® FROHH2R-450/750 V: Uo/U 450/750 V NPI® FROHH2R-300/500 V: Uo/U 300/500 V
Maximum operating temperature: 70°C
Minimum operating temperature: -15°C (in the absence of mechanical stress)
Maximum short circuit temperature: 160°C
Shield transfer impedance: max 100 m /m (100 KHz to 30 MHz)
Good resistance to mechanical stress and chemical agents
Good flexibility and behavior at low temperatures
Minimum laying temperature: 0°C
Recommended minimum bending radius: 8 times the cable diameter
Maximum recommended tensile stress: 50 N/mm2 of copper cross section

Use and type of laying: Energy cable suitable for fixed installation in places with fire hazards such as fairs, civil, commercial, public entertainment buildings; in industrial construction limited to laying in pipes and ducts. Cable with rated voltage 300/500 V is only suitable for signaling and control circuits. Suitable when a special degree of protection against electrostatic (aluminum/polyester tape) and electromagnetic (copper braid) interference is required. Can be installed indoors in normal or humid environments and temporarily outdoors. Not permitted for underground installation.
