Double Insulated Flameproof Cable 3X6mmq 100 meters Yellow Green FG16OR163G6
9X9 FG16R3G6M
Double Insulated Flameproof Cable FG16OR16:
- 3X6mmq cross-section
- With yellow green
- 16.2mm diameter
Sold by skein of 100 meters.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
Double Insulated Flameproof Cable 3X6mmq 100 meters Yellow Green FG16OR163G6
€3.19
€3.19
Tax included
Tax included
Items Available: 3900
: 2480
FG16OR16 0.6/1 kV Cca - s3, d1, a3 In accordance with European Construction Products CPR Reference standard CEI 20-13
Cable description

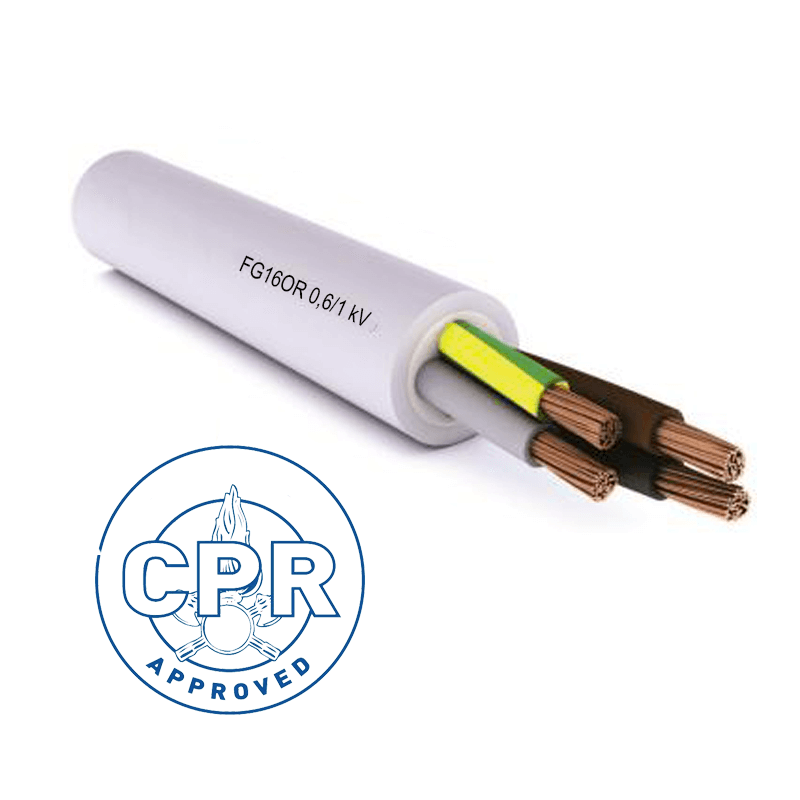

- Core Flexible round-chord conductor of annealed red copper Insulation High-modulus HEPR rubber quality G16 which gives the cable high electrical, mechanical and thermal characteristics
Core colors
- Signaling cable cores are black, numbered and yellow/green ground conductor is provided
- Sheathing Made of special grade R16 PVC, color gray
- Marking Ink stamping every 1 m: (G) FG16OR16 G16 TOP 0.6/1 kV ..x... Cca-s3,d1,a3 IEMMEQU EFP year
- Progressive metric marking Conforms to the requirements of the European Construction Products Regulation (CPR EU 305/11)
Applications Cables
- suitable for power supply in buildings and other civil engineering works with the objective of limiting the production and spread of fire and smoke, complying with the Construction Products Regulation (CPR).
- For further details, refer to IEC Standard 20-67 Guide to the Use of 0.6/1 kV Cables.
- Suitable for power supply and transport of energy and/or signals in industry/craft and residential construction
- Suitable for fixed laying both indoors and outdoors on cable trays, in pipes, conduits or similar systems. They can be directly buried underground.
There are no reviews
Data sheet
- Colour:
- Grey
- Cross-Section:
- 6mmq
- With yellow/green:
- Yes
- Number of cables:
- 3
