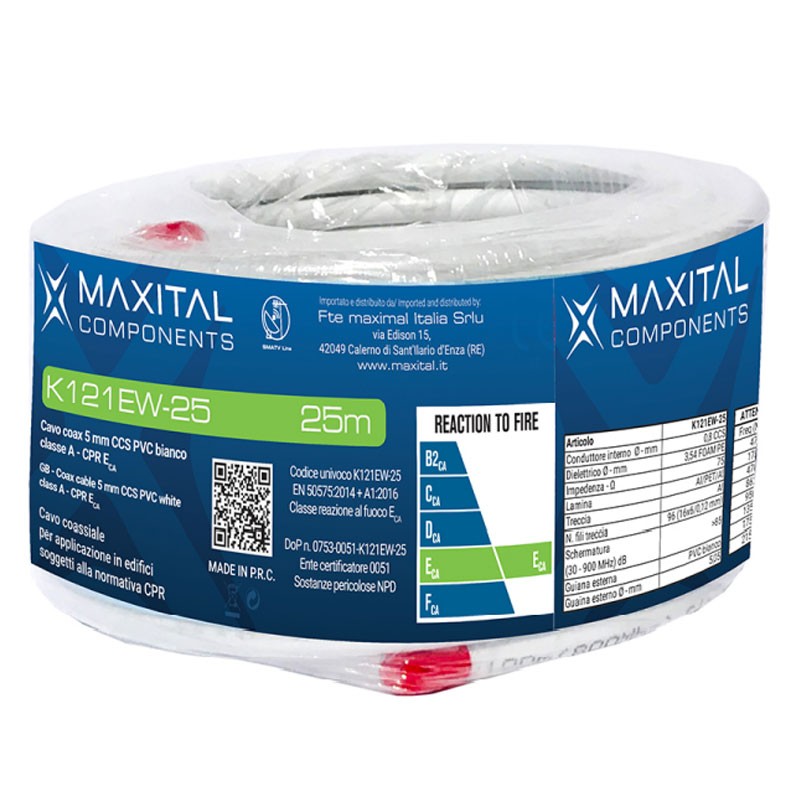

FTE TV Cable for Digital Terrestrial and Satellite Television 5mm 25mt K121EW-25
FTE K121EW-25
8055271130156
FTE TV cable for Digital Terrestrial and Satellite, with the following characteristics:
- Sheath color: white
- Cable diameter: 5 mm
- Inner conductor made of copper-plated steel
- White PVC outer sheath
- Braid coverage 80 %
- Excellent shielding, class A
- CPR Euroclass Eca
Price intended per 25-meter hank.
Suitable for distributing TV and SAT signals along medium/short distances.
FTE TV Cable for Digital Terrestrial and Satellite Television 5mm 25mt K121EW-25
€11.68
€11.68
Tax included
Tax included
Items Available: 8
: 2
Specifications:
- Inner conductor material CCS - Copper-plated steel
- Inner conductor diameter - mm 0.8
- Dielectric material PE foam
- Dielectric diameter - mm 3.55
- Tape material Al/Pet/Al
- Braid material Al
- Number of braid wires 96 ( 16 x 6)
- Braid wire diameter- mm 0.12
- Optical coverage braid- mm 80
- Shielding type Double
- Outer sheath diameter- mm 5.2
- Outer sheath material white PVC - UV Resistant
- Reaction to fire - CPR Eca class
- Cable weight - kg / km 23
- Minimum bending radius - mm 100
- Impedance - Ohm 75
- Capacity - pF / m 53
- Propagation rate - % 84
- DC resistance inner/outer conductor - Ohm/km <168 / <41
- Attenuation @ 175 MHz - dB/100m 10.7
- Attenuation @ 470 MHz - dB/100m 17.3
- Attenuation @ 862 MHz - dB/100m 23.9
- Attenuation @ 950 MHz - dB/100m 25.2
- Attenuation @ 1350 MHz - dB/100m 30.4
- Attenuation @ 1750 MHz - dB/100m 34.8
- Attenuation @ 2150 MHz - dB/100m 38.9
- Reflection loss @ 5 ÷ 470 MHz - dB >23
- Reflection loss @ 470 ÷ 1000 MHz - dB >20
- Reflection loss @ 1000 ÷ 2000 MHz - dB >18
- Reflection loss @ 2000 to 3000 MHz - dB >15
- Shielding efficiency Class A
- Shielding efficiency @ 30 ÷ 1000 MHz - dB >85
- Shielding efficiency @ 1000 ÷ 2000 MHz - dB >75
- Shielding efficiency @ 2000 ÷ 3000 MHz - dB >65
- Minimum installation temperature: -20°C
- Operating temperature: -20/+70°C
Data sheet
- Diameter:
- 5mm
- Type:
- TV/SAT Cables
