TVSAT Coaxial Cable FTE K120EA 5mm PVC K120EA

Fte
FTE K120EA 8055271132075

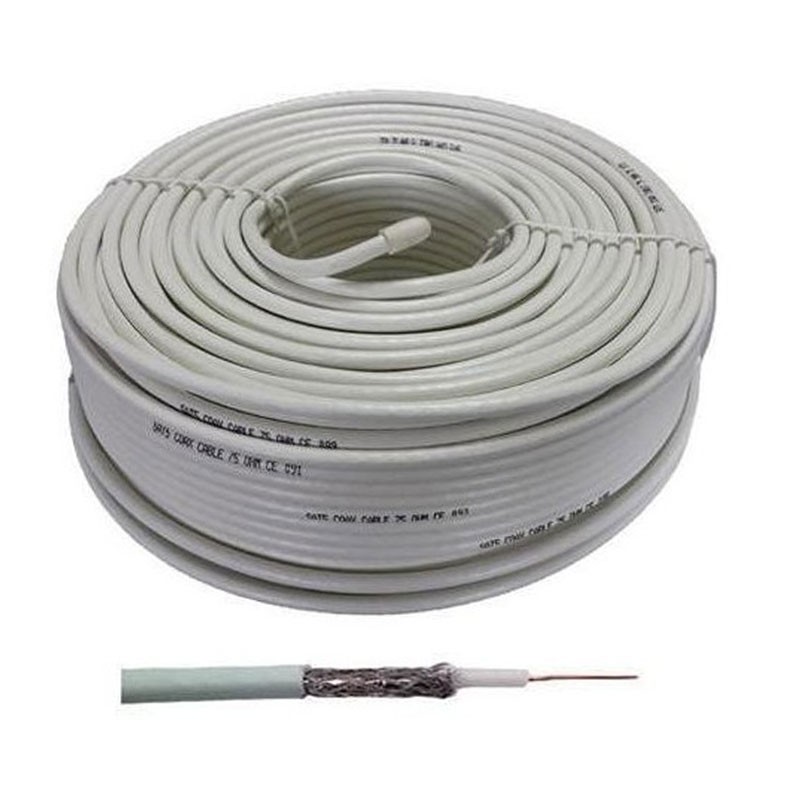

TV-SAT Fte coaxial cable, with CCS center conductor, 5 mm cross section in Class A, constructed with the appropriate specifications for low toxic gas dispersion in case of fire.

Inner conductor made of copper-plated steel, outer sheath of white PVC, braid coverage 55%, excellent shielding class A, CPR Euroclass Eca.

Suitable for distributing TV and SAT signals along medium/short distance.

Sale price is per meter, minimum sellable quantity hank of 100 meters.

Do you have questions about this product or did you not find what you were looking for? Ask us!

TVSAT Coaxial Cable FTE K120EA 5mm PVC K120EA

€0.24
€0.24

TVSAT Coaxial Cable FTE K120EA 5mm PVC K120EA

The minimum purchase order quantity for the product is 100.

€0.24
Tax included
Items Available: 1200
Further availability of the manufacturer

TVSAT Coaxial Cable FTE K120EA 5mm PVC K120EA

€0.24

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Wednesday, 13 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Specifications:

  • Inner conductor material CCS - Copper-plated steel
  • Inner conductor diameter - mm 0.8
  • Dielectric material PE foam
  • Dielectric diameter: 3.55 mm
  • Tape material: Al/Pet
  • Braid material: Al
  • Number of braid wires: 64 (16 x 4)
  • Braid wire diameter: 0.12mm
  • Braid optical coverage: 55mm
  • Shield type: double
  • Outer sheath diameter: 5.0 ± 0.1mm
  • Outer sheath material: white PVC - UV resistant
  • Reaction to fire - CPR class: Eca
  • Minimum bending radius: 100mm
  • Impedance: Ohm 75
  • Capacity - pF / m 53
  • Propagation rate: 83%
  • DC resistance inner/outer conductor - Ohm/km: <235 / <58
  • Attenuation @ 175 MHz - dB/100m 11.9
  • Attenuation @ 470 MHz - dB/100m 17.9
  • Attenuation @ 862 MHz - dB/100m 24
  • Attenuation @ 950 MHz - dB/100m 25.2
  • Attenuation @ 1350 MHz - dB/100m 30.4
  • Attenuation @ 1750 MHz - dB/100m 34.9
  • Attenuation @ 2150 MHz - dB/100m 38.9
  • Attenuation @ 2400 MHz - dB/100m 41.2
  • Reflection loss @ 5 ÷ 470 MHz - dB >23
  • Reflection loss @ 470 ÷ 1000 MHz - dB >20
  • Reflection loss @ 1000 ÷ 2000 MHz - dB >18
  • Reflection loss @ 2000 to 3000 MHz - dB >15
  • Shielding efficiency: Class A
  • Shielding efficiency @ 30 ÷ 1000 MHz - dB >=85
  • Shielding efficiency @ 1000 ÷ 2000 MHz - dB >=75
  • Shielding efficiency @ 2000 ÷ 3000 MHz - dB >=65
  • Minimum installation temperature: -20°C
  • Operating temperature: -20/+70°C

Davvero molto comodo è efficace; ottimo materiale

Soddisfatto del acquisto prodotto eccellente

Prodotto eccellente soddisfatto del acquisto

Read all reviews

Data sheet

Diameter:
5mm
Type:
TV/SAT Cables
