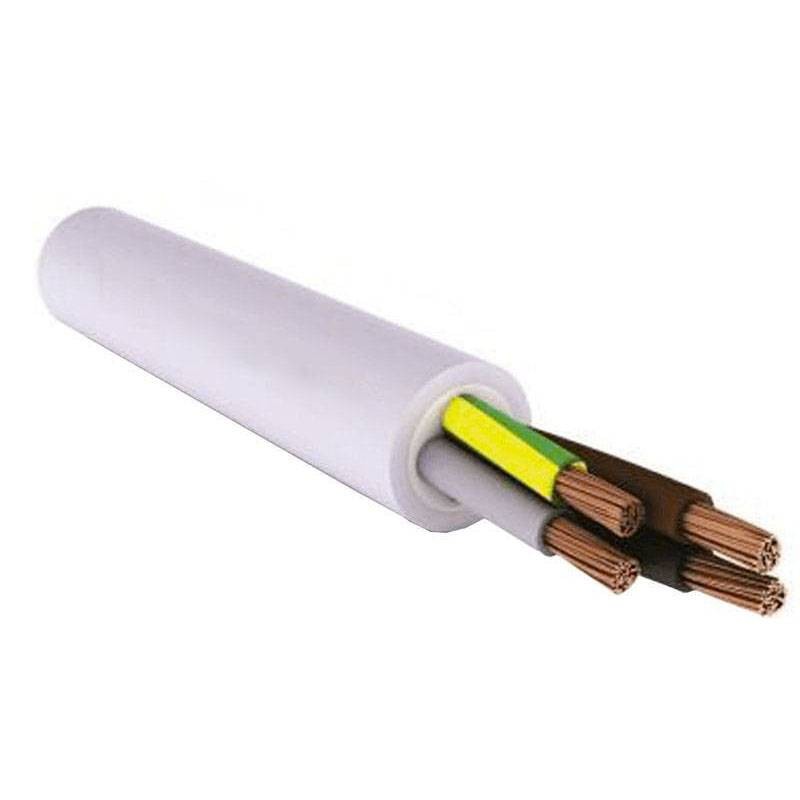

Double Insulated Flameproof Cable FG16OR16 5x50 sq. mm with Y/G
9X9 FG16R5G50
Double Insulated Flameproof FG16OR16 5x50 sq mm cable with Yellow Green with the following characteristics:
- Conductor diameter: 8.9 mm
- Insulation thickness: 1 mm
- Sheath thickness: 2 mm
- Outer diameter: 36.3 mm
- Electrical resistance: 0.386 ohm/km
- Current carrying capacity of tube in air: 154 A
- Underground pipe current carrying capacity: 141 A
Sold per meter.
Double Insulated Flameproof Cable FG16OR16 5x50 sq. mm with Y/G
€43.70
€43.70
Tax included
Tax included
Items Available: 444
: 169
Multi-core energy cable insulated with high-modulus ethylene-propylene rubber of G16 quality, under PVC sheathing, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).
Features:
- Conductor: Flexible annealed red copper cord, class 5
- Insulation: High-modulus ethylpropylene rubber compound of G16 quality
- Filler: Compound of non-hygroscopic material
- Outer sheath: PVC compound of quality R16
- Rated voltage Uo/U: 0.6/1 kV
- Maximum operating temperature: 90°C
- Minimum operating temperature: -15°C (in the absence of mechanical stress)
- Minimum installation temperature: 0°C
- Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
- Maximum tensile stress: 50 N/mm2
- Minimum bending radius: 4 times the maximum outer diameter
Conditions of use: Cables suitable for power supply in buildings and other civil engineering works with the aim of limiting the production and spread of fire and smoke. For use indoors in even wet rooms or outdoors. Suitable for fixed installation on masonry and metal structures in free air, in pipe or duct or similar systems. Also permitted for underground installation. Good resistance to industrial oils and greases.
There are no reviews
Data sheet
- Colour:
- Grey
- Cross-Section:
- 50mmq
- With yellow/green:
- Yes
- Number of cables:
- 5
