Multi-core power cable FG16OM16 3x6 sq. mm 0.6/1 kV G/V

Brand: Cavi

Code: 9X9 FG16M3G6M EAN:

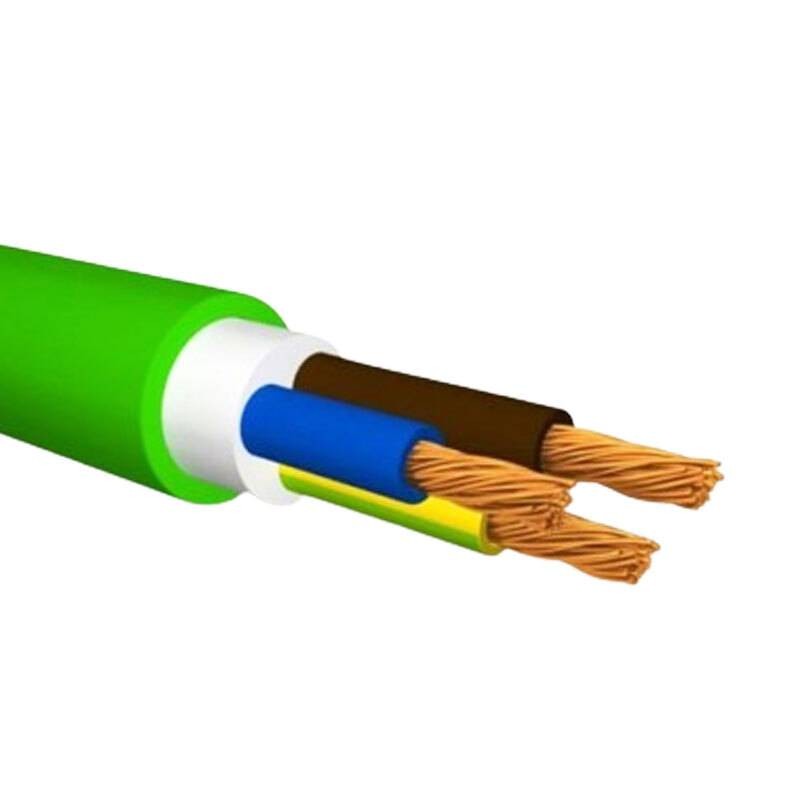

Multi-core power cable FG16OM16 3x6 sq mm 0.6/1 kV with Yellow/Green with the following characteristics:

Conductor diameter: 3 mm
Insulation thickness: 0.7 mm
Sheath thickness: 1.8 mm
Outer diameter: 13.7 mm
Electrical resistance: 3.3 ohm/km
Current carrying capacity in air: 44A
Current rating buried: 41A

The selling price at is intended per meter.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.

Multi-core power cable FG16OM16 3x6 sq. mm 0.6/1 kV G/V

€3.40

Multi-core power cable FG16OM16 3x6 sq. mm 0.6/1 kV G/V

€3.40
Tax included

Items Available: 500

: 400

Further availability of the manufacturer

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Multi-core energy cable insulated with ethylene-propylene rubber, high modulus G16 quality under M16 quality thermoplastic sheath, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).

Features:

Conductor: Flexible annealed red copper cord, class 5
Insulation: High-modulus ethylpropylene rubber compound, quality G16
Filler: Compound of non-hygroscopic material
Outer sheath: M16 quality LS0H compound LS0H = Low Smoke Zero Halogen
Sheath color: Green
Rated voltage Uo/U: 0.6/1 kV
Maximum operating temperature: 90°C
Minimum operating temperature: -15°C (in the absence of mechanical stress)
Minimum installation temperature: 0°C
Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 times the maximum outer diameter

Conditions of use: Particularly suitable in places at risk of fire and with a high presence of people where it is essential to ensure their safeguard and preserve the systems and equipment from the attack of corrosive gases (offices, schools, supermarkets, cinemas, theaters, discos) for indoor use in even wet rooms or outdoors. Suitable for fixed installation on masonry and metal structures in free air, in pipe or duct or similar systems. Also permitted for underground installation.
