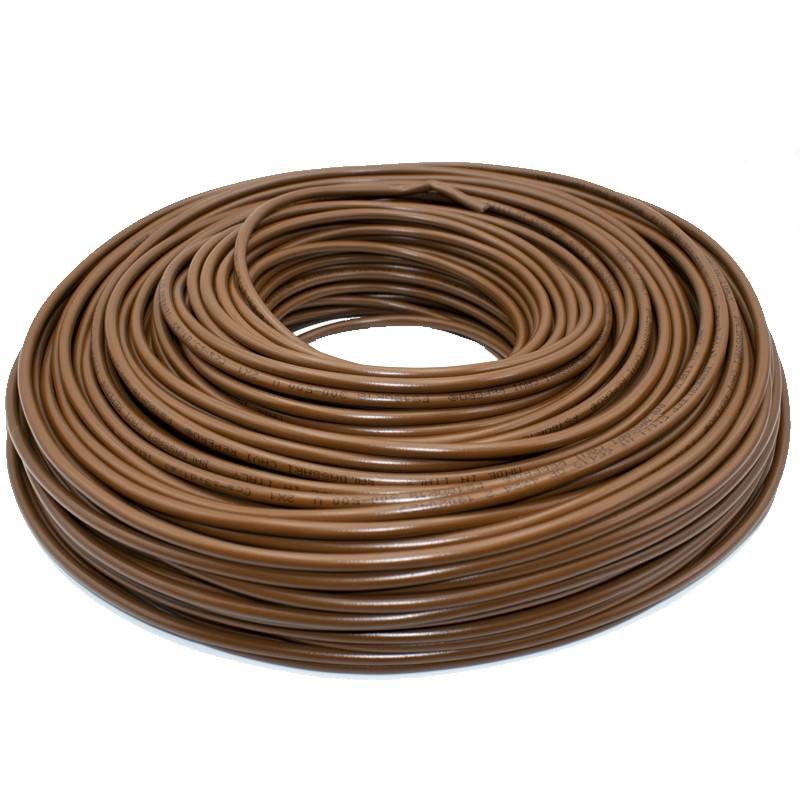

CPR cable FS18OR18 2x1 fire resistant cable sq. mm 300/500V
9X9 FS18OR182X1B
CPR FS18OR18 2x1 sq mm 300/500V cable with the following characteristics:
- Conductor diameter: 1.3 mm
- Insulation thickness: 0.4 mm
- Sheath thickness: 0.7 mm
- Production diameter: 5.6 mm
- Max electrical resistance at 20°: 19.5 ohm/km
- Current carrying capacity at 30° in air tube: 15A
Sale by the meter
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
CPR cable FS18OR18 2x1 fire resistant cable sq. mm 300/500V
€0.50
€0.50
Tax included
Tax included
Items Available: 1223
: 979
Two-year warranty
The FS18OR18 cables belong to the AFIAM line and are marked Cca-s3,d1,a3, to indicate that they comply with the Construction Products Regulation (CPR) in accordance with the requirements prescribed in EN 50575:2014+A1:2016 and to indicate that they are of the non-fire-propagating type in accordance with the self-extinguishing requirements prescribed in IEC EN 50399 in whose tests heat emission, smoke production and possible dripping during the flame development test are also measured.
FS18OR18 cables are also non-flame propagating on the single vertical cable as per EN and IEC 60332-1-2 (IEC 20-35) tests. In addition, to prevent further hazards from substances emitted during combustion of plastics, FS18OR18 cables are made of special halogen-reduced compounds, with the amount of hydrochloric acid, contained in the fumes emitted during combustion, less than 18%.
FS18OR18 cables belong to the ecological line called ECOGAMMA marked by the Windmill symbol. Lead, a heavy metal that is dangerous to the environment and to humans if present in excessive quantities, has been eliminated in these environmentally friendly cables.
Energy, signaling, and control cable, insulated with S18-quality PVC under R18-quality PVC sheathing, with special fire reaction characteristics and meeting the Construction Products Regulation (CPR).
Features:
- Conductor: Flexible annealed red copper cord, class 5
- Insulation: PVC compound of S18 quality
- Outer sheath: R18-quality PVC compound
- Sheath color: Brown
- Rated voltage Uo/U: 300/500V
- Maximum operating temperature: 70°C
- Minimum operating temperature: -15°C (in the absence of mechanical stress)
- Minimum laying temperature: 0°C
- Maximum short-circuit temperature: 160°C
- Maximum tensile stress: 50 N/mm2
- Minimum bending radius: 4 times the maximum outer diameter
Conditions of use: Suitable for fixed laying or temporary installation in places with fire hazards. For indoor use in dry or wet rooms.
There are no reviews
Data sheet
- Type:
- FS18OR18
- Cross-Section:
- 1mmq
- With yellow/green:
- No
- Number of cables:
- 2
