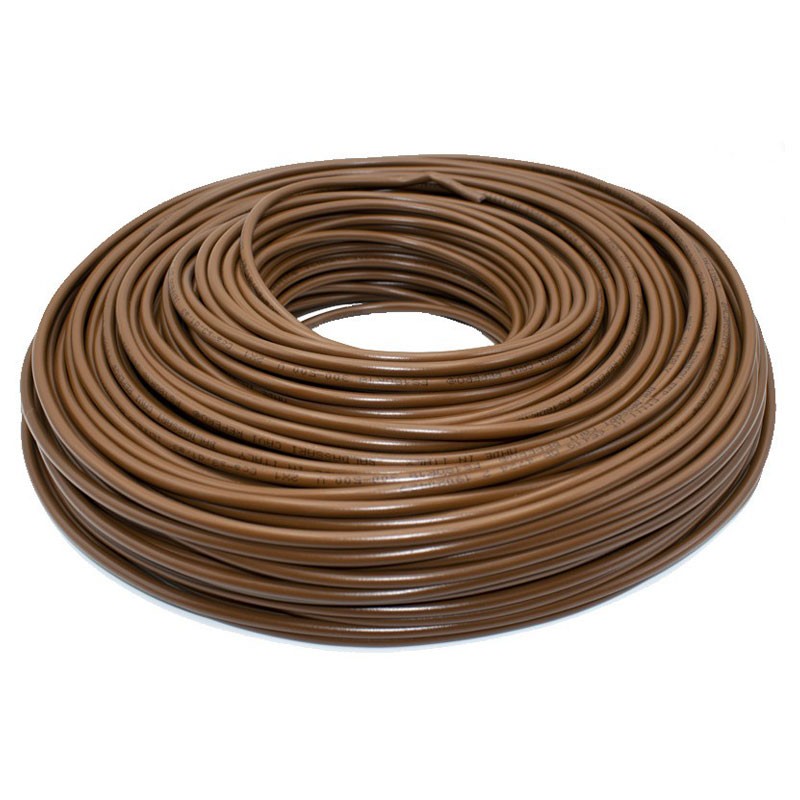

CPR FS18OR18 5G 2.5 sq. mm 450/750V cable with G/V flame retardant
9X9 FS18R5G2,5BV750
CPR FS18OR18 5 G 2.5 sq. mm cable with Yellow/Green flame-retardant with the following characteristics:
- Diameter: 10.3 mm
- Rated voltage: 450/750 V
- Conductor diameter: 1.9 mm
- Insulation thickness: 0.5 mm
- Sheath thickness: 1.2 mm
- Production diameter: 10.3 mm
- Max. electrical resistance at 20°C: 7.98 ohm/ km
- Current carrying capacity at 30°C in air tube: 25A
The selling price is per meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
CPR FS18OR18 5G 2.5 sq. mm 450/750V cable with G/V flame retardant
€2.28
€2.28
Tax included
Tax included
Items Available: 905
: 724
Two-year warranty
FS18OR18 cables belong to the AFIAM line and are marked Cca-s3,d1,a3, to indicate that they are compliant with the Construction Products Regulation (CPR) in accordance with the requirements prescribed in EN 50575:2014+A1:2016 and to indicate that they are of the non-fire-propagating type in accordance with the self-extinguishing requirements prescribed in IEC EN 50399 in whose tests heat emission, smoke production and possible dripping during the flame development test are also measured.
FS18OR18 cables are also non-flame propagating on the single vertical cable as per EN and IEC 60332-1-2 (IEC 20-35) tests. In addition, to prevent further hazards from substances emitted during combustion of plastics, FS18OR18 cables are made of special halogen-reduced compounds with amounts of hydrochloric acid, contained in the fumes emitted during combustion, less than 18%.
FS18OR18 cables belong to the ecological line called ECOGAMMA marked by the Windmill symbol. Lead, a heavy metal that is dangerous to the environment and to humans if present in excessive quantities, has been eliminated in these environmentally friendly cables.
Features:
- Conductor: Flexible annealed red copper cord, class 5
- Insulation: S18-grade PVC compound
- Outer sheath: R18-quality PVC compound
- Sheath color: Brown
- Rated voltage: 450/750 V
- Maximum operating temperature: 70°C
- Minimum operating temperature: -15°C
- Minimum installation temperature: 0°C
- Maximum short circuit temperature: 160°C
- Maximum tensile stress: 50 N/mm2
- Minimum bending radius: 4 times the maximum outer diameter
Conditions of use: Suitable for fixed laying or temporary installation in places with fire hazards. For indoor use in dry or wet rooms.
There are no reviews
Data sheet
- Type:
- FS18OR18
- Cross-Section:
- 2.5 mmq
- With yellow/green:
- Yes
- Number of cables:
- 5
