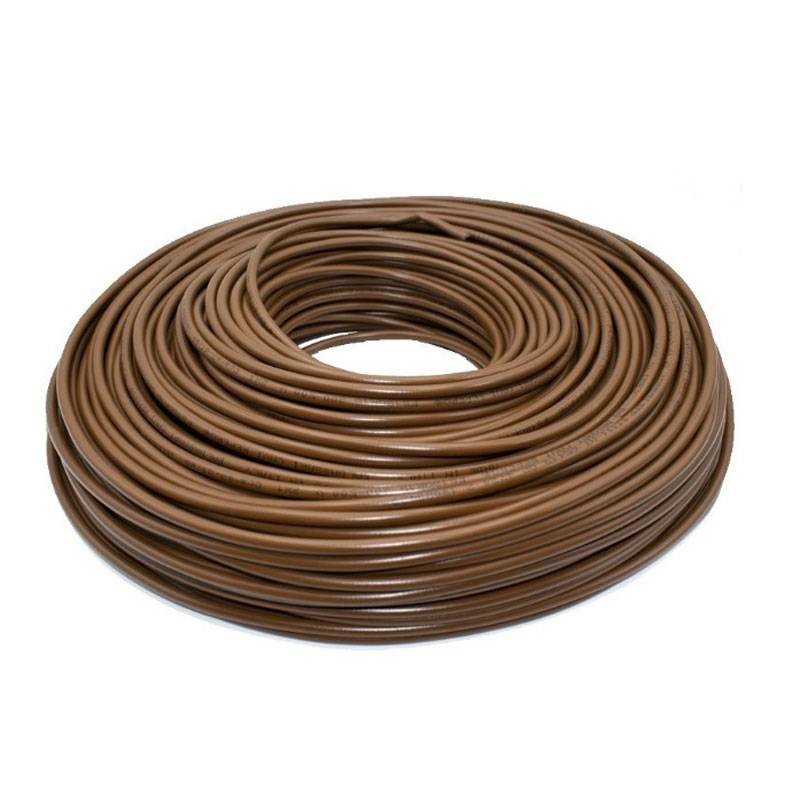

CPR FS18OR18 4 G 1.5 mmq 450/750V cable with G/V flame retardant hank 100 meters

Brand: Cavi

Code: 9X9 FS18R4G1,5V750 EAN:

CPR FS18OR18 4 G 1.5 sq. mm cable with Yellow/Green flame-retardant with the following characteristics:

Diameter : 7.6 mm
Sheath Color : Brown
Insulation Class : 450/750V
Conductor: flexible rope of annealed red copper, class 5
Insulation Compound of PVC quality S18
Maximum tensile stress : 50 N/mm2
Minimum bending radius: 4 times the maximum outer diameter

100-meter skein.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

CPR FS18OR18 4 G 1.5 mmq 450/750V cable with G/V flame retardant hank 100 meters

€1.02

CPR FS18OR18 4 G 1.5 mmq 450/750V cable with G/V flame retardant hank 100 meters

The minimum purchase order quantity for the product is 100.

€1.02
Tax included

Items Available: 52282

: 5497

Further availability of the manufacturer

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

FS18OR18 cables belong to the AFIAM line and are marked Cca-s3,d1,a3, to indicate that they are compliant with the Construction Products Regulation (CPR) in accordance with the requirements prescribed in EN 50575:2014+A1:2016 and to indicate that they are of the non-fire-propagating type in accordance with the self-extinguishing requirements prescribed in IEC EN 50399 in whose tests heat emission, smoke production and possible dripping during the flame development test are also measured.

FS18OR18 cables are also non-flame propagating on the single vertical cable as per EN and IEC 60332-1-2 (IEC 20-35) tests. In addition, to prevent further hazards from substances emitted during combustion of plastics, FS18OR18 cables are made of special halogen-reduced compounds with amounts of hydrochloric acid, contained in the fumes emitted during combustion, less than 18%.

FS18OR18 cables belong to the ecological line called ECOGAMMA marked by the Windmill symbol. In these environmentally friendly cables, lead, a heavy metal that is dangerous to the environment and to humans if present in excessive quantities, has been eliminated.

Features:

Conductor Flexible annealed red copper cord, class 5
Insulation S18-quality PVC compound
Outer sheath R18-quality PVC compound
Sheath color Brown
Rated voltage Uo/U: 450/750 V
Maximum operating temperature: 70°C
Minimum operating temperature: -15°C (in the absence of mechanical stress)
Minimum laying temperature: 0°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 times the maximum outer diameter
Application: Suitable for fixed laying or temporary installation in places with fire hazard
For indoor use in dry or wet rooms. (ref. IEC 20-40)
