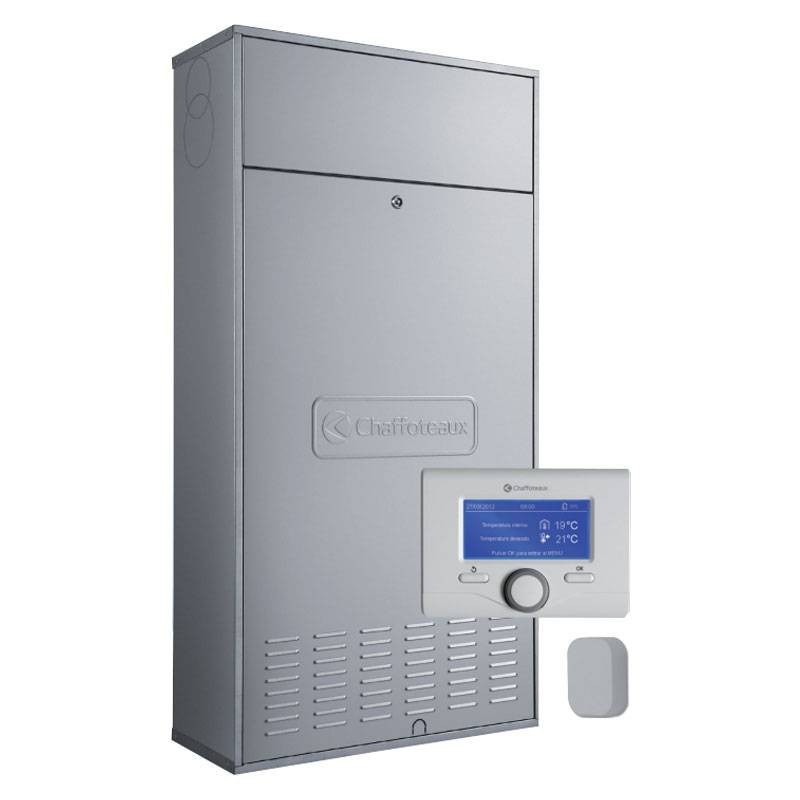

Inoa Green In is the essence of condensing technology. Thanks to the built-in sheet metal unit (to be ordered with a separate code), it is the ideal solution for reclaiming living space, while still guaranteeing practicality of use thanks to theExpert Control provided as standard. Aluminum alloy condensing exchanger

SANITARY COMFORT:

• Stainless steel sanitary exchanger
• Sanitary flow rate from 12 l/min (T= 30°C) according to EN625 standard



HEATING COMFORT:

• Efficiency up to 108% on PCI with energy savings up to 35%.
• 4-star combustion efficiency according to EN 92/42 standard
• Useful heat output up to 23.5 kW
• Modulation ratio1:4
• Low pollutant emissions, NOx Class 6
• High-efficiency circulator with continuous modulation to improve acoustic comfort and reduce energy consumption
• Basic climatic temperature control, depending on outdoor temperature
• System manager allows setting and display of operating mode, temperatures, self-diagnosis, control information, and last failure history



COMFORT OF USE AND INSTALLATION:

• On-board mechanical boiler filling
• Expert Control system manager and external probe as standard
• Universal flush-mounted unit in electro-galvanized sheet metal bath with complete arrangements for flue gas discharge and plumbing connections
• Electrical degree of protection IPX5D and guaranteed operation down to -20°C
• Prepared for the management and lintegration of only natural circulation solar thermal systems



Features:

• Installation type C13-C23-C33-C43-C53-C63-C83-C93-B23
• Gas category I2H



ENERGY PERFORMANCE:

• Max/min heating nominal heat flow rate (Hi) kW 29/6
• Nominal heat output in sanitary max/min (Hi) kW 29/6
• Max/min heating heat output (80°C-60°C) kW 28.4/5.8
• Max/min heating heating capacity (50°C-30°C) kW 30.2/6.4
• Max/min heating capacity domestic kW 28.4/5.8
• Combustion efficiency (at flue gas) 98%
• Efficiency at rated heat input (60/80°C) Hi/Hs % 97.8/88
• Efficiency at rated heat input (30/50°C) Hi/Hs % 104/93.7
• Efficiency at 30°C Hi % 108.0
• Efficiency at idle (60/80°C) Hi/Hs % 96/86.4
• Efficiency stars (dir. 92/42/EEC) 4
• Sedbuk class A rating
• Maximum heat loss at the shell (?T = 30°C) % 0.1
• Losses at chimney operating burner % 2.2



HEATING:

• Expansion tank precharge pressure bar 1
• Maximum heating pressure bar 3
• Expansion tank capacity l 6.5
• Min/max heating temperature (high temperature range) °C 35/82
• Min/max heating temperature (low temperature range) °C 20/45



Energy efficiency class for space heating A

DOMESTIC HOT WATER:

• DHW min/max temperature °C 36/60
• Specific flow rate in DHW (10 min at ?T=30°C) l/m 13.2
• Instantaneous quantity of hot water ?T=25°C l/m 16.3
• Instantaneous quantity of hot water ?T=35°C l/m 11.6
• Sanitary comfort stars (EN13203) 3
• Minimum hot water withdrawal l/m <2
• Max sanitary water pressure bar 7/0.3
• Maximum inlet temperature (solar) °C 60



Energy efficiency class for hot water production A

EMISSIONS:

• Residual head Pa 100
• NOx class 6
• Flue gas temperature G20 at 60/80 G20 °C 61
• CO2 content (G20) (80°C-60°C) % 9.4
• CO content (0%O2) (80°C-60°C) ppm 177
• O2 content (G20) (80°C-60°C) % 3.8
• Maximum flue gas flow rate (G20) (80°C-60°C) kg/h 46
• Air excess (80°C-60°C) % 22



ELECTRICAL DATA:

• Power supply voltage/frequency V/Hz 230/50
• Total electrical power consumption W 77
• Minimum ambient operating temperature* °C -15
• Electrical system degree of protection IP X5D

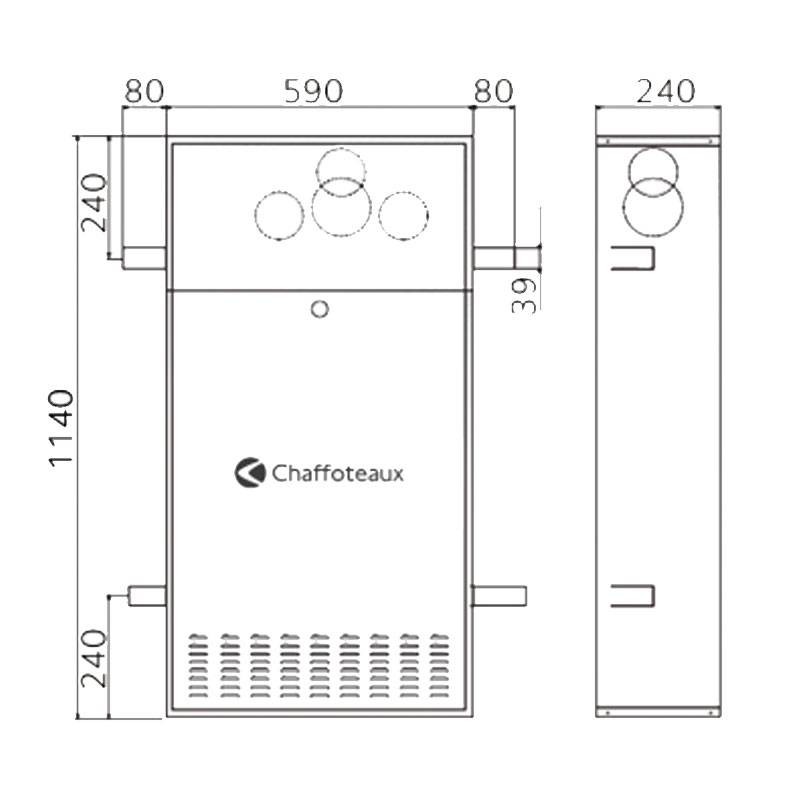

DIMENSIONS:

• Width 590 mm - Height 1140 mm - Depth 240 mm
• Weight 27 kg



FITTINGS:

• Plant delivery ø 3/4 gas
• Hot sanitary outlet ø 1/2 gas
• Gas inlet ø 3/4 gas
• Sanitary cold inlet ø 3/4 gas
• System return ø 3/4 gas
• Hot sanitary inlet for solar integration ø 1/2 gas (with mixing valve kit 3318408-3318484)
• Sanitary cold inlet for solar integration ø 1/2 gas (with mixing valve kit 3318408-3318484)
