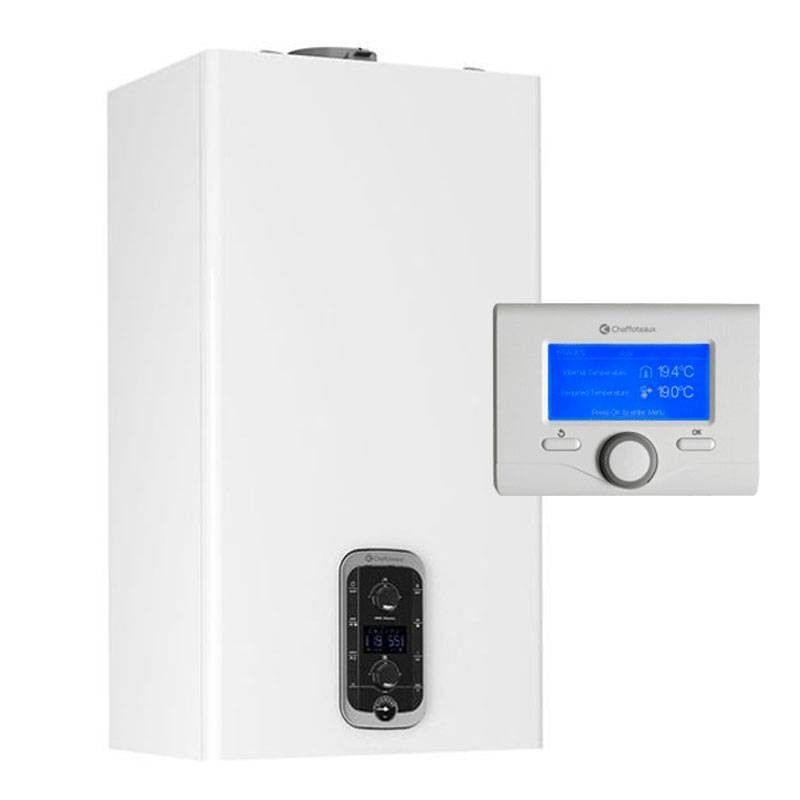

Chaffoteaux URBIA ADVANCE LINK 35kW MET/LPG/AP Condensation Boiler 3310611


CFF 3310611 8056860778100

Chaffoteaux URBIA ADVANCE LINK Condensation Boiler:

  • Heating/sanitary heating capacity 35kW
  • Natural gas/LPG/Propane air operation without the need for a kit
  • XXL withdrawal profile
  • Heating energy class A
  • Sanitary energy class A
  • Integrated 4-liter micro storage tank


Integrated standard accessories:

  • Gateway connectivity Electronic combustion control and integrated Chaffolink connectivity at your smartphone's fingertips

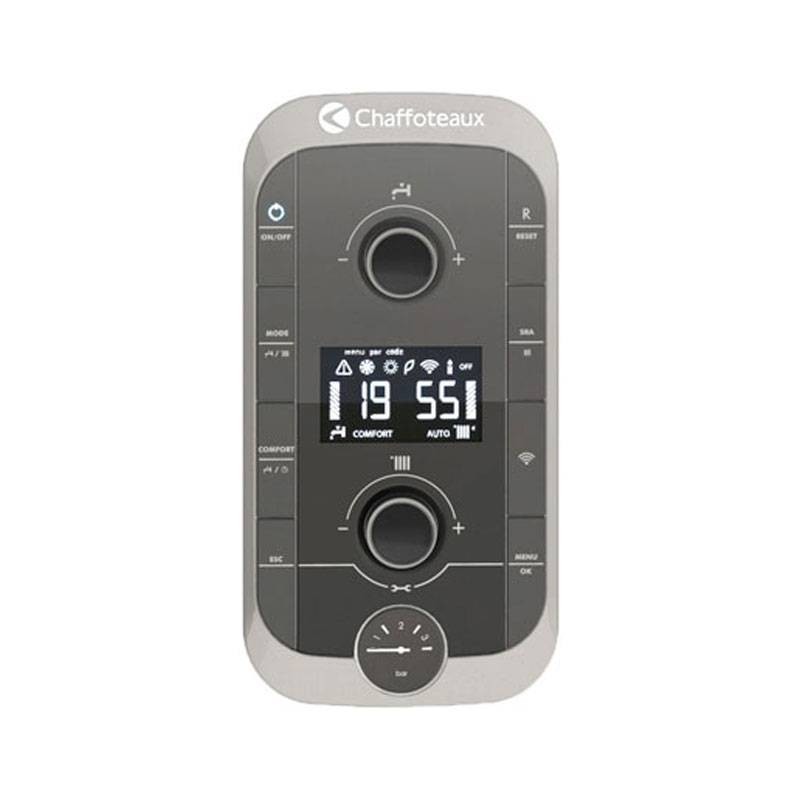

  • Expert Control system manager.
  • tagav
  • Do you have questions about this product or did you not find what you were looking for? Ask us!
    Chaffoteaux URBIA ADVANCE LINK 35kW MET/LPG/AP Condensation Boiler 3310611
    €1,695.68
    €1,695.68

    €1,695.68
    Tax included

    €1,695.68

    Buy it within and receive it from Monday, 24 March
    Two-year warranty
    Easy return within 14 days

    MAXIMUM SPIN TECH PERFORMANCE:

    • New single loop stainless steel primary exchanger
    • Passage sections increased by 142% over previous version
    • 1 m more head
    • 94% seasonal efficiency
    • Class A+ achievable with thermoregulation
    • Performance certified by TÜV RHEINLAND Group

    MAXIMUM COMFORT:

    • 1:10 modulation ratio
    • Electronic combustion control E-Burning System
    • SRA function
    • Gas conversion from the technical menu without the need for a kit
    • Chaffolink connectivity integrated in boiler
    • Outdoor temperature from the internet thanks to integrated connectivity

    SANITARY COMFORT:

    • Integrated 316L stainless steel 4-liter mini storage tank
    • Domestic water performance, maximum level provided by EN 13203 standard
    • Flow rate from 16.0 to 20.1 l/min at T = 25ºC
    • DHW production controlled by a modulating pump to meet needs without waiting time and at constant temperature, even when withdrawals are very low
    • DHW programmer to control time slots for heating the storage tank

    EASE OF INSTALLATION:

    • Installation in partially protected locations
    • Flue exhausts 80, 60, 50 mm
    • Intuitive electrical connections

    ENERGY SAVING AND ENVIRONMENTALLY FRIENDLY

    • Up to 25% energy savings by combining Expert Control and the SRA function
    • Up to 35% energy savings by combining Expert Control, SRA function, outdoor probe and radiant floor
    • Reduced pollutant emissions, NOx Class 6

    Features:

    • CE certified (pin) 0085CS0461
    • Connection type C13(X)-C23-C33(X)-C43(X)-C53(X)-C63(X) C83(X)-C93(X) B23-B23P-B33

    ENERGY PERFORMANCE:

    • Max/min rated heat flow rate in heating (Hi) Q 31 / 3.5 kW
    • Max/min rated heat flow rate in heating (Hs) Q 34.4 / 3.9 kW
    • Max/min nominal heat flow rate in DHW (Hi) Q 34.5 / 3.5 kW
    • Max/min rated heat flow in DHW (Hs) Q 38.3 / 3.9 kW
    • Max/min heating output (80°C-60°C) P 30.2 / 3.3 kW
    • Max/min heating output (50°C-30°C) P 33.1 / 3.7 kW
    • Max/min DHW output P 33.1 / 3.4 kW
    • Combustion efficiency (at flue gas) 97.9%
    • Efficiency at rated heat input (60/80°C) Hi/Hs 97.5 / 87.8%
    • Efficiency at rated heat input (30/50°C) Hi/Hs 106.9 / 96.3%
    • Efficiency at 30 % of Qn with return at 30°C Hi/Hs 109.7 / 98.7%
    • Efficiency at idle (60/80°C) Hi/Hs 93.3 / 84%
    • Efficiency stars (dir. 92/42/EEC) ****
    • Losses at chimney operating burner 2.1%

    EMISSIONS:

    • Residual evacuation head 100 Pa
    • NOx class 6
    • Flue gas temperature (G20) (80°C-60°C) 62 C°
    • CO2 content (G20) (80°C-60°C) 8.8%
    • CO content (0%O2) (80°C-60°C) 111 ppm
    • O2 content (G20) (80°C-60°C) 4.3%
    • Maximum flue gas flow rate (G20) (80°C-60°C) 56.3 kg/h
    • Excess air (80°C-60°C) 26%
    • Condensate pH 3.2 pH
    • Max amount of condensate 3.7 l/h


    HEATING CIRCUIT:

    • Expansion tank precharge pressure bar 1
    • Maximum heating pressure bar 3
    • Expansion tank capacity l 8
    • Min/max heating temperature (high temperature range) °C 35 / 82
    • Min/max heating temperature (low temperature range) °C 20 / 45

    DHW CIRCUIT:

    • DHW min/max temperature °C 40 / 65
    • Specific DHW flow rate (10 min at T=30°C 16.7 l/min
    • Instantaneous quantity of hot water ?T=25°C 20.1 l/min
    • Instantaneous quantity of hot water ?T=35°C 14.3 l/min
    • Sanitary comfort stars (EN13203) ***
    • Minimum hot water withdrawal 2 l/min
    • DHW pressure max/min 7.0 / 0.2 bar
    • DHW storage capacity 4 liters

    ELECTRICAL ENVIRONMENTAL DATA:

    • Supply voltage/frequency V/Hz 230 / 50
    • Total electrical power consumption 89.9 W
    • Energy efficiency index of circulator EEI 0.23
    • Minimum ambient operating temperature <0
    • Electrical system degree of protection IP X5D
    • Weight 43 kg

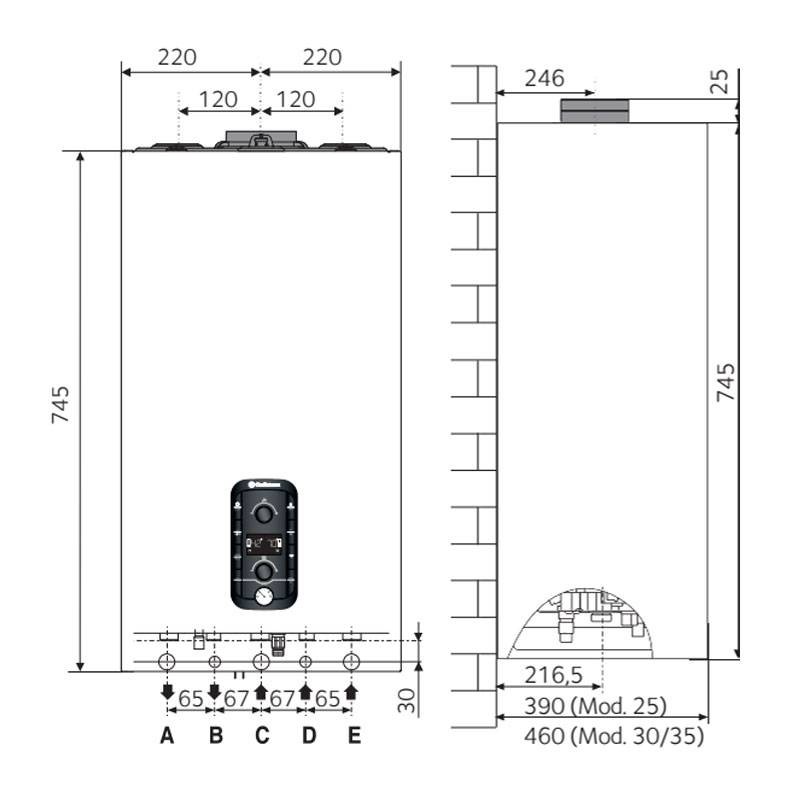

    HYDRAULIC CONNECTIONS:

    • Plant delivery Ø 3/4 gas
    • Sanitary outlet Ø 1/2 gas
    • Gas inlet Ø 3/4 gas
    • Sanitary inlet Ø 1/2 gas
    • System return Ø 3/4 gas

    Data sheet

    Type:
    Boilers
    Model:
    Natural gas/LPG/Propane
    Thermal power:
    35 kW
    Energy class:
    A
    Series:
    Urbia Advance Link
